Connector Views

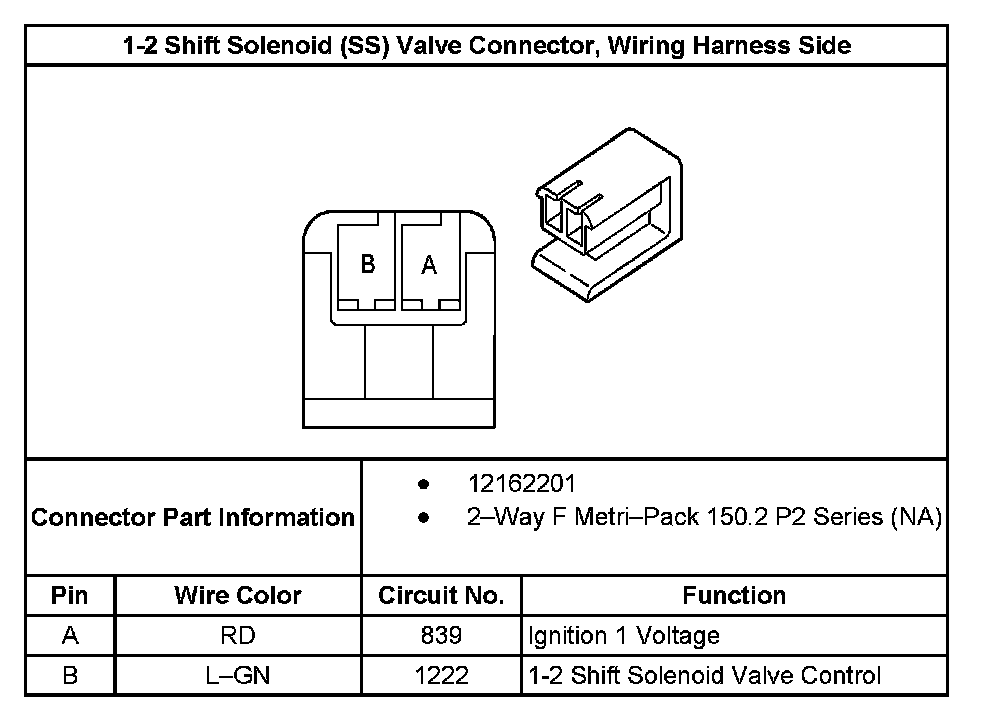

1-2 Shift Solenoid Valve Connector, Wiring Harness Side:

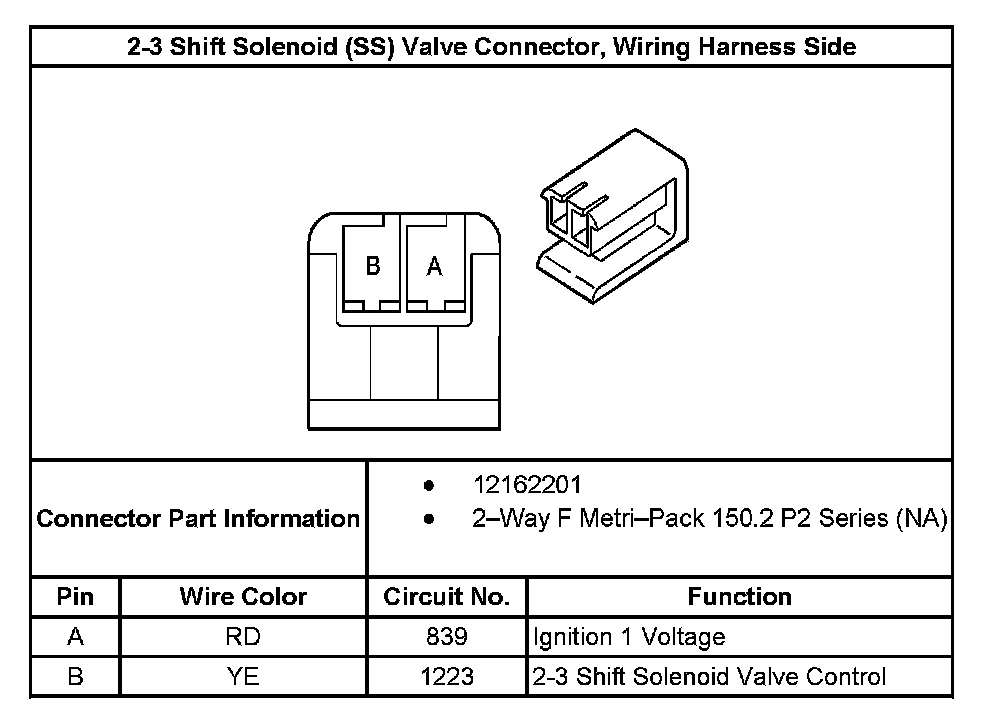

2-3 Shift Solenoid Valve Connector, Wiring Harness Side:

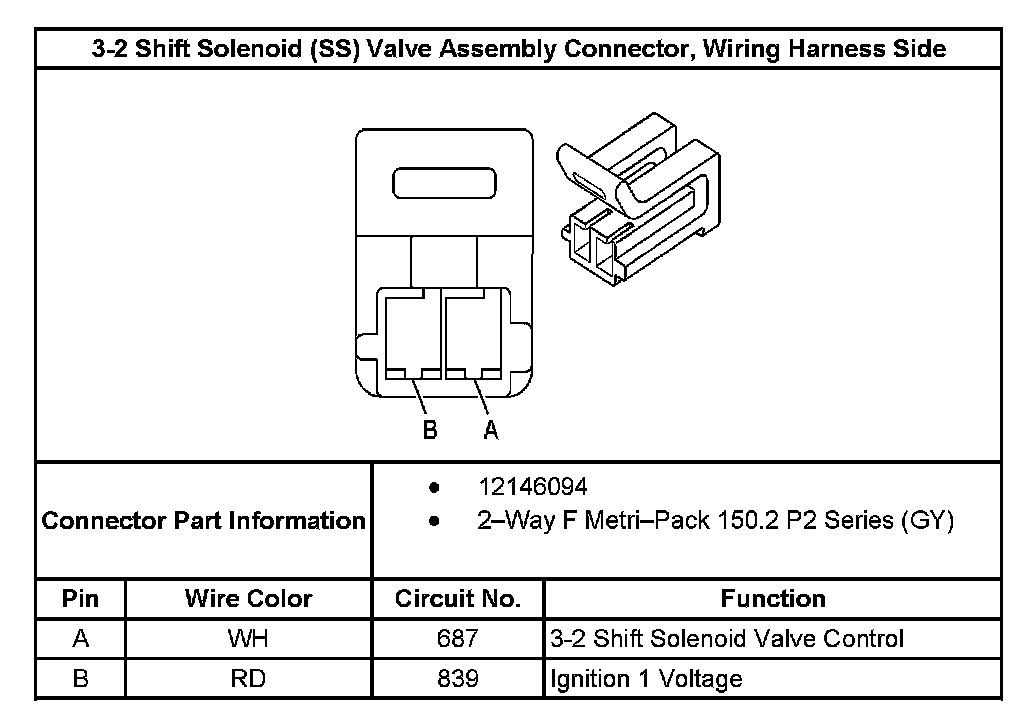

3-2 Shift Solenoid Valve Connector, Wiring Harness Side:
