Pressure Regulating Solenoid: Diagrams

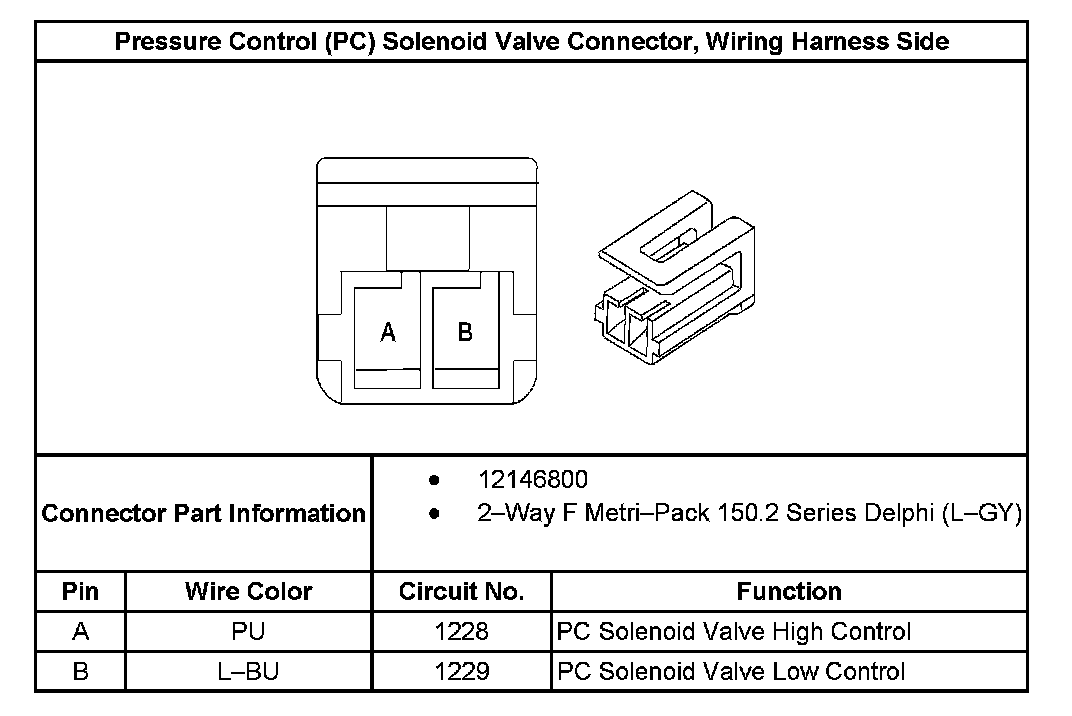

Pressure Control Solenoid Valve Connector, Wiring Harness Side:
