Fuel System - SES Lamp ON/DTC's P0442/P0455 Set
Bulletin No.: 05-06-04-055Date: September 02, 2005
TECHNICAL
Subject:
Service Engine Soon (SES) Light On, Diagnostic Trouble Code(s) (DTC) P0442 Small Evaporative Emissions (EVAP) Leak and/or P0455 Large EVAP Leak (Reposition Fuel Filler Housing Seal)
Models:
2006 HUMMER H3
Condition
Some customers may comment that the SES light is on.
Diagnosis with a scan tool may reveal a P0442 and/or a P0455 EVAP Leak DTC.
Cause
The seal between the filler housing and the fuel filler tube may be restricting the fuel cap from sealing correctly.
Correction
1. Remove the fuel cap.

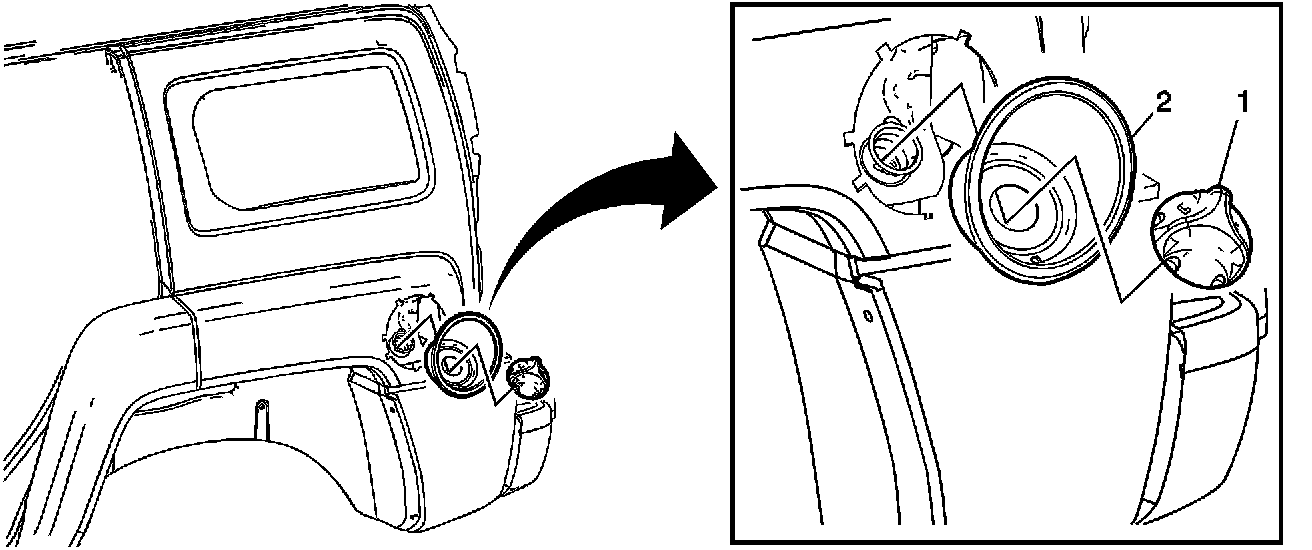

2. Inspect the seal located in the filler housing (2). The seal should be flush with the filler and evenly spaced around the filler tube.
^ If the seal IS properly installed and P0442 and/or P0455 is present, refer to:
- DTC P0442 - SI Document ID# 1471797
- DTC P0455 - SI Document ID# 1471833
^ If the seal IS NOT correctly positioned, continue with the next step.
3. Reposition the fuel filler housing seal using an appropriate flat bladed tool.
4. Clear the DTC(s) with a scan tool.
Warranty Information
For vehicles repaired under warranty, use the table.
