Hummer
>>
2006
>>
H3 L5-3.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Monitors, Trips, Drive Cycles and Readiness Codes
>>
System DTC Table
System DTC Table

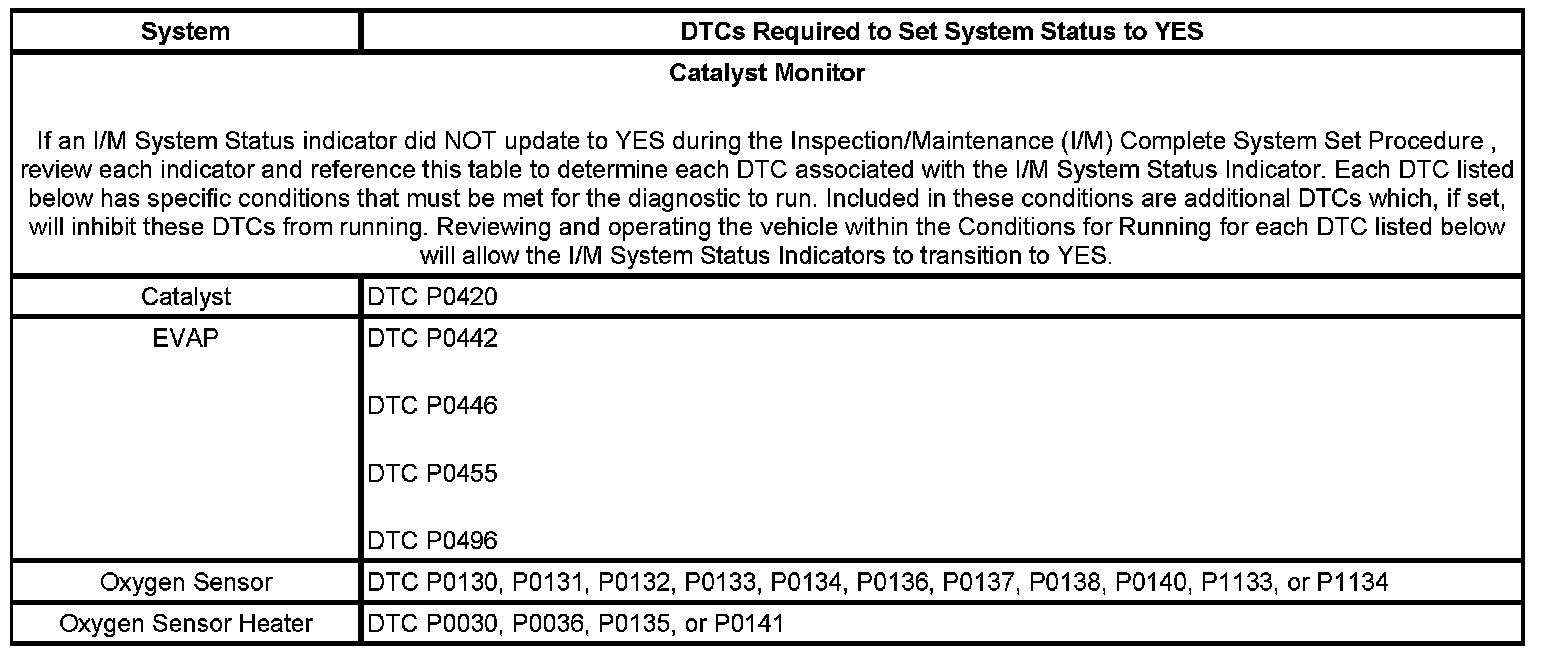

Inspection / Maintenance (I/M) System DTC Table:
