Turn Signal Lamp: Diagrams

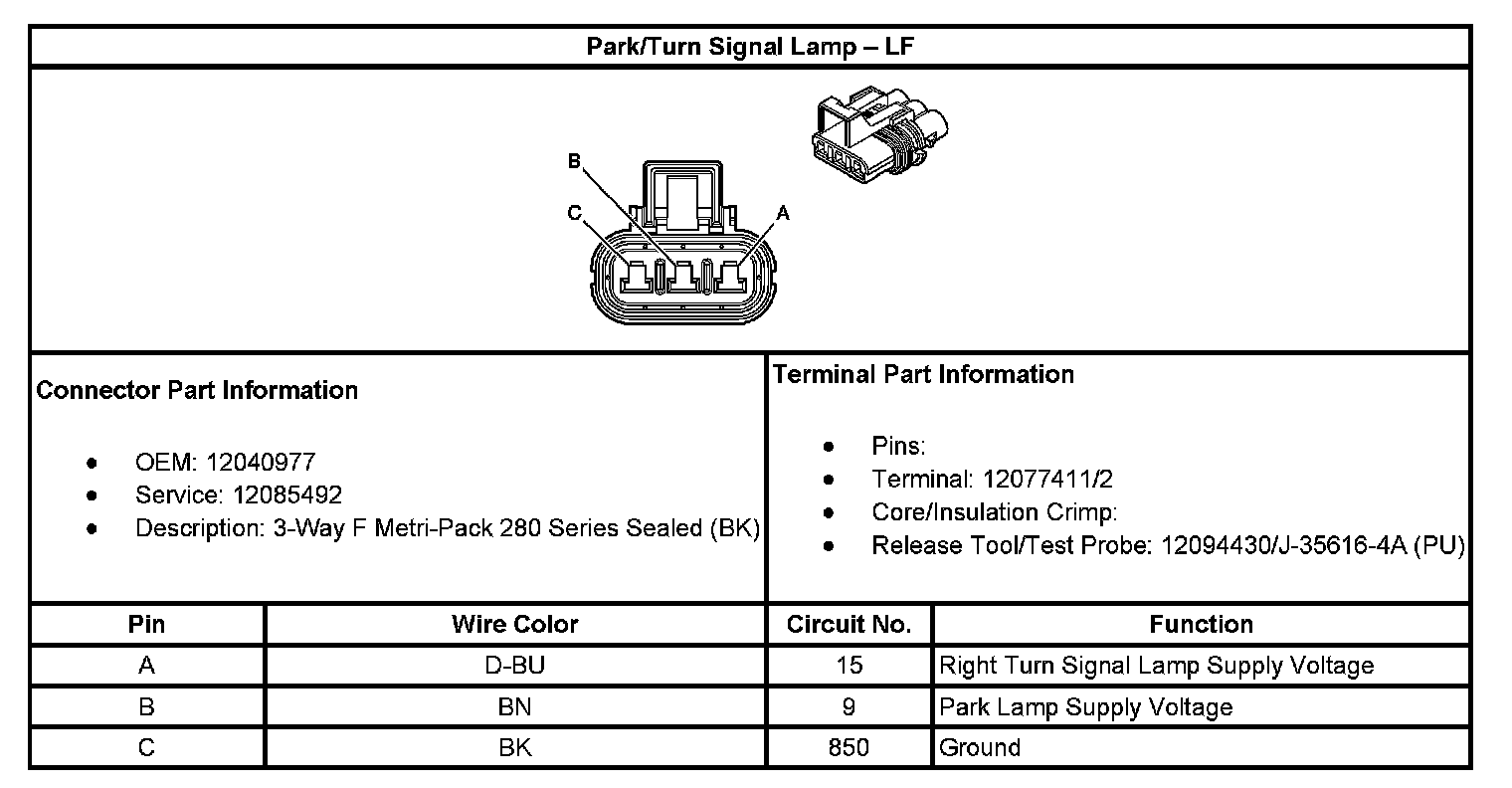

Park/Turn Signal Lamp - LF:

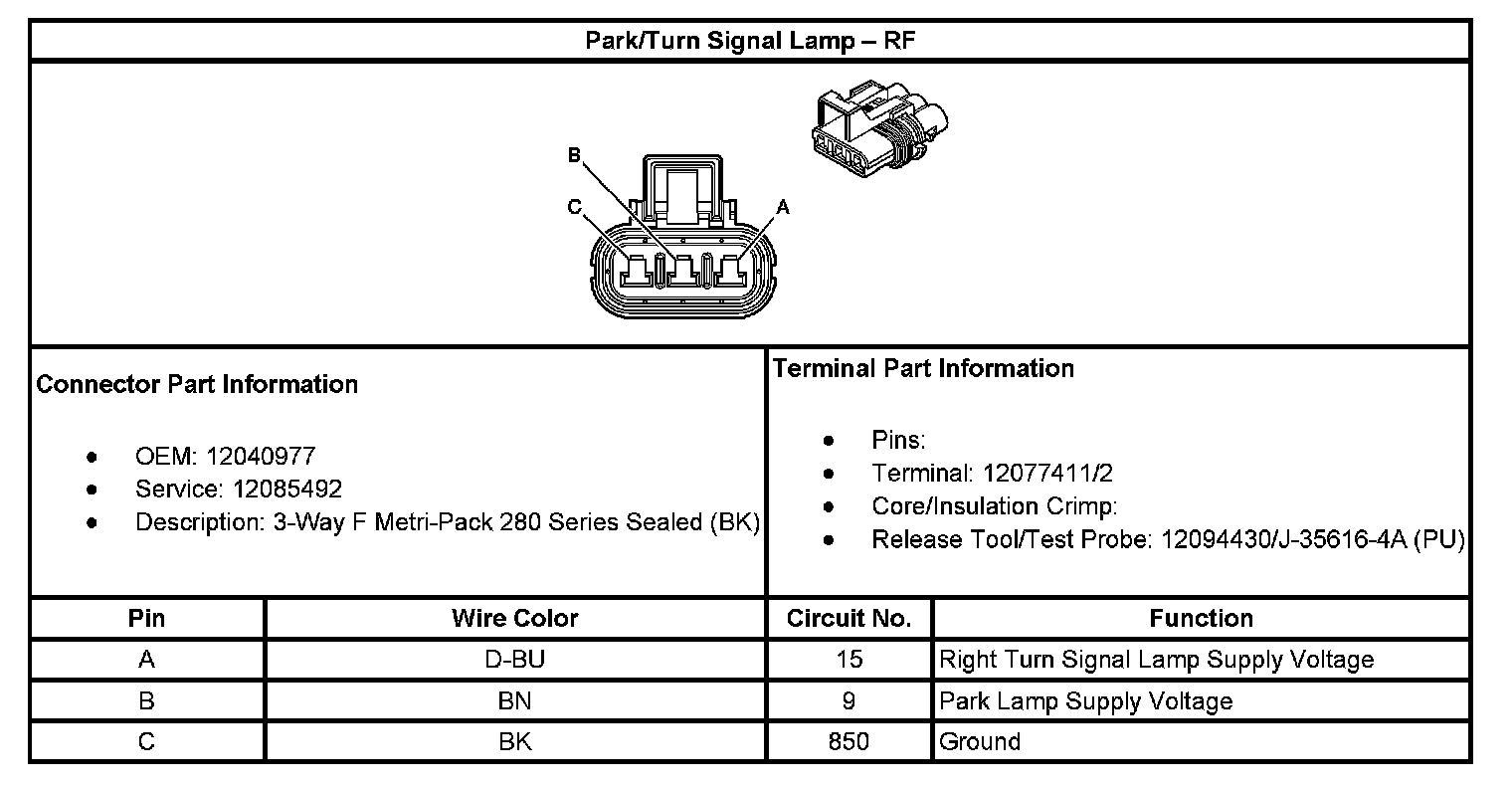

Park/Turn Signal Lamp - RF:
Tail/Stop And Turn Signal Lamp - Left:
Tail/Stop And Turn Signal Lamp - Right:
