Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Door >> Air Door Actuator / Motor >> Service and Repair >> Air Temperature Actuator Replacement - Left

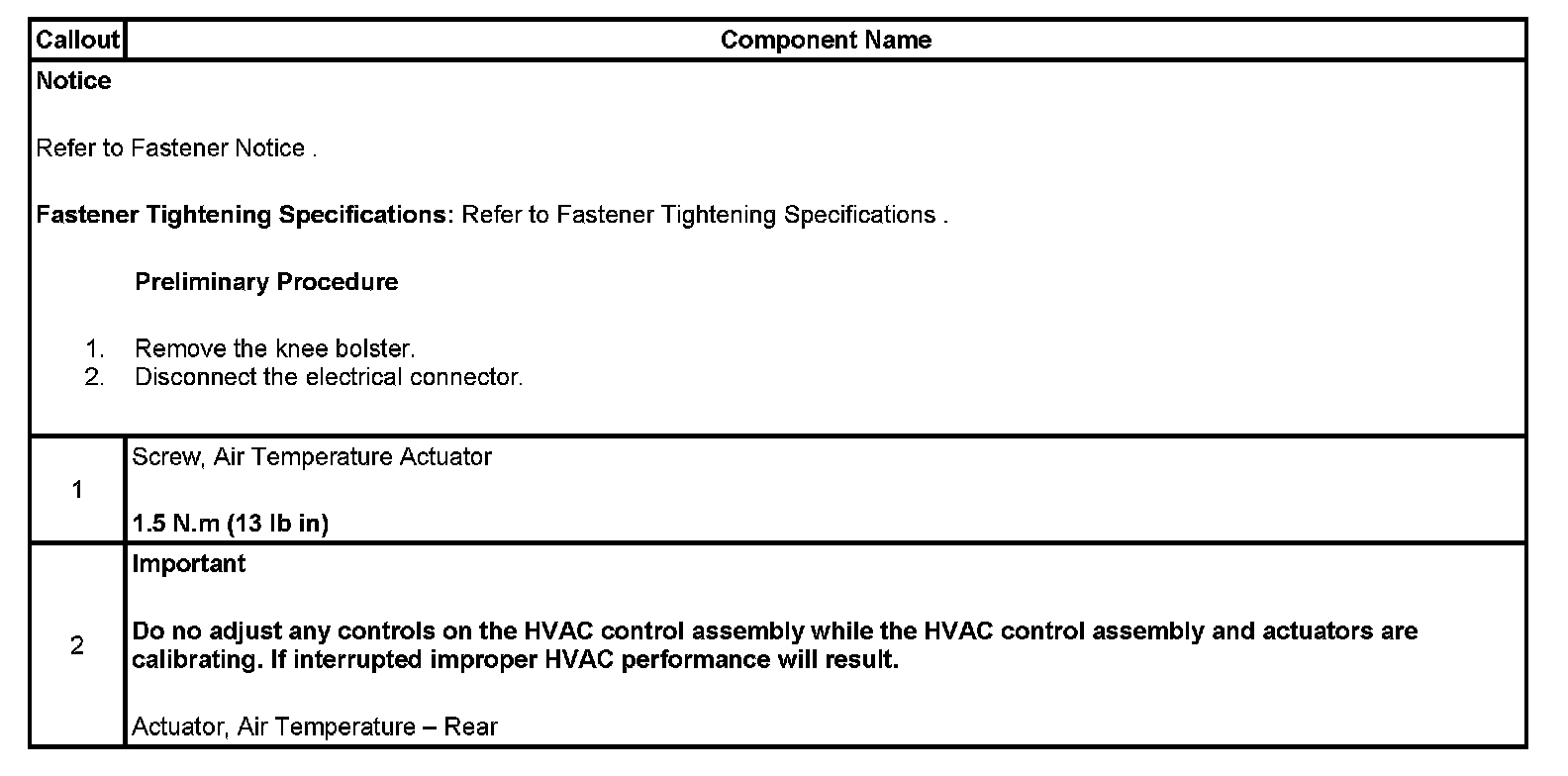

Air Temperature Actuator Replacement - Left



AIR TEMPERATURE ACTUATOR REPLACEMENT - LEFT
