Oil Pressure Regulator Valve: Service and Repair

Oil Filter Bypass Valve Replacement
Removal Procedure





1. Remove the oil filter.

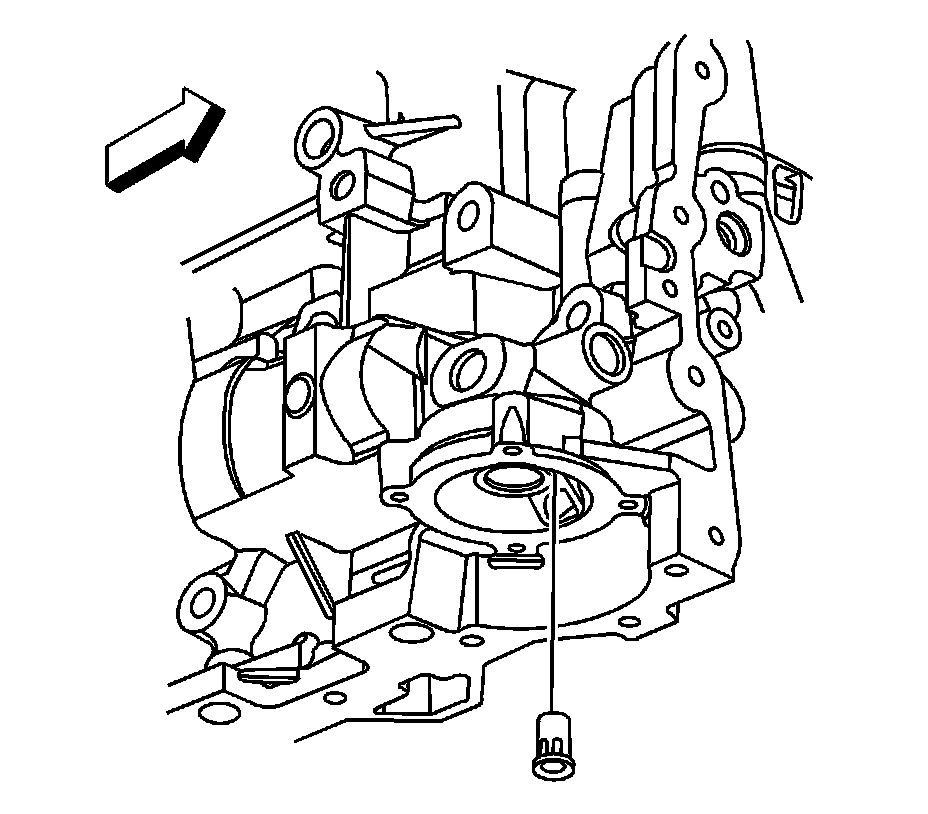

2. Using a suitable tool, pry the oil filter bypass valve from the engine block. Discard the oil filter bypass valve.

Installation Procedure





1. Press the NEW oil filter bypass valve into the engine block.
2. Install the oil filter.
