Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Diagrams >> Harness >> Sunroof and Mobile Telephone Views

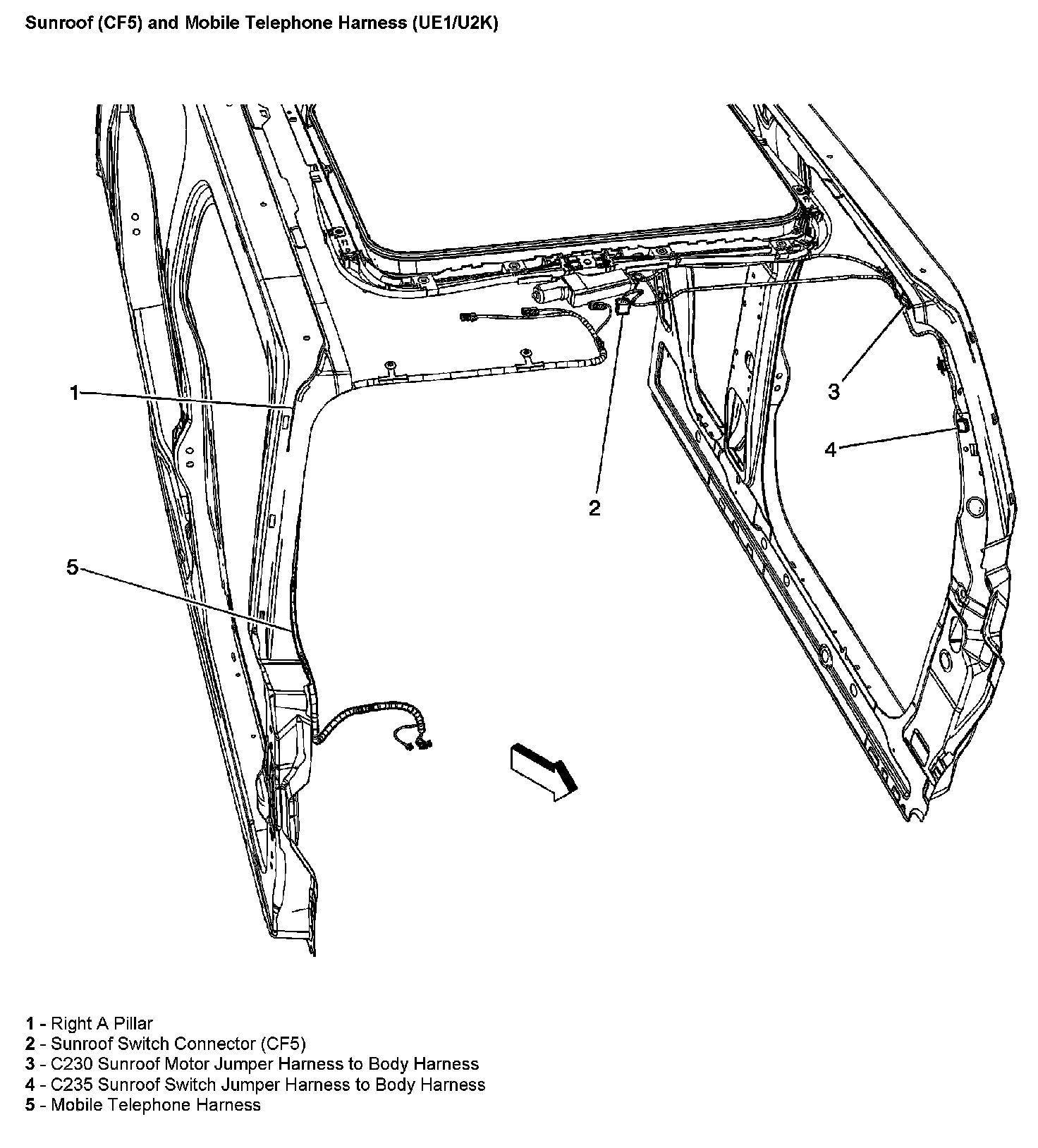

Sunroof and Mobile Telephone Views

Sunroof(With RPO Code CF5) And Mobile Telephone Harness (With RPO Code UE1/U2K):
