Engine Harness - Rear

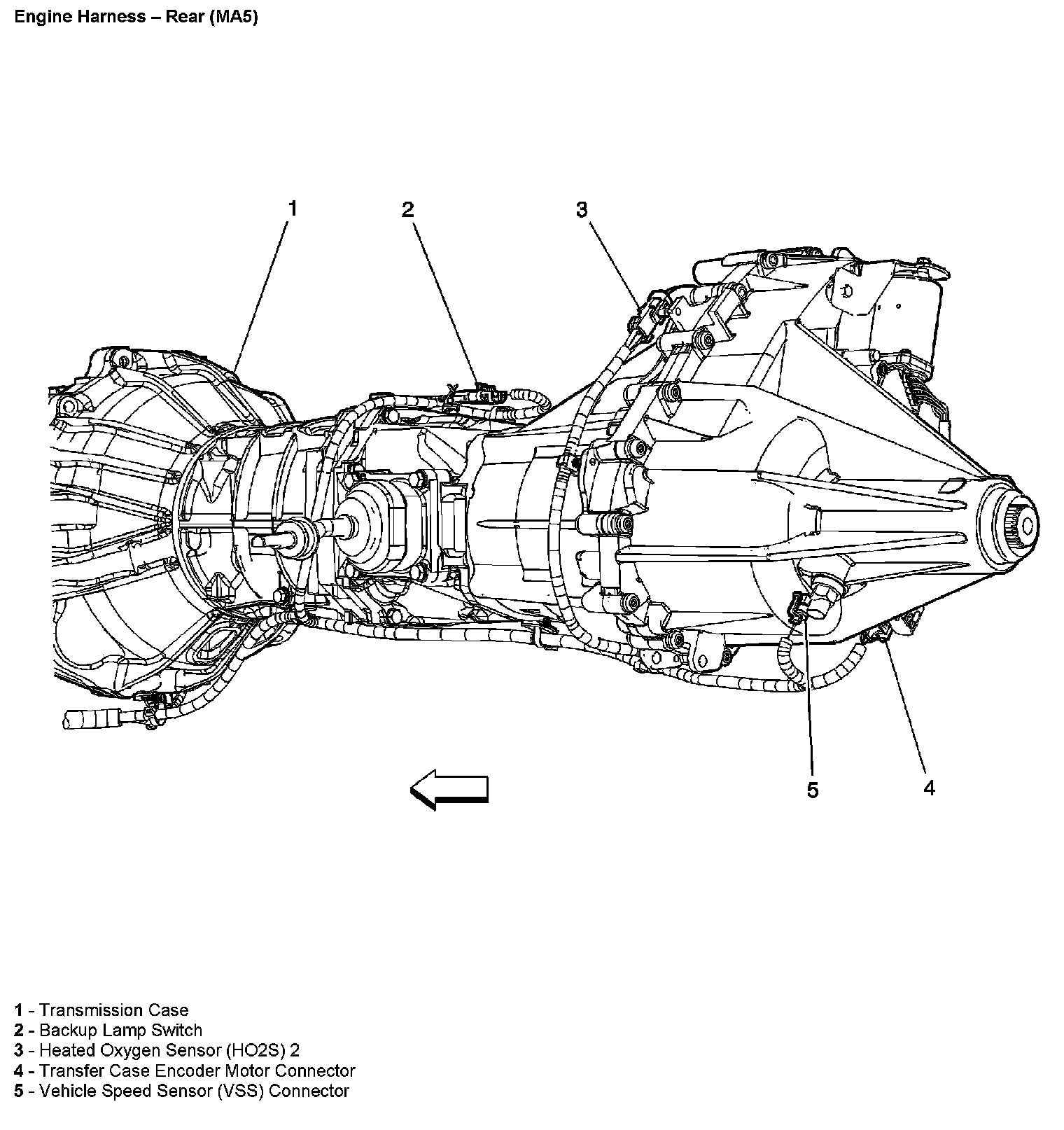

Engine Harness - Rear(With RPO Code MA5):

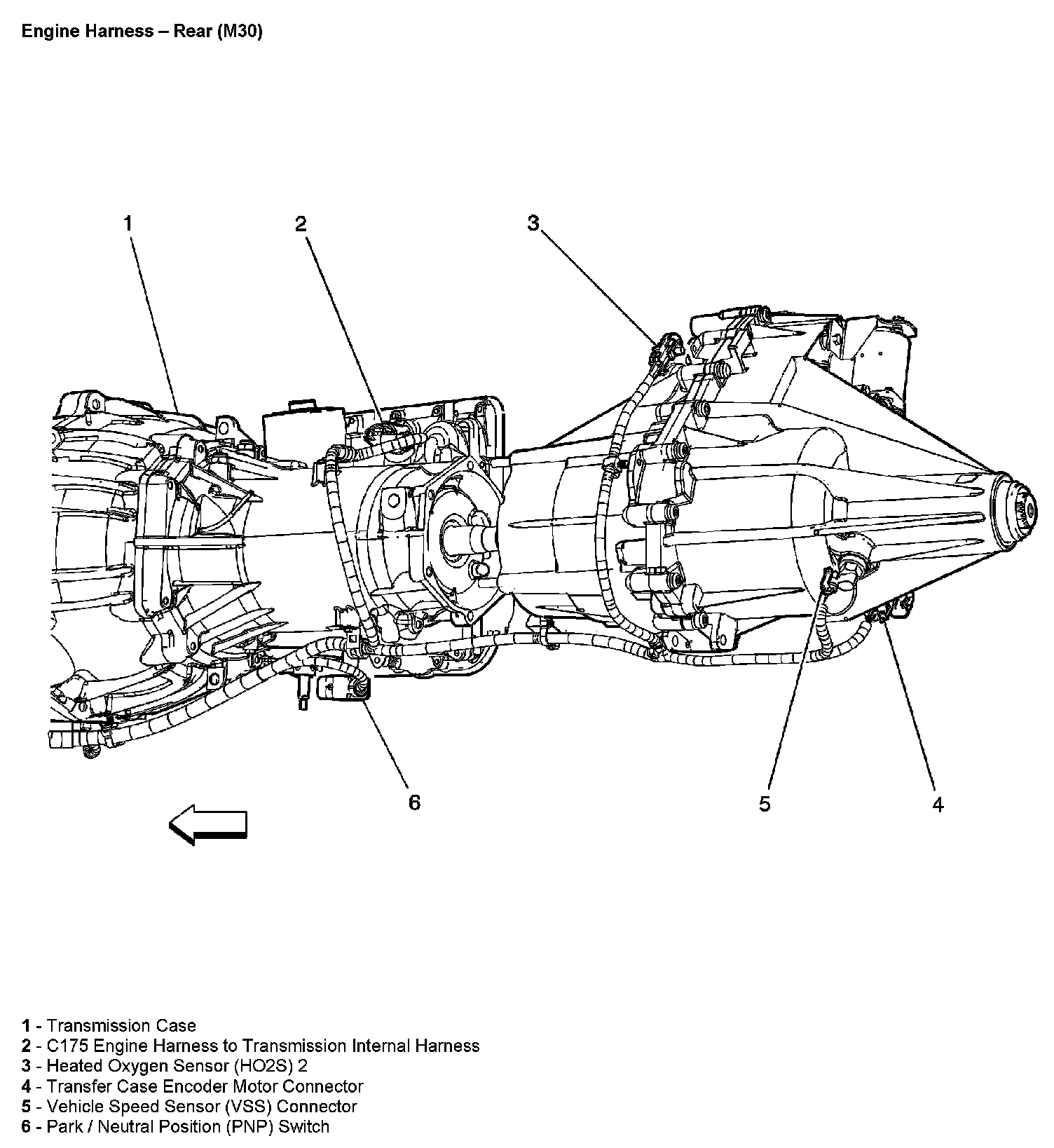

Engine Harness - Rear(With RPO Code M30):
