Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Diagrams >> Harness >> Body Views >> Body Harness - LF Passenger

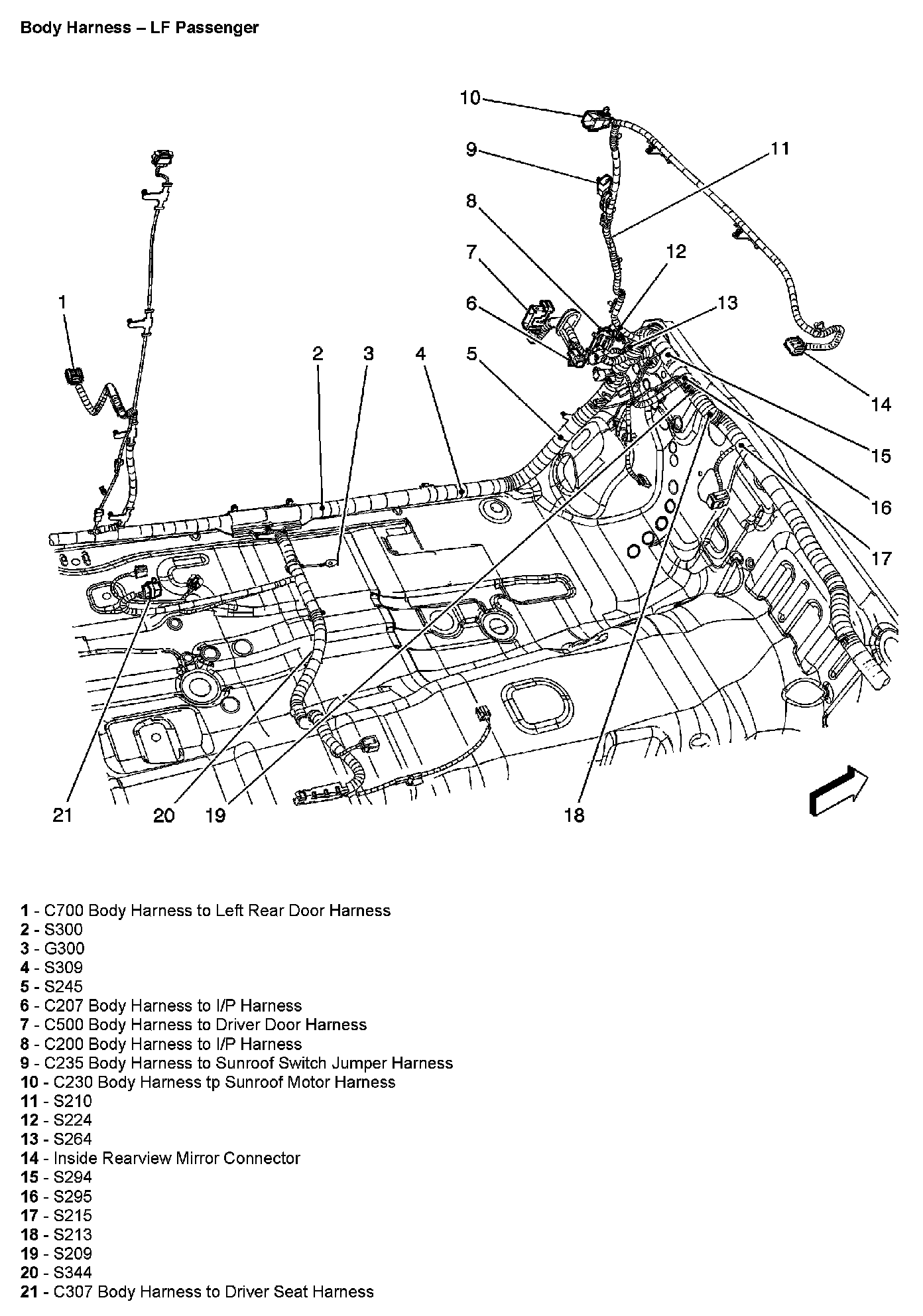

Body Harness - LF Passenger

Body Harness - I/P Passenger:
