Transfer Case

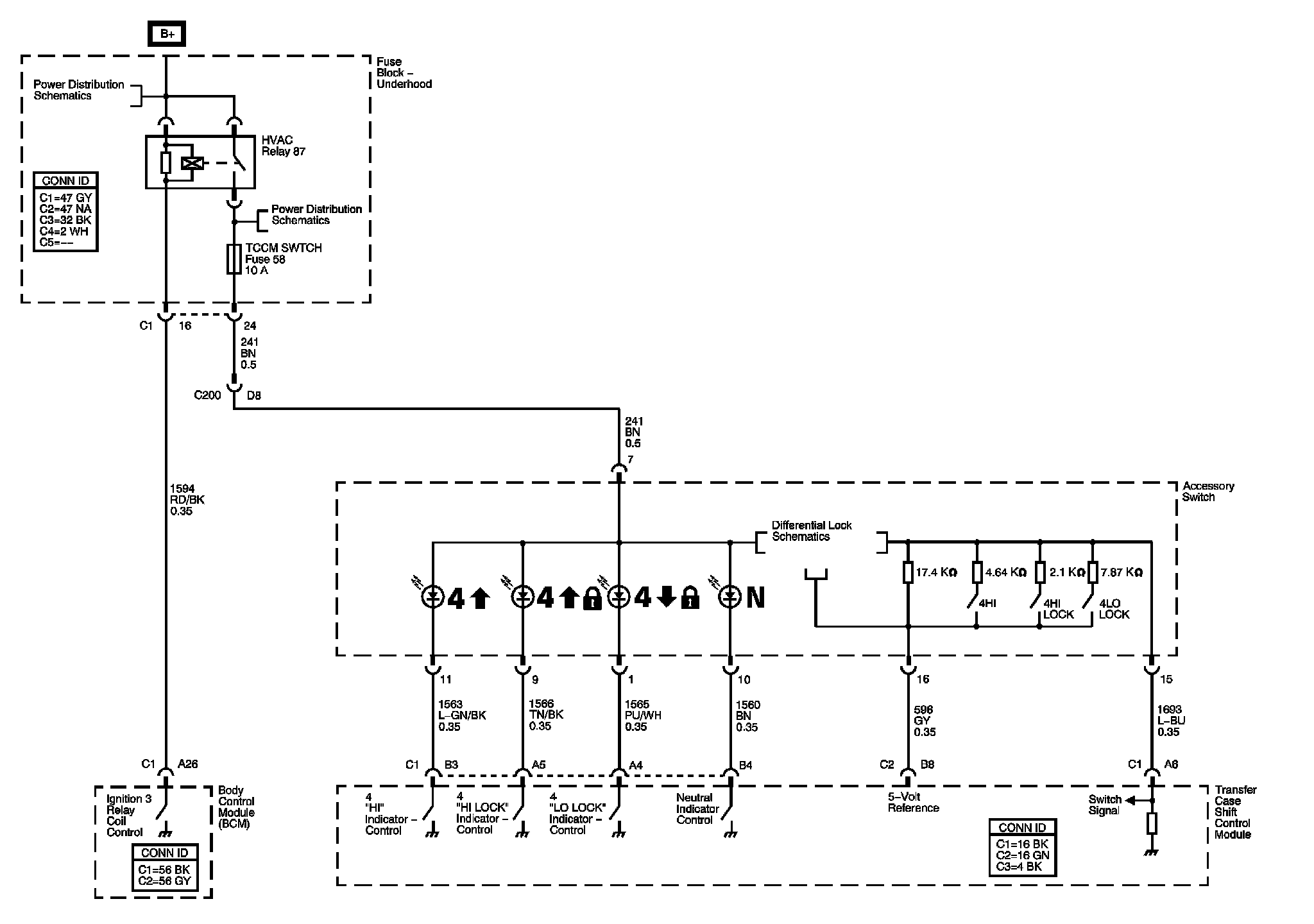

Transfer Case Control Diagrams

Transfer Case Control Diagrams:

Transfer Case Control Diagrams:

Locations: The locations for the Connectors, Ground, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
