Radio/Audio System Diagrams

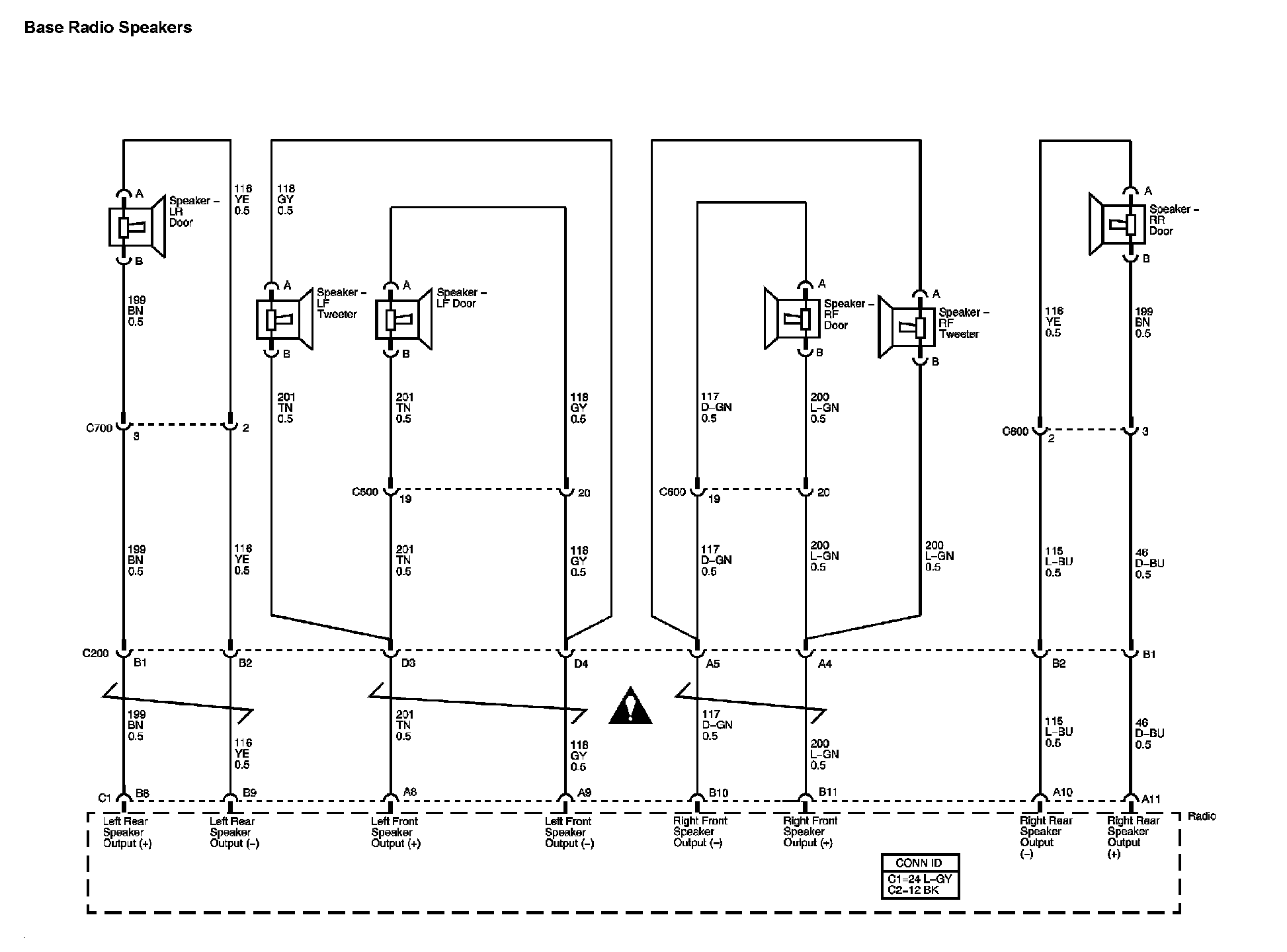

Radio/Audio System Diagram 1:

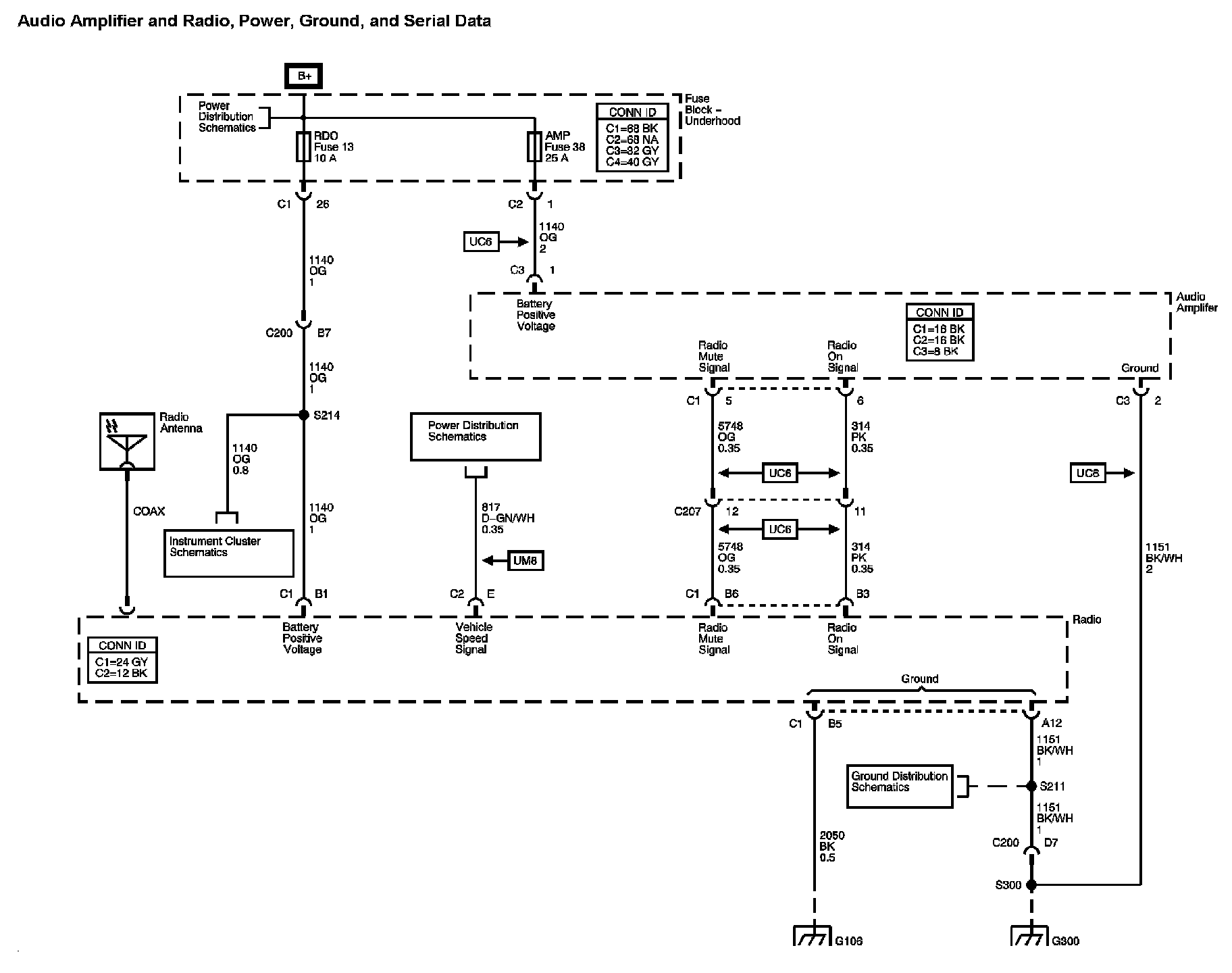

Radio/Audio System Diagram 2:

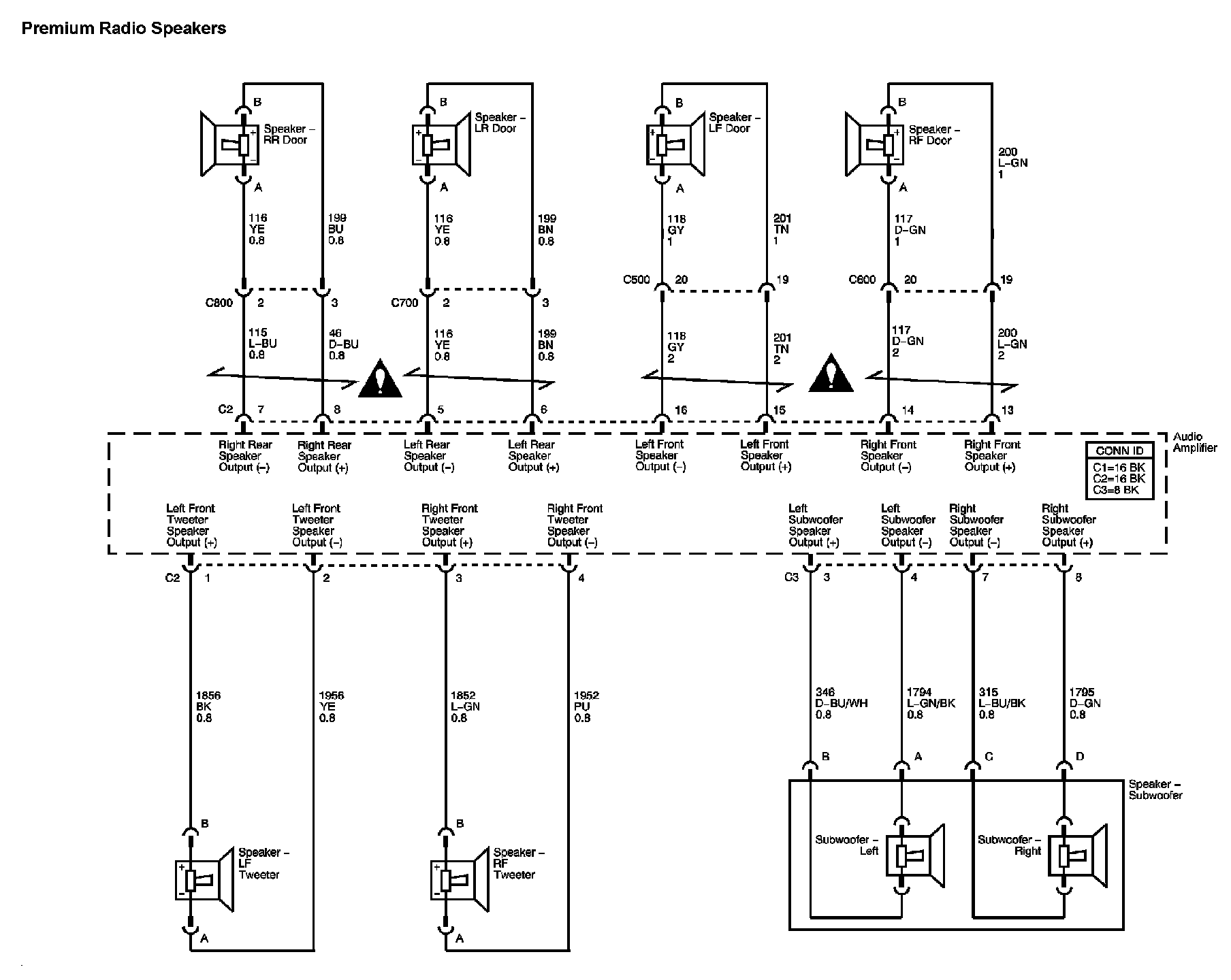

Radio/Audio System Diagram 3:

Radio/Audio System Diagram 4:

Location: The location for the connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
