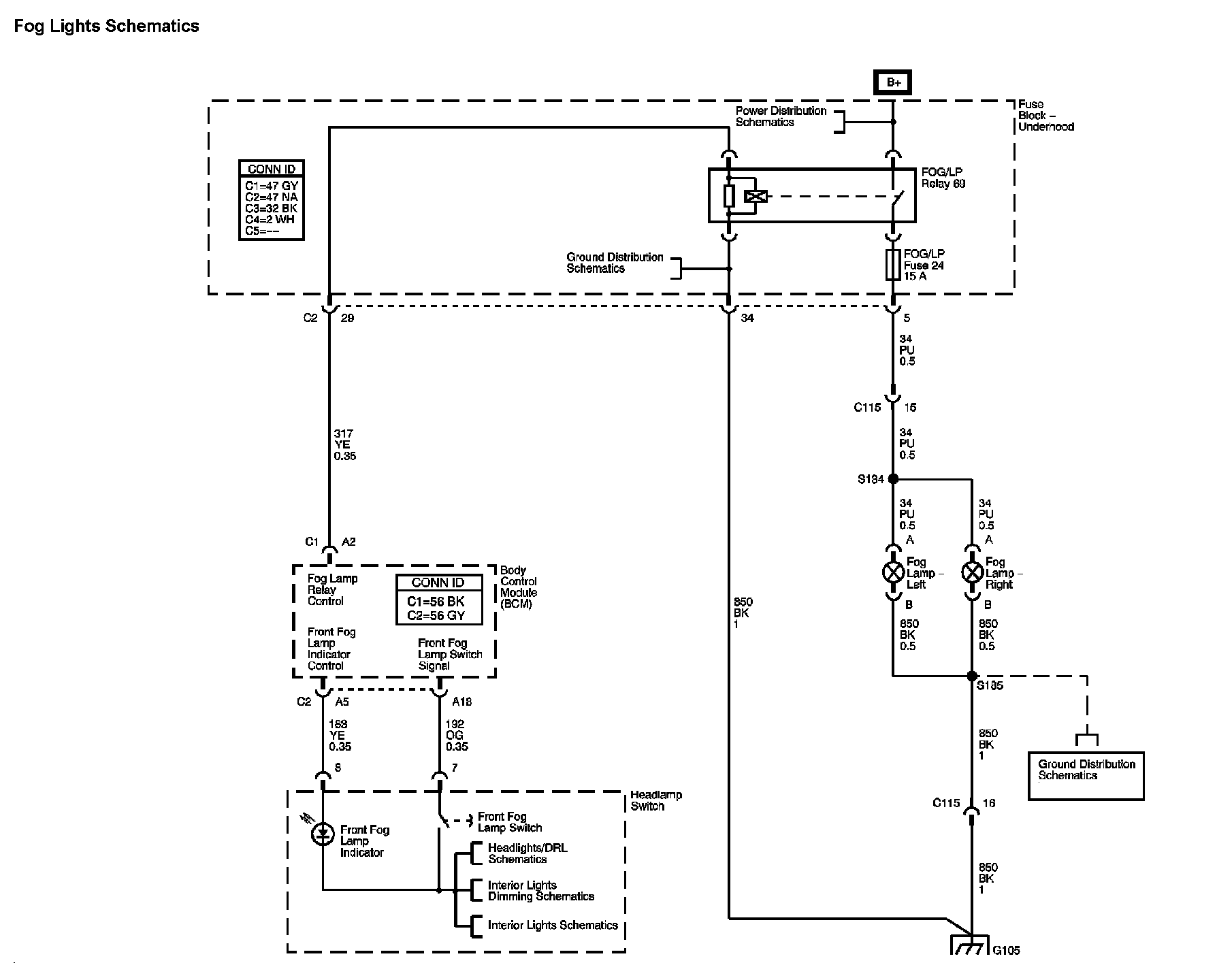

Fog Lights Diagram

Fog Lights Diagram:

Locations: The locations for the Connectors, Grounds, Splices, and Grommet shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
