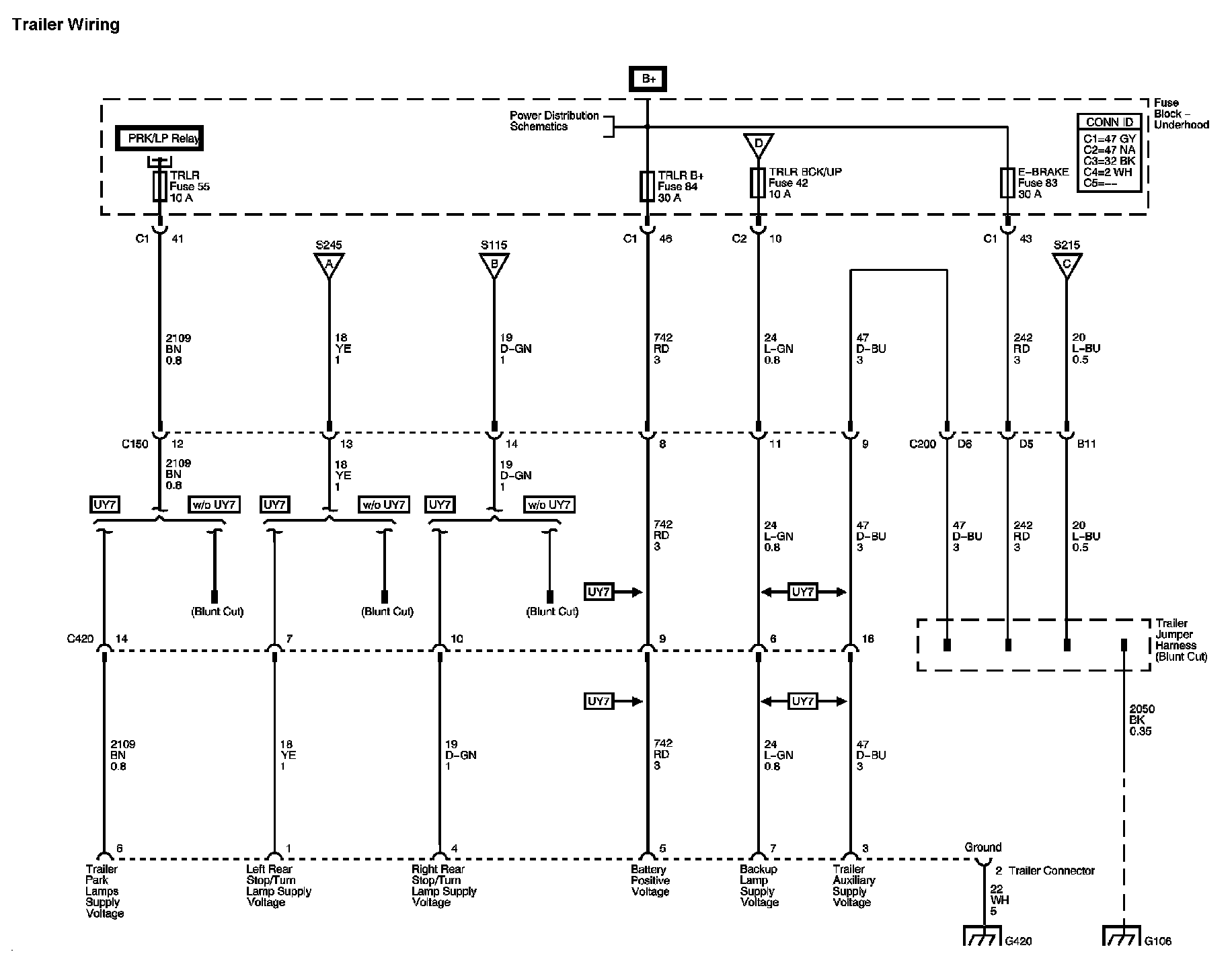

Exterior Lights Diagram 6

Exterior Lights Diagram 6:

previous Diagram: Exterior Lights Diagram 5

Locations: The locations for the Connectors, Grounds, Splices, and Grommet shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
