Hummer
>>
2006
>>
H3 L5-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Connectors By Number
>>
C700 - C799
C700 - C799

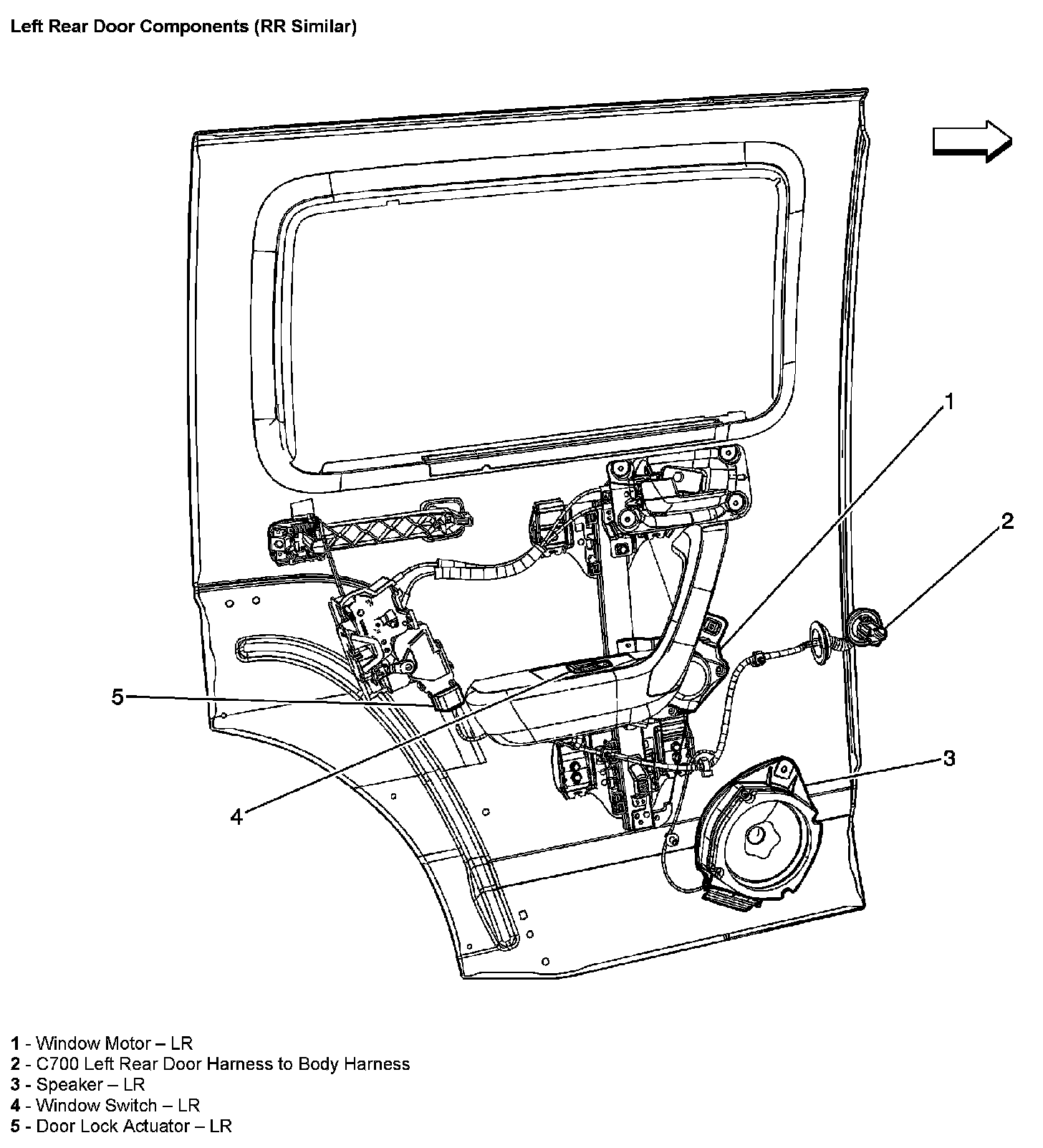

Left Rear Door Components (RR Similar):
