Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> Speaker - RR Door

Speaker - RR Door

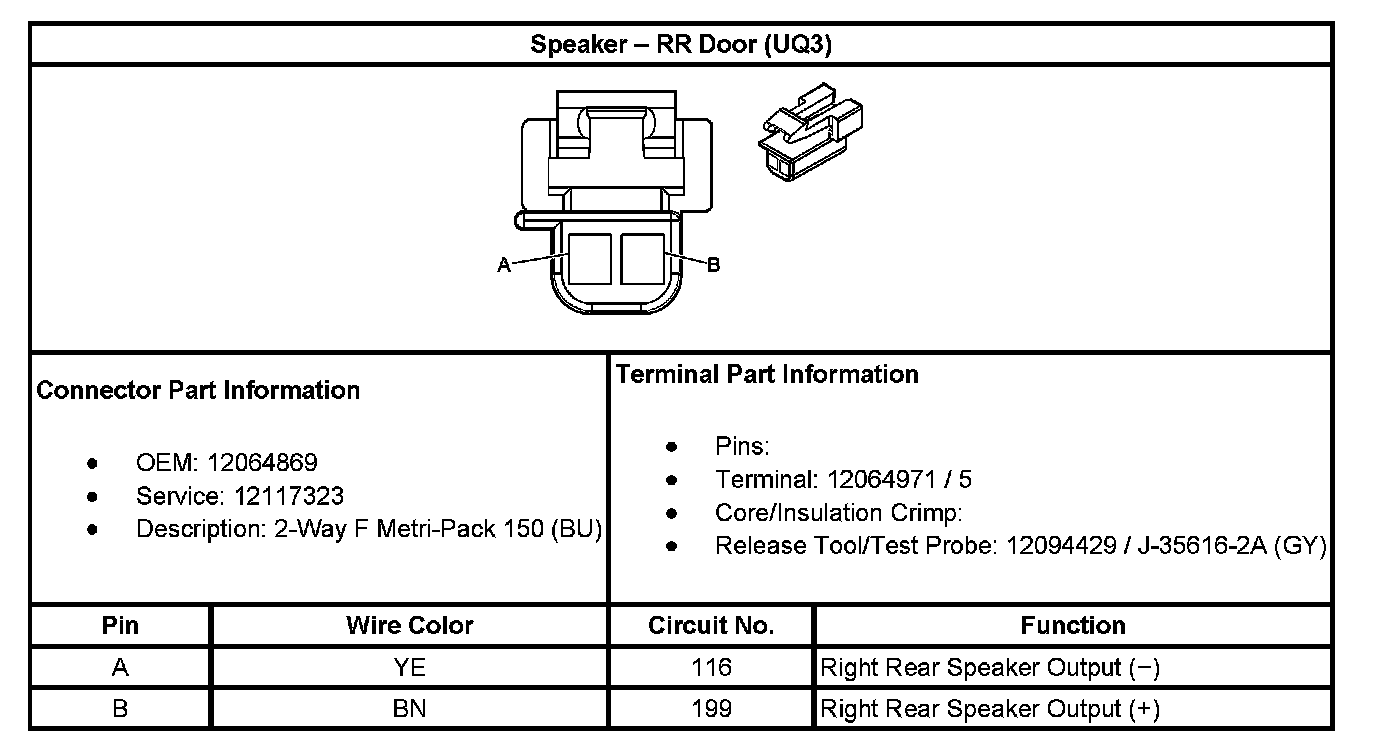

Speaker - RR Door (With RPO Code UQ3):



Speaker - RR Door (With RPO Code UQA):
