Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> Speaker - RF Tweeter

Speaker - RF Tweeter

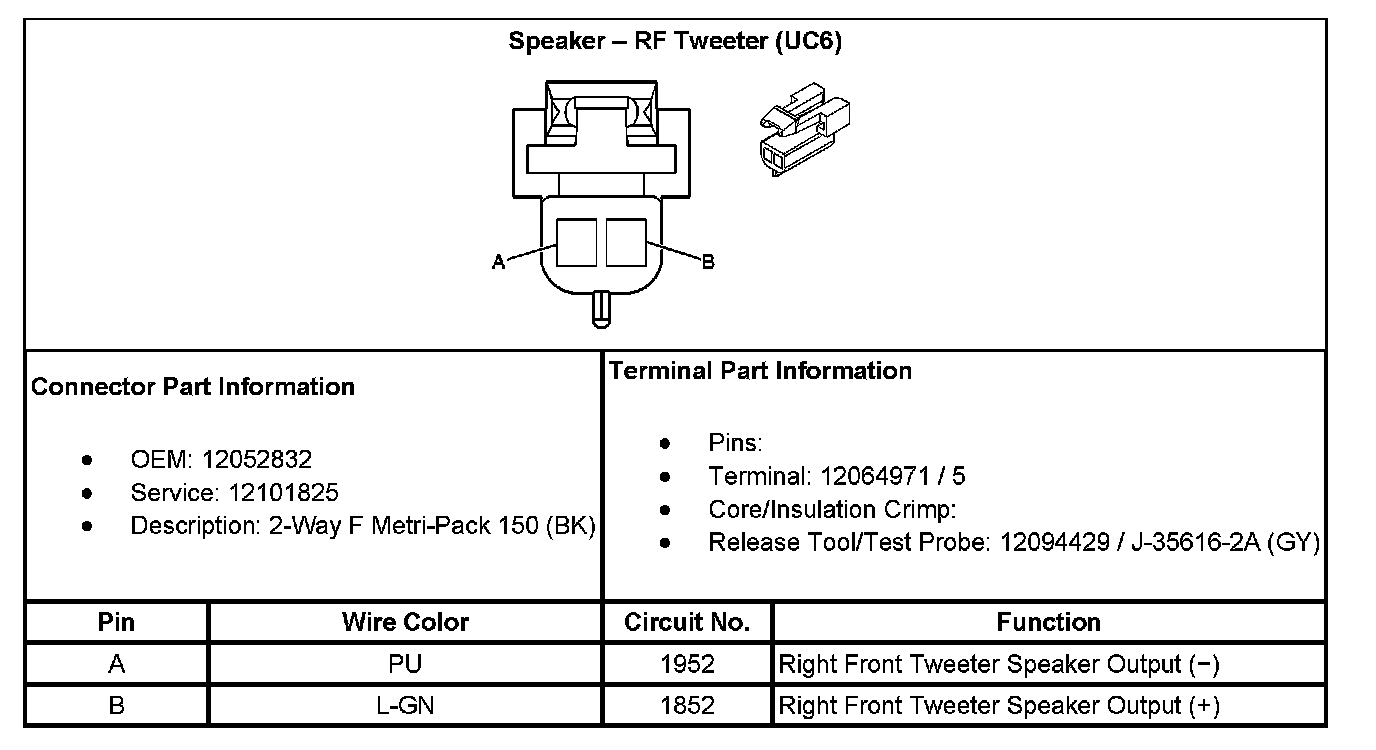

Speaker - RF Tweeter (With RPO Code UC6):

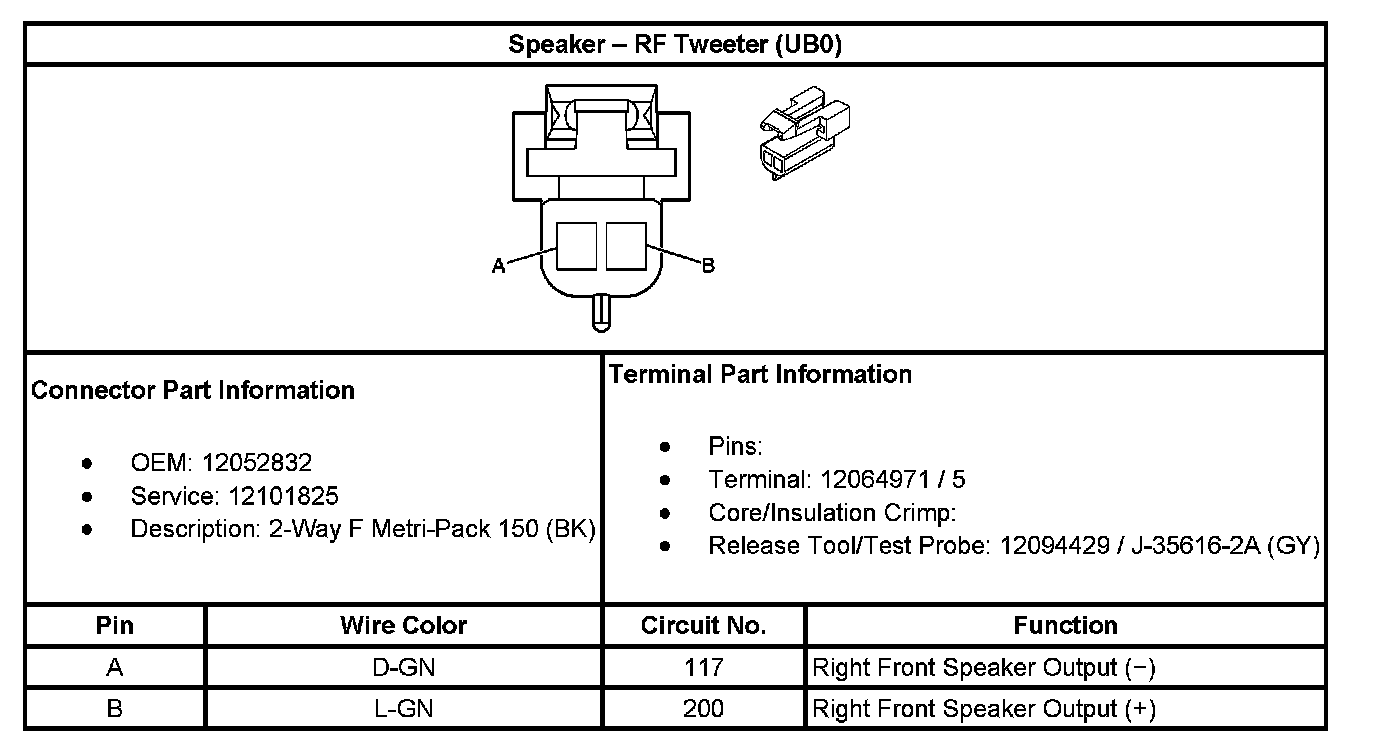

Speaker - RF Tweeter (With RPO Code UB0):
