Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> Speaker - LR Door

Speaker - LR Door

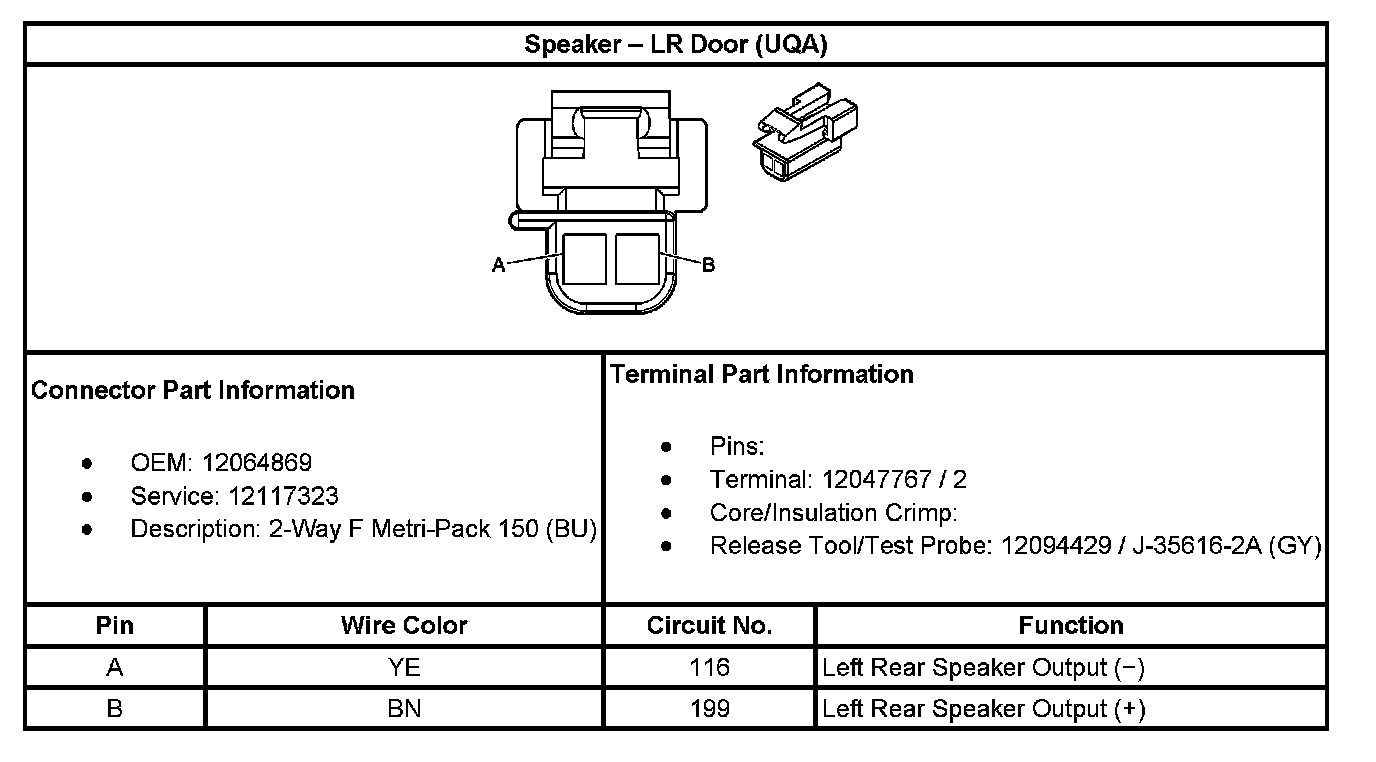

Speaker - LR Door (With RPO Code UQA):



Speaker - LR Door (With RPO Code UQ3):
