Home
>>
Hummer
>>
2006
>>
H3 L5-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Global Positioning System Module
Global Positioning System Module

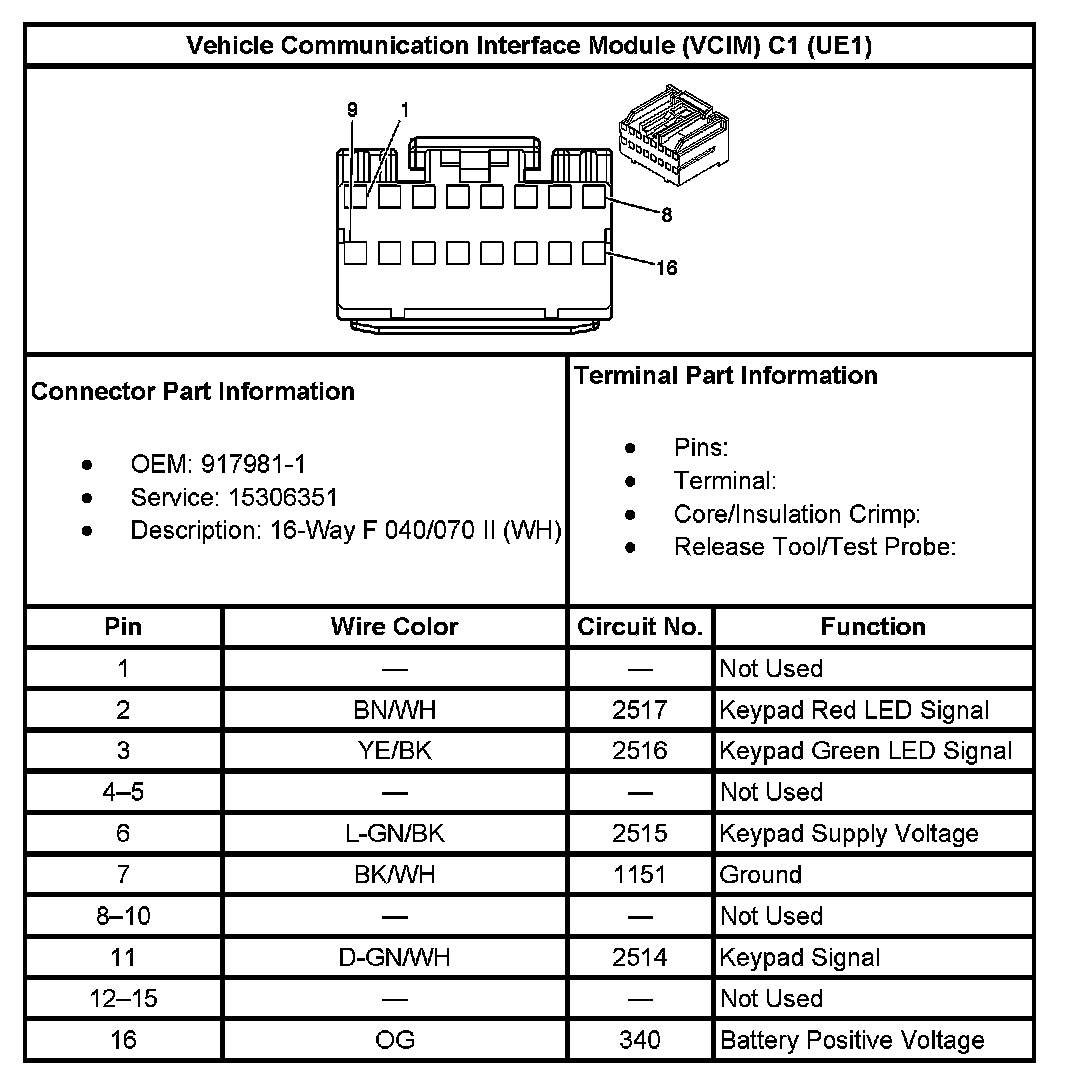

Vehicle Communication Interface Module (VCIM) C1 (With RPO Code UE1):

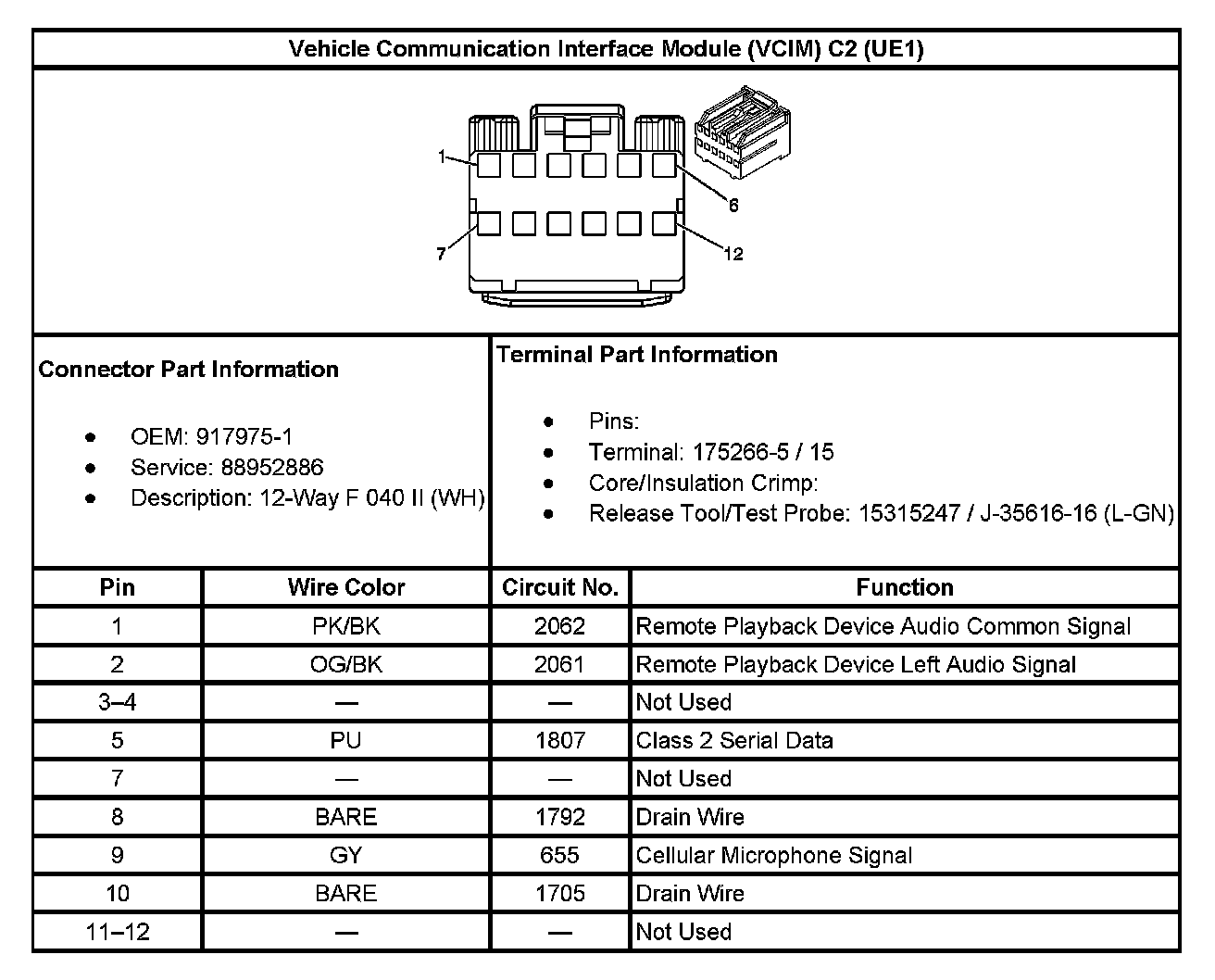

Vehicle Communication Interface Module (VCIM) C2 (With RPO Code UE1):
