Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fog/Driving Lamp

Fog/Driving Lamp

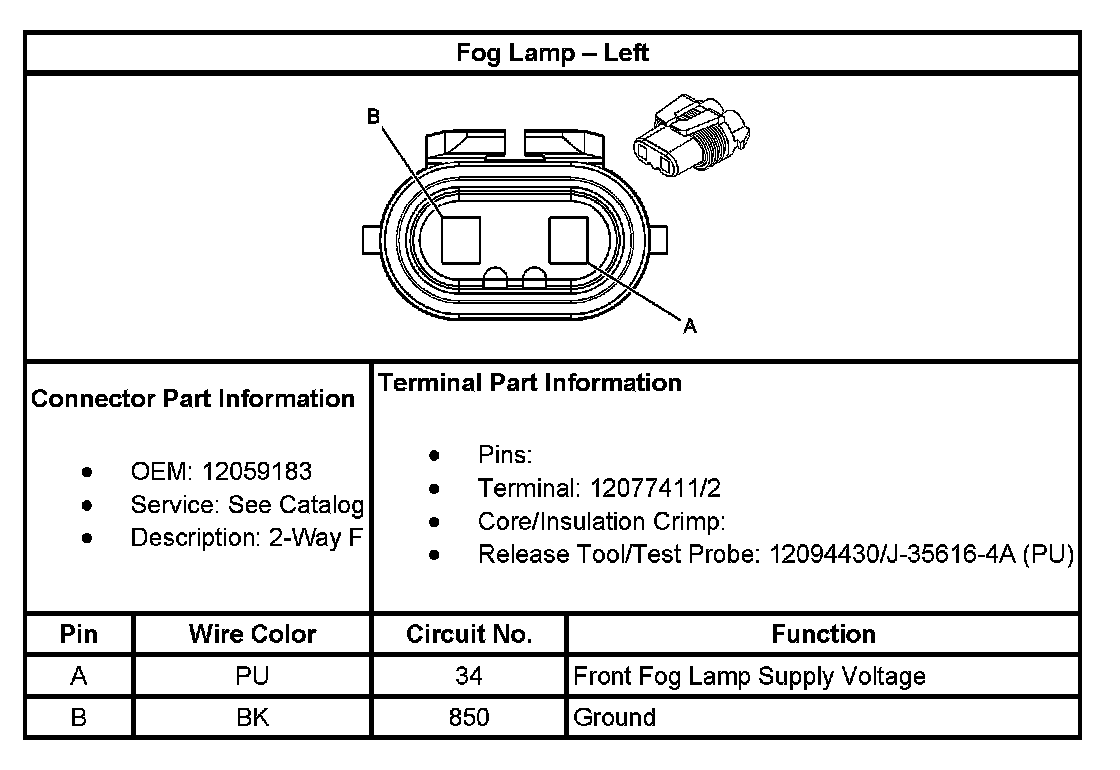

Fog Lamp - Left:

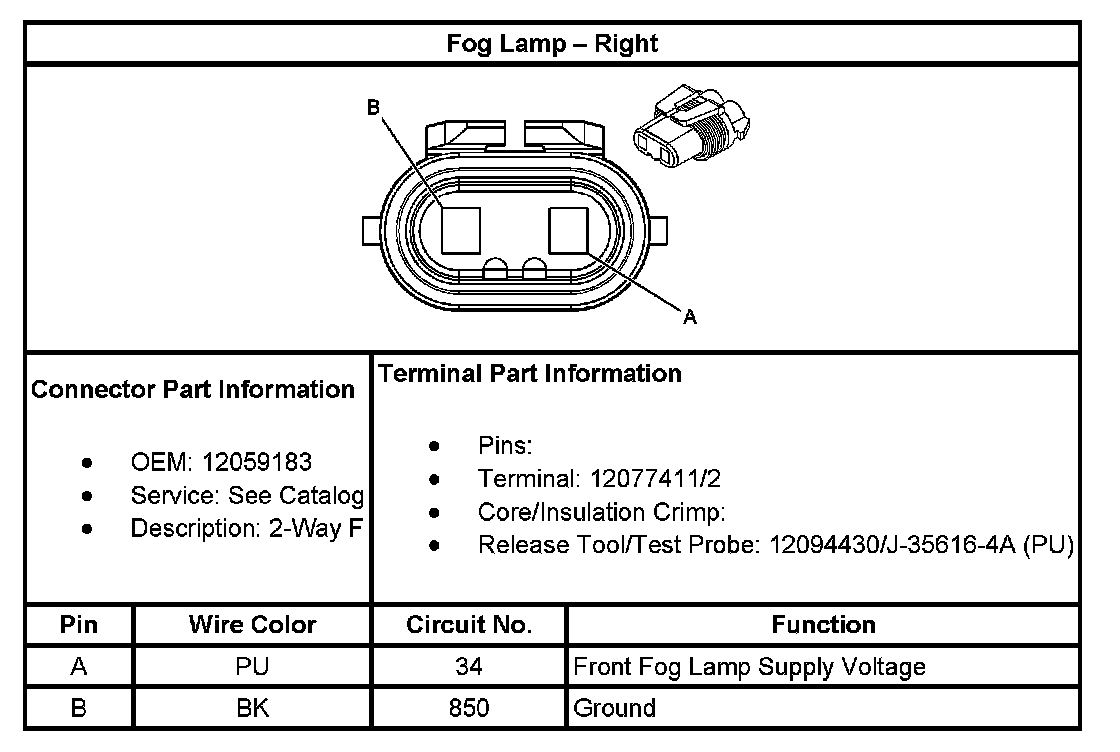

Fog Lamp - Right:
