Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Powertrain Control Module (PCM) C2

Powertrain Control Module (PCM) C2

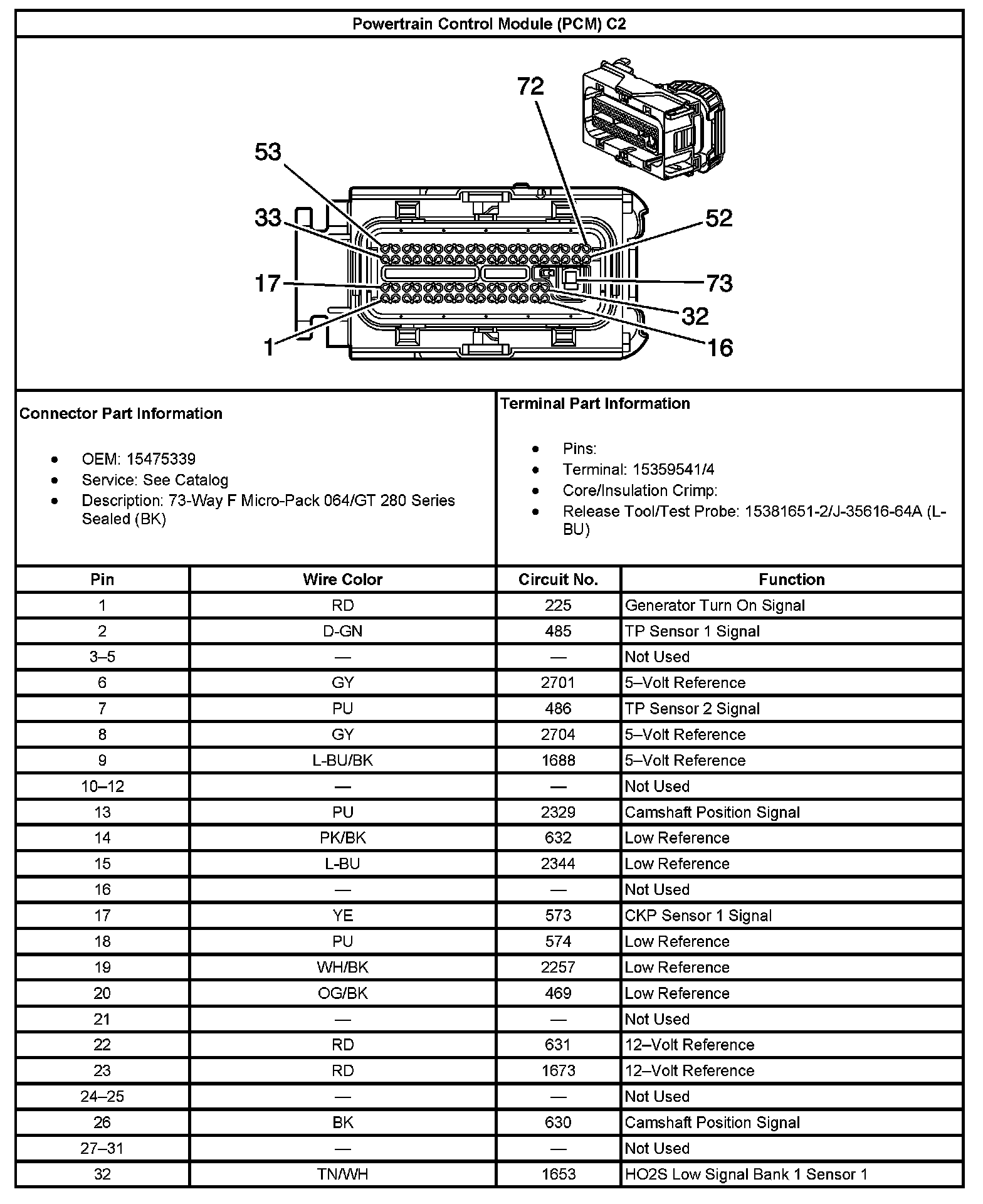

Powertrain Control Module (PCM) C2 (Part 1):

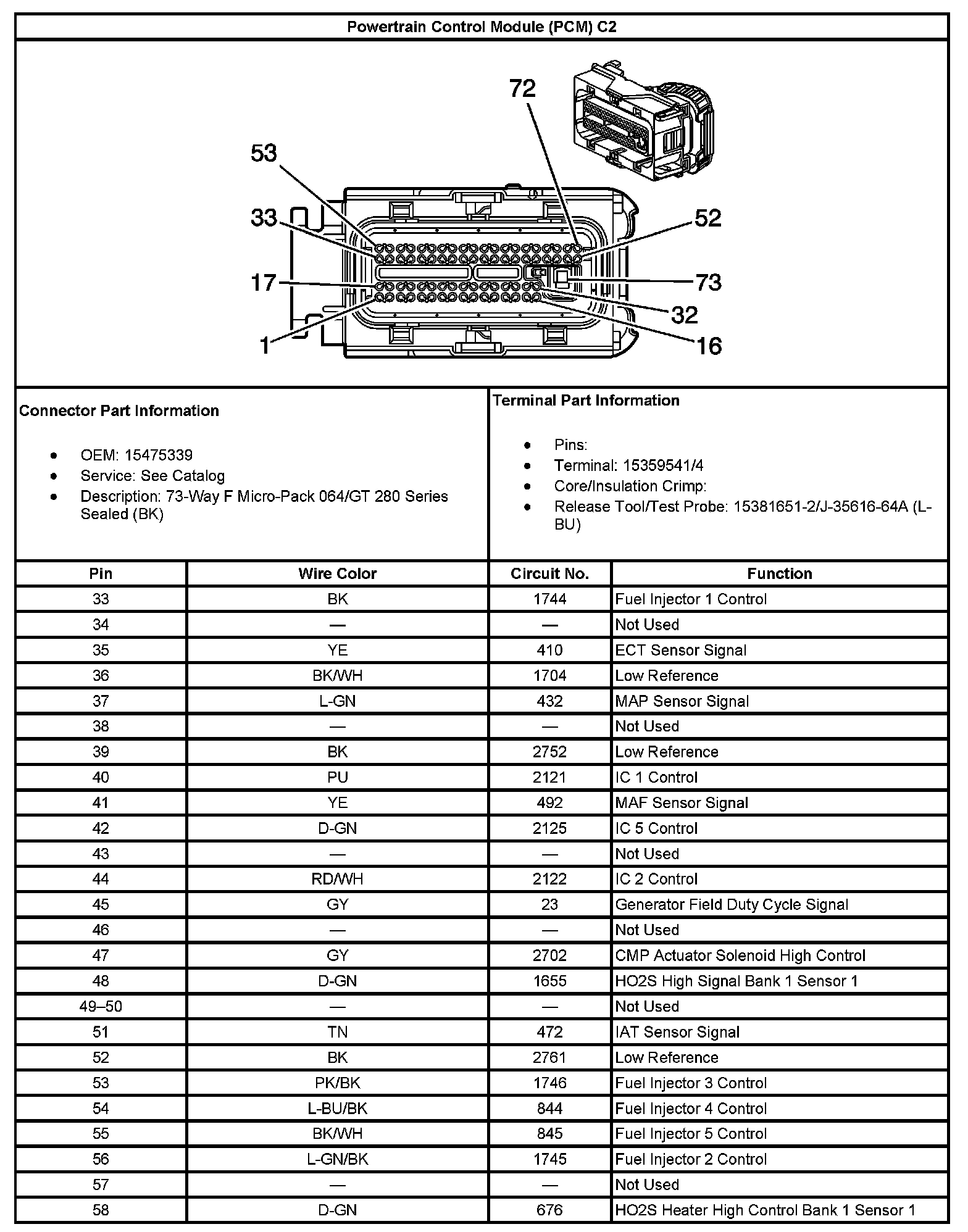

Powertrain Control Module (PCM) C2 (Part 2):

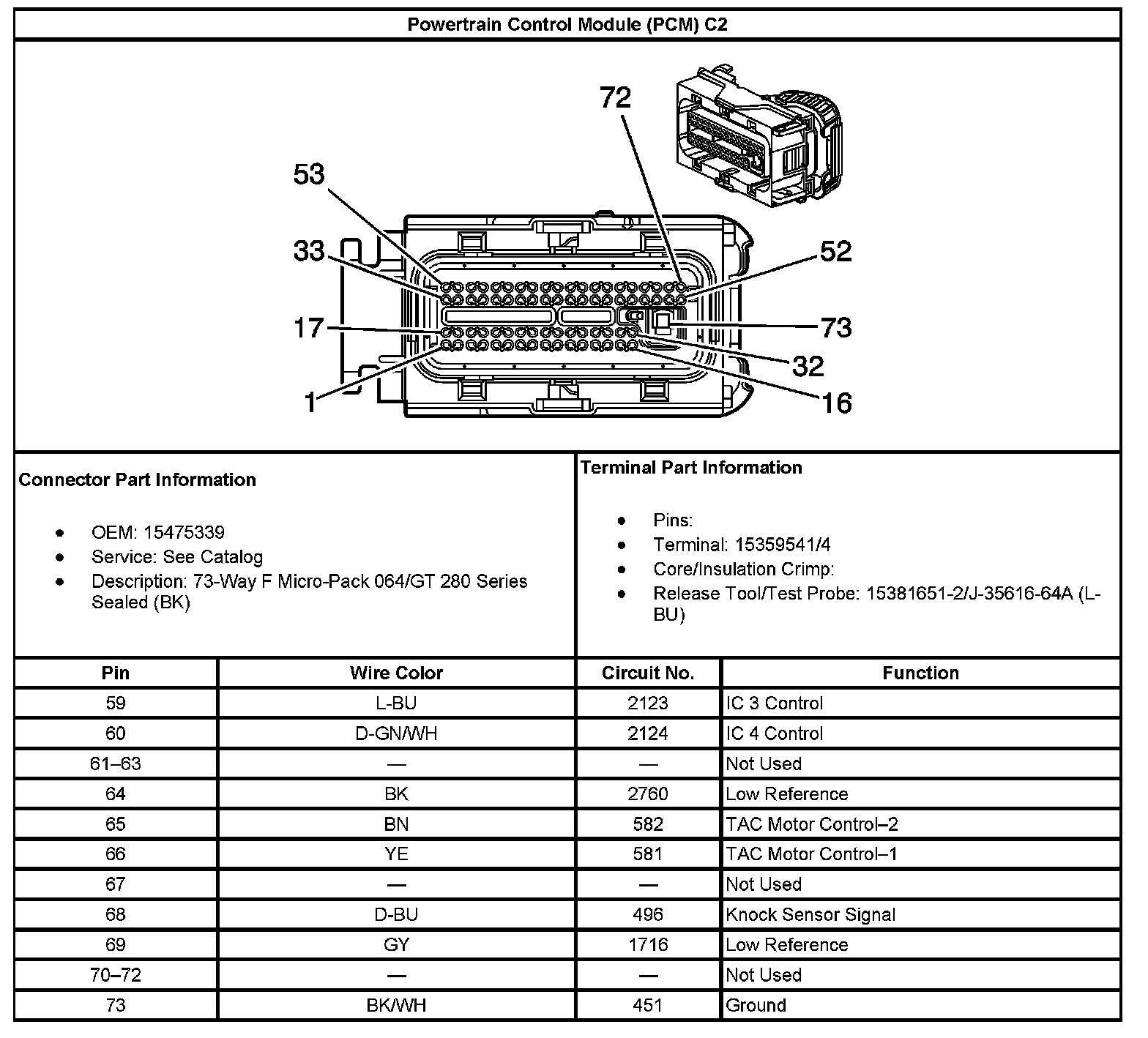

Powertrain Control Module (PCM) C2 (Part 3):
