Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Diagrams >> Components

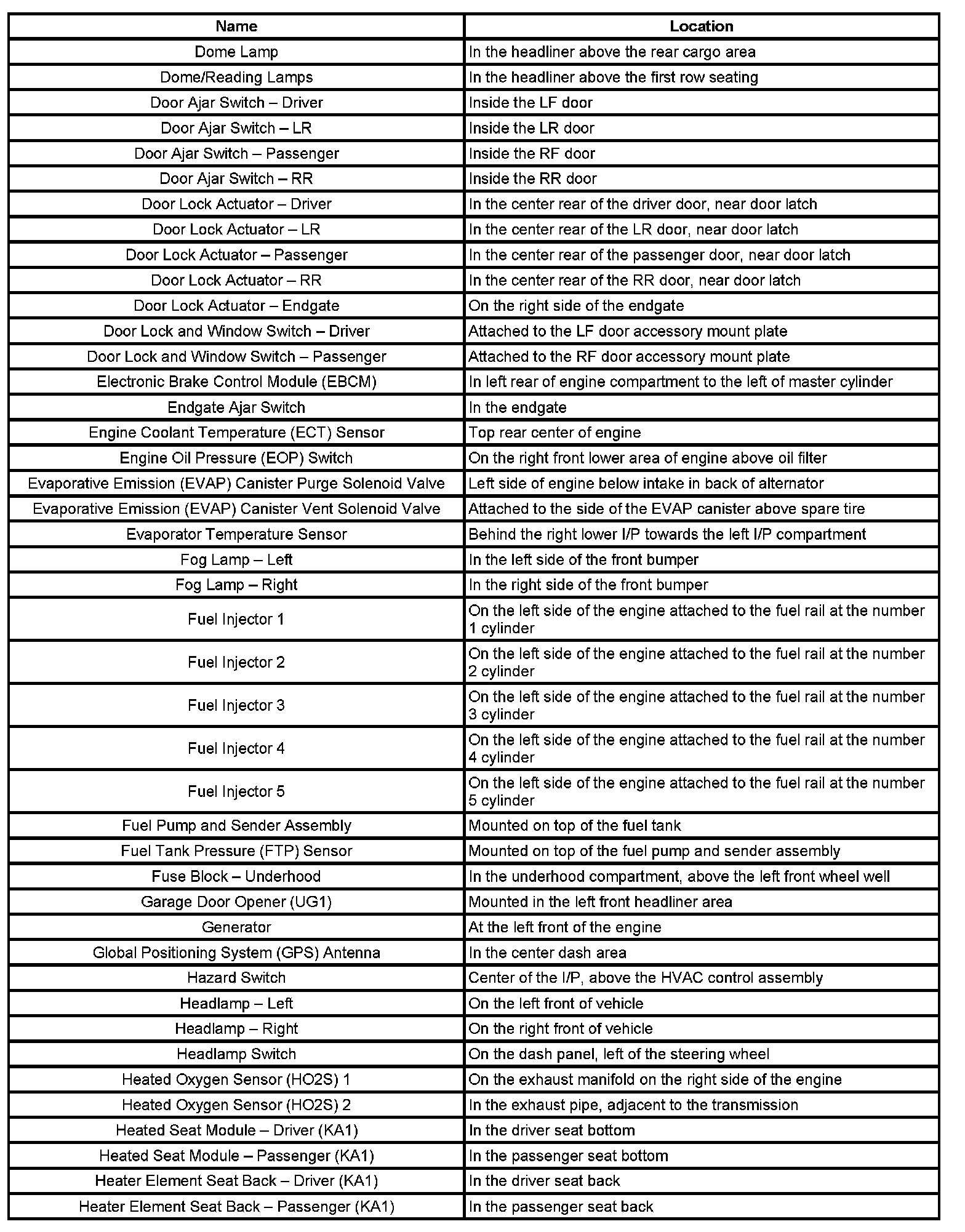

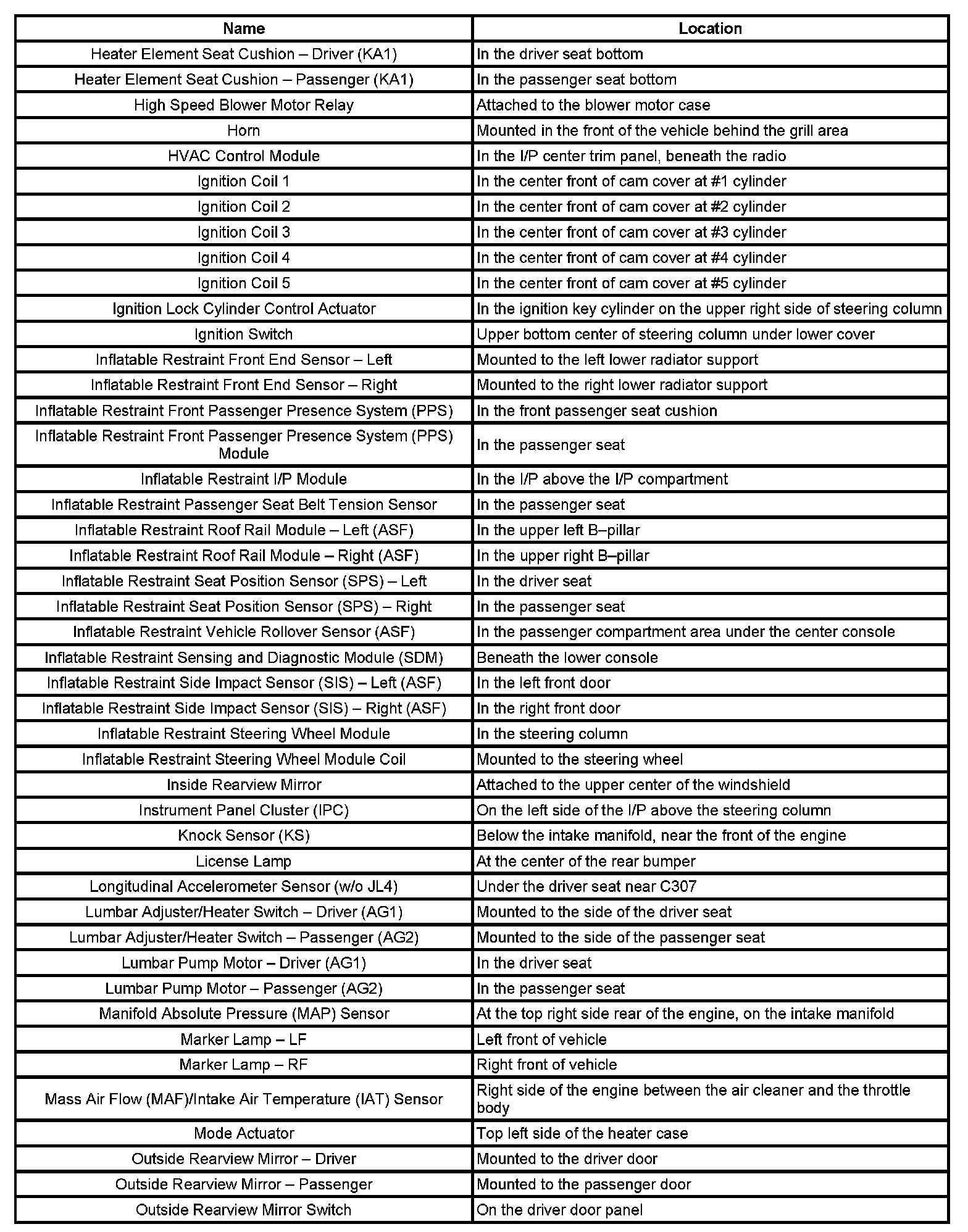

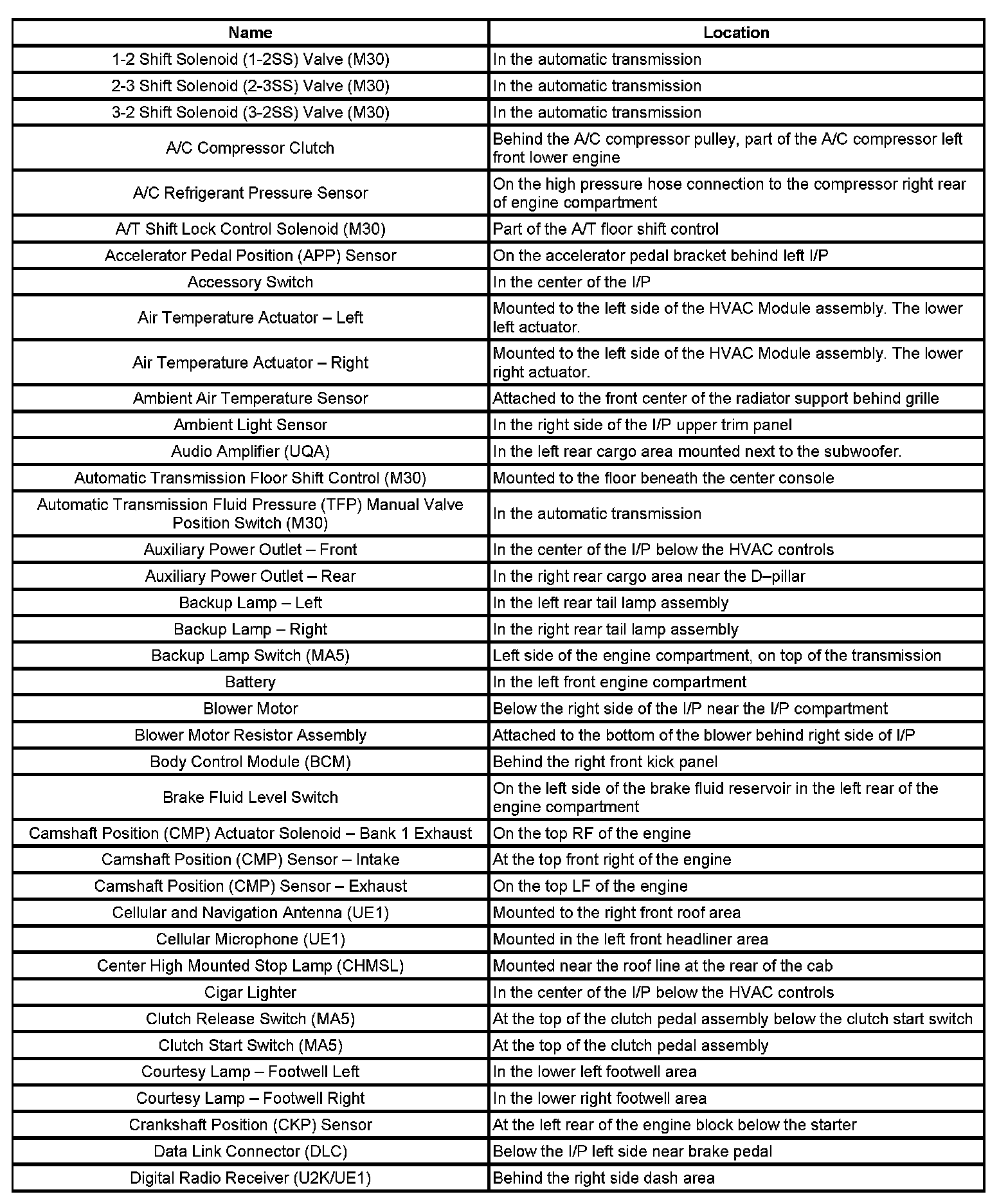

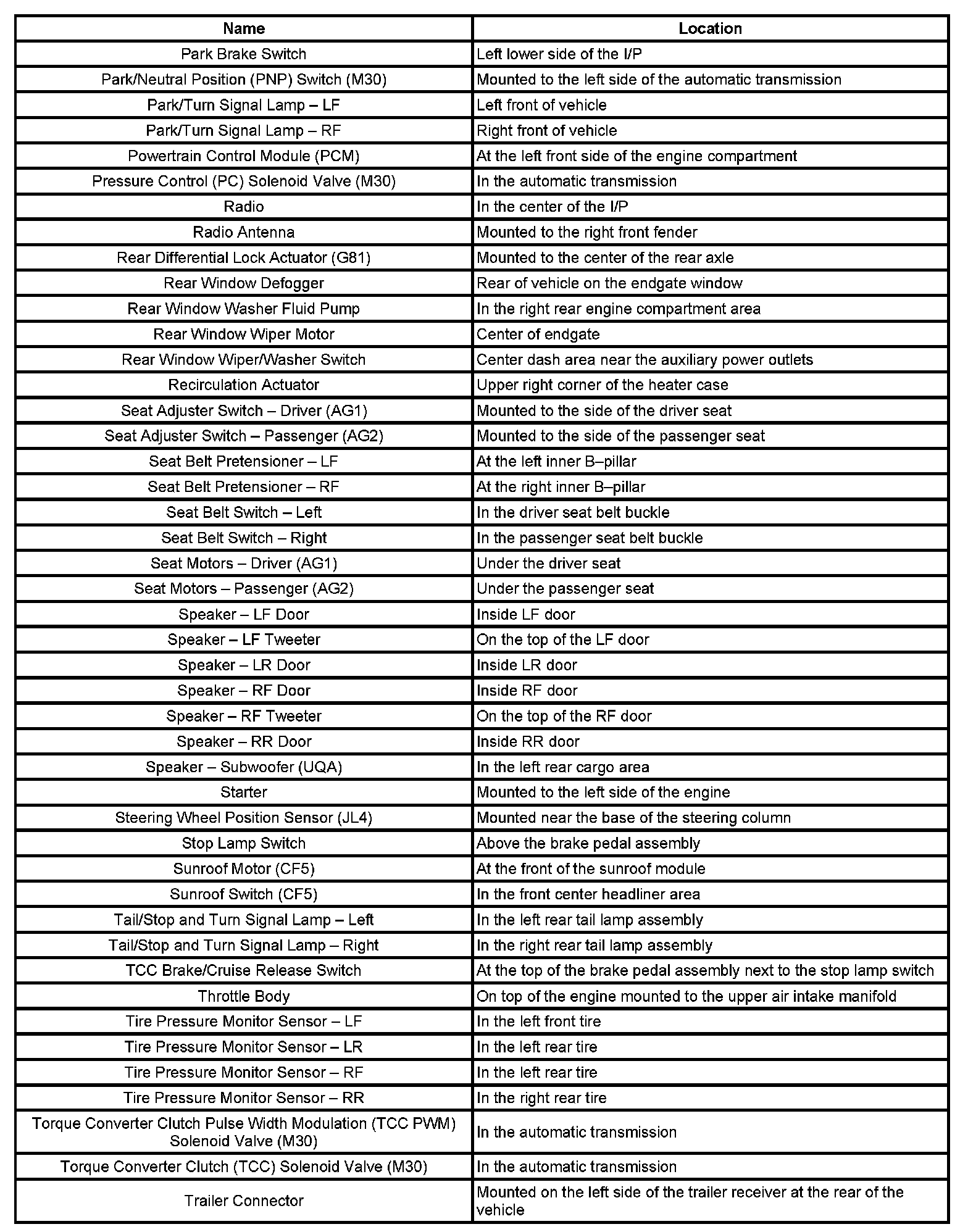

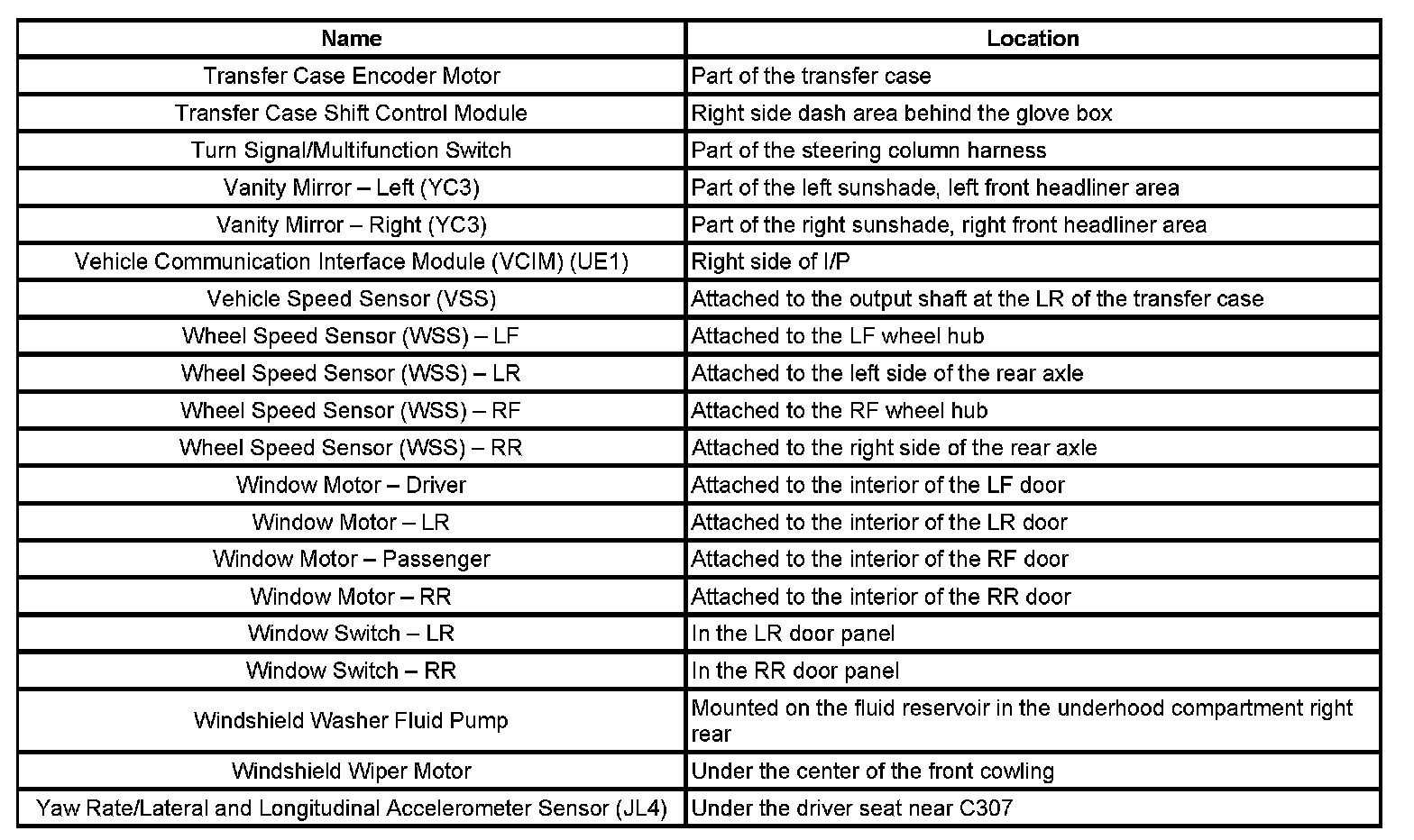

Components

1-2 Sh - Di:



Do - He:



He - Ou:



Pa - Tr:



Tr - Ya:
