Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Body and Frame >> Seats >> Service and Repair >> Front Seat Trim Panel Replacement (Manual Lumbar)

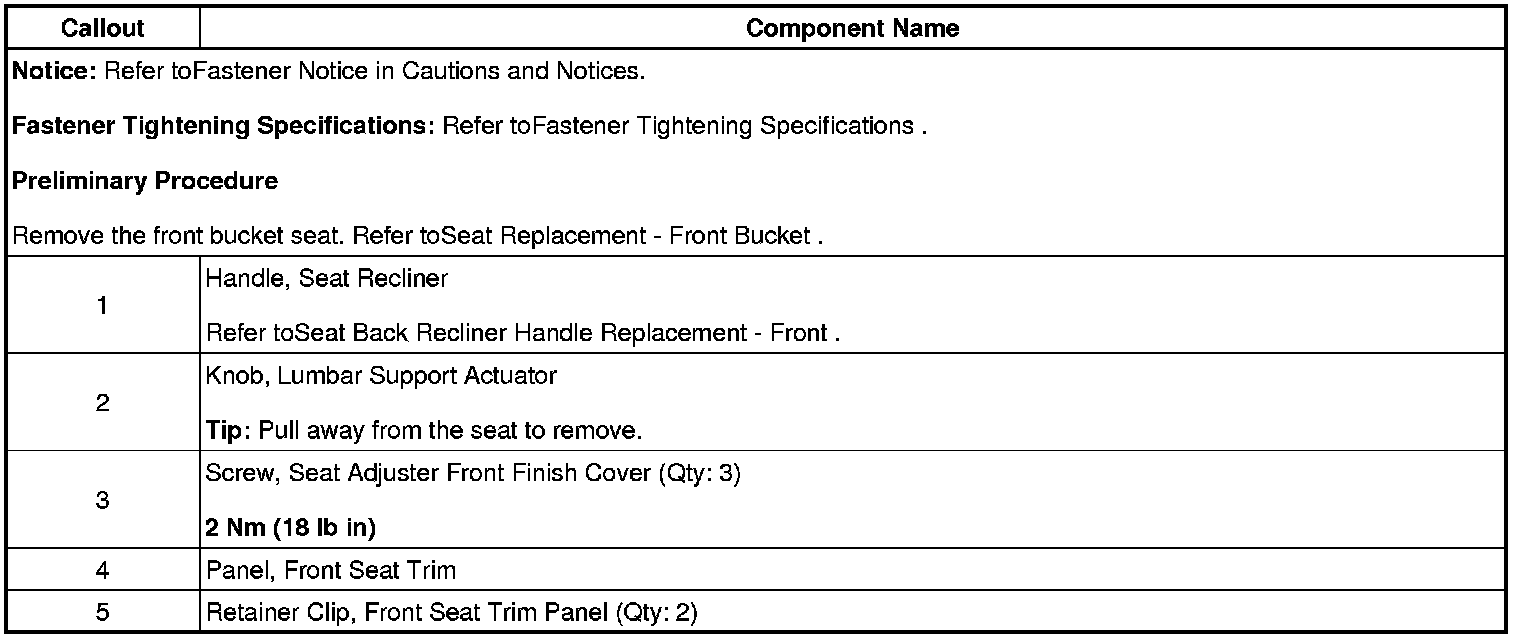

Front Seat Trim Panel Replacement (Manual Lumbar)



Trim Panel Replacement - Front Seat (Manual Lumbar)
