Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Back >> Service and Repair >> Removal and Replacement >> Seat Back Hinge/Recliner Mechanism Replace - Front

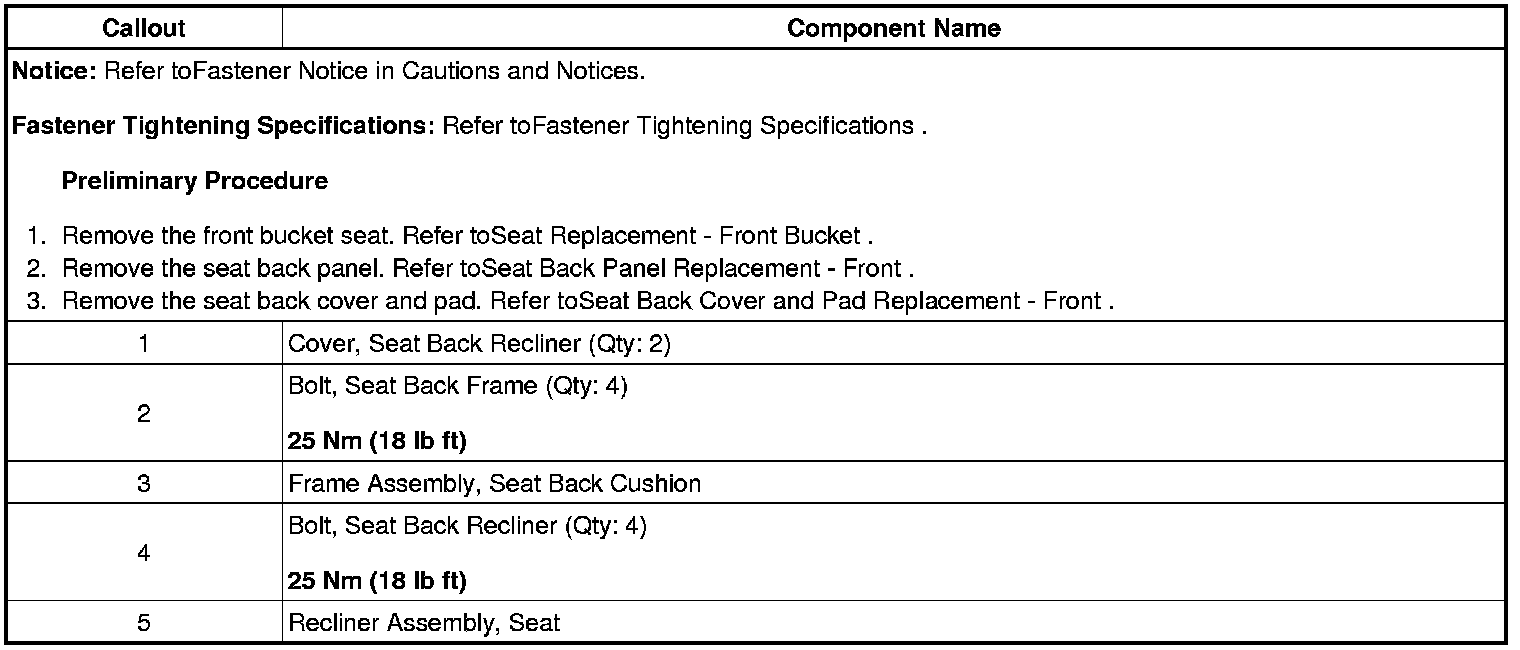

Seat Back Hinge/Recliner Mechanism Replace - Front



Seat Back Hinge/Recliner Mechanism Replace - Front
