Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Power Window Inoperative - Passenger Door

Power Window Inoperative - Passenger Door

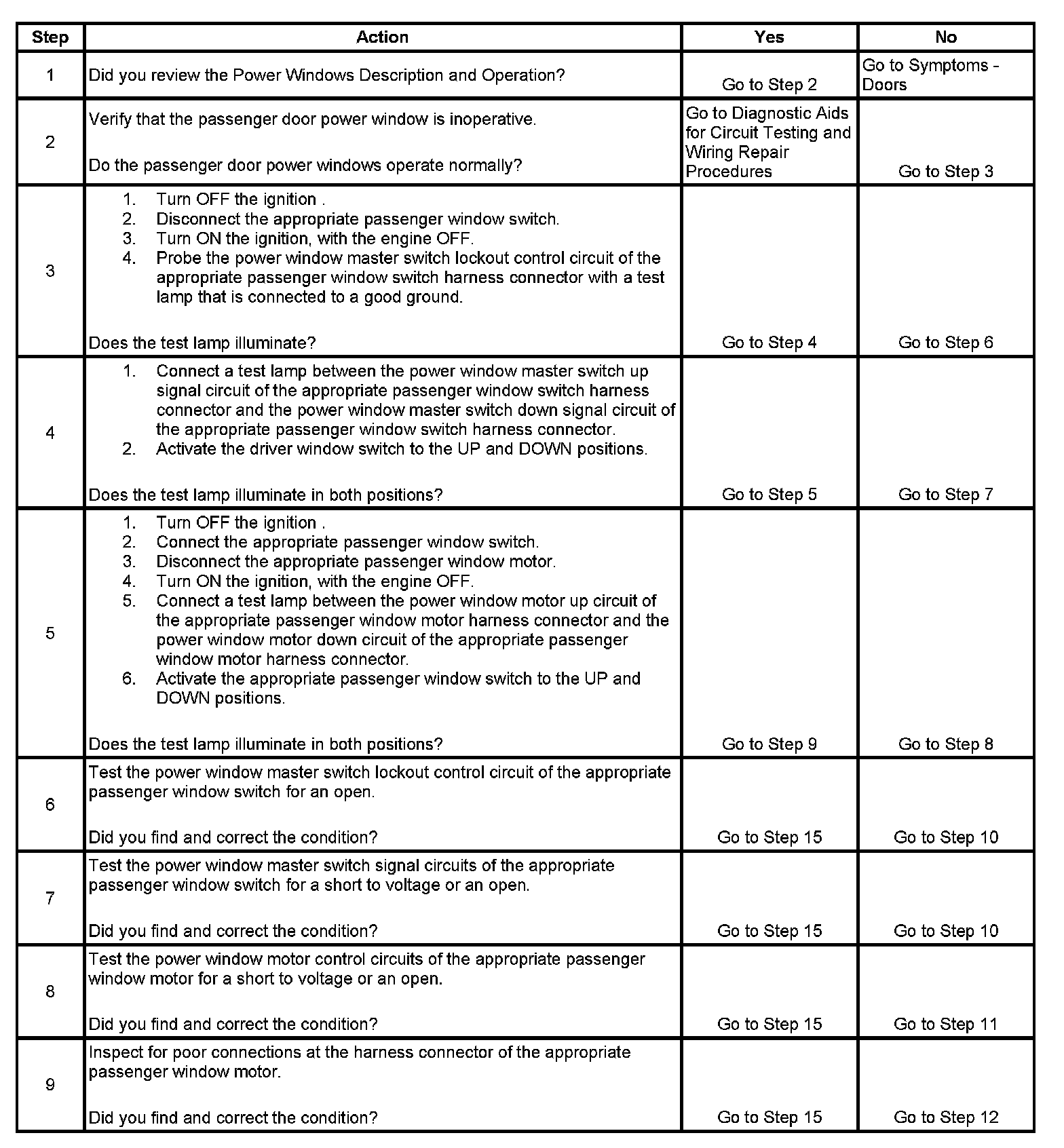

Step 1 - Step 9:

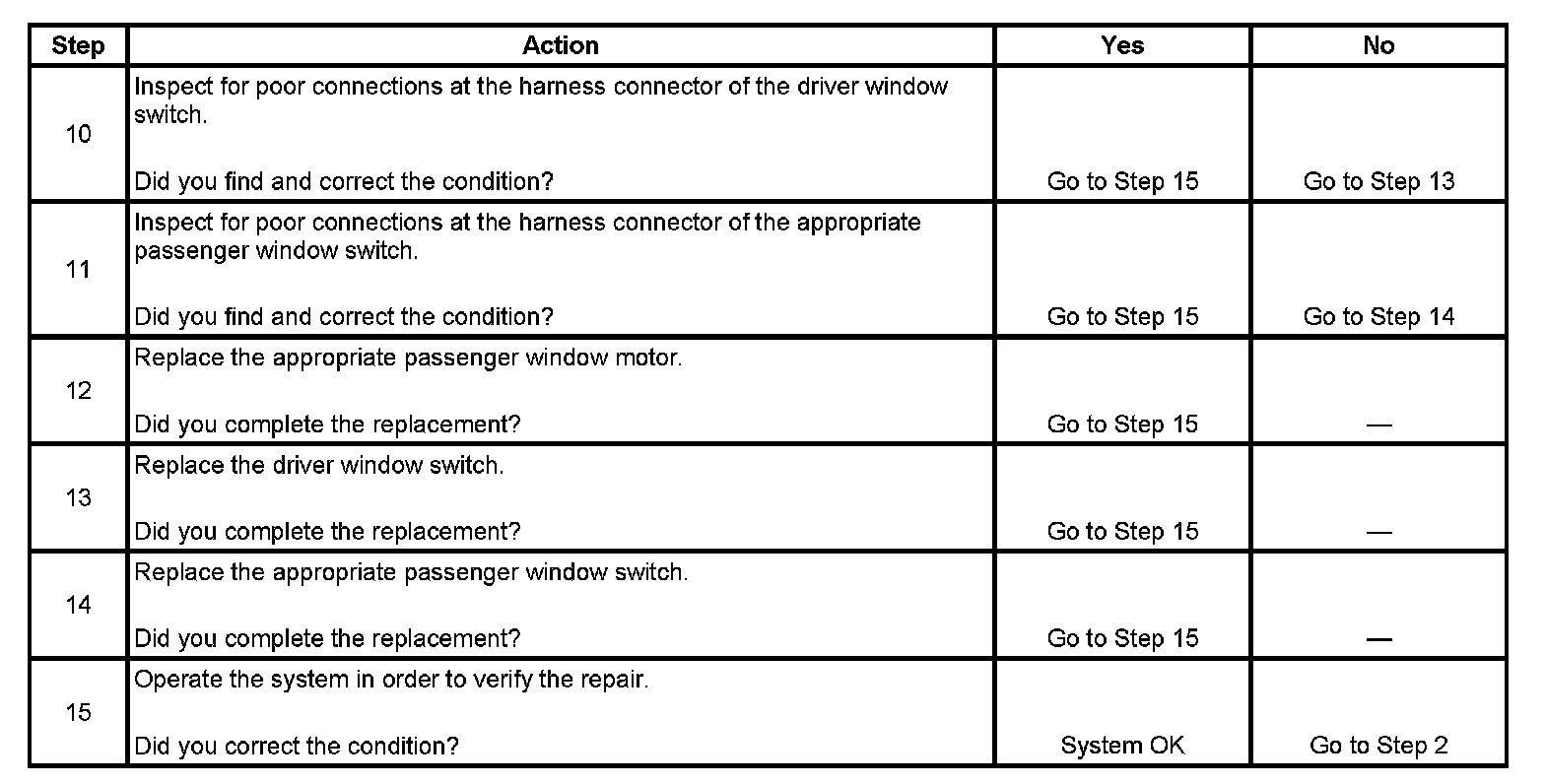

Step 10 - Step 15:
