Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Data List

Scan Tool Data List

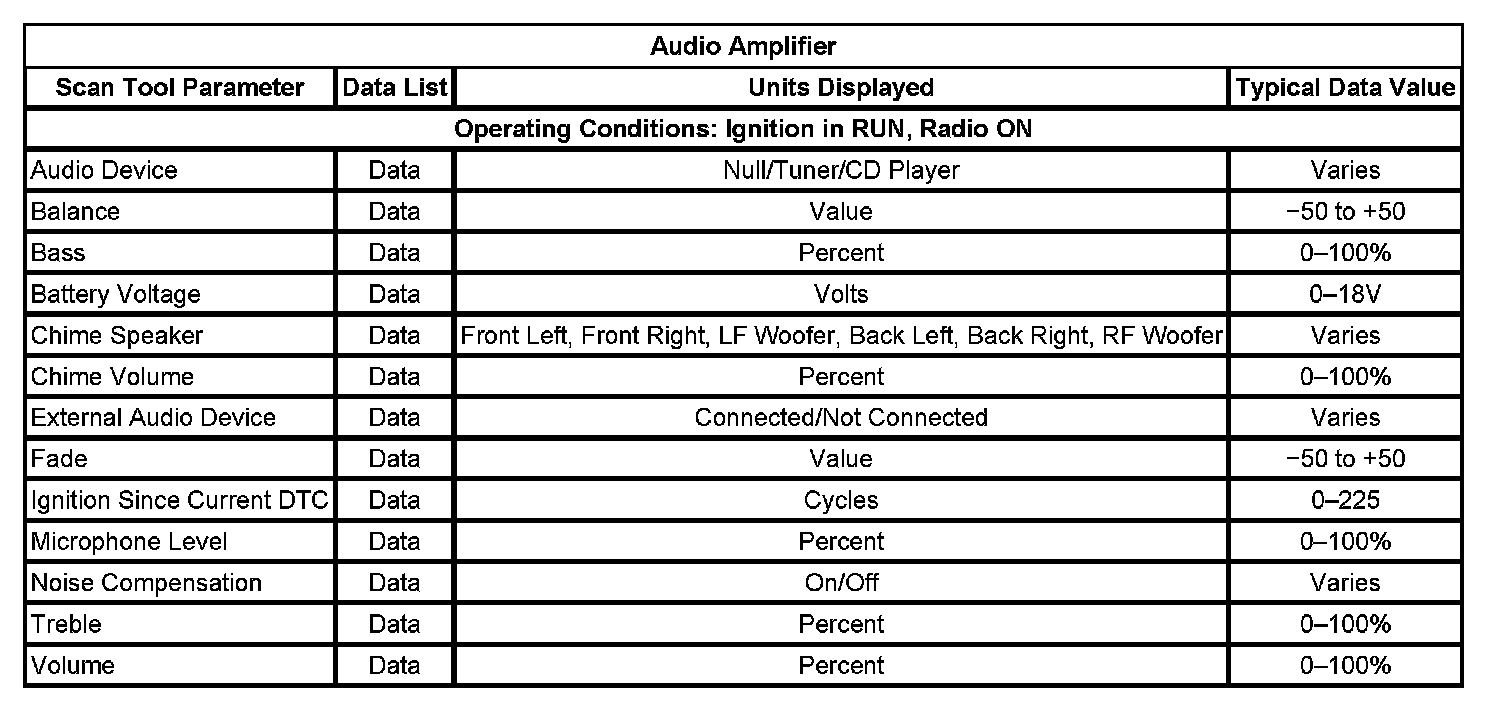

Audio Amplifier:

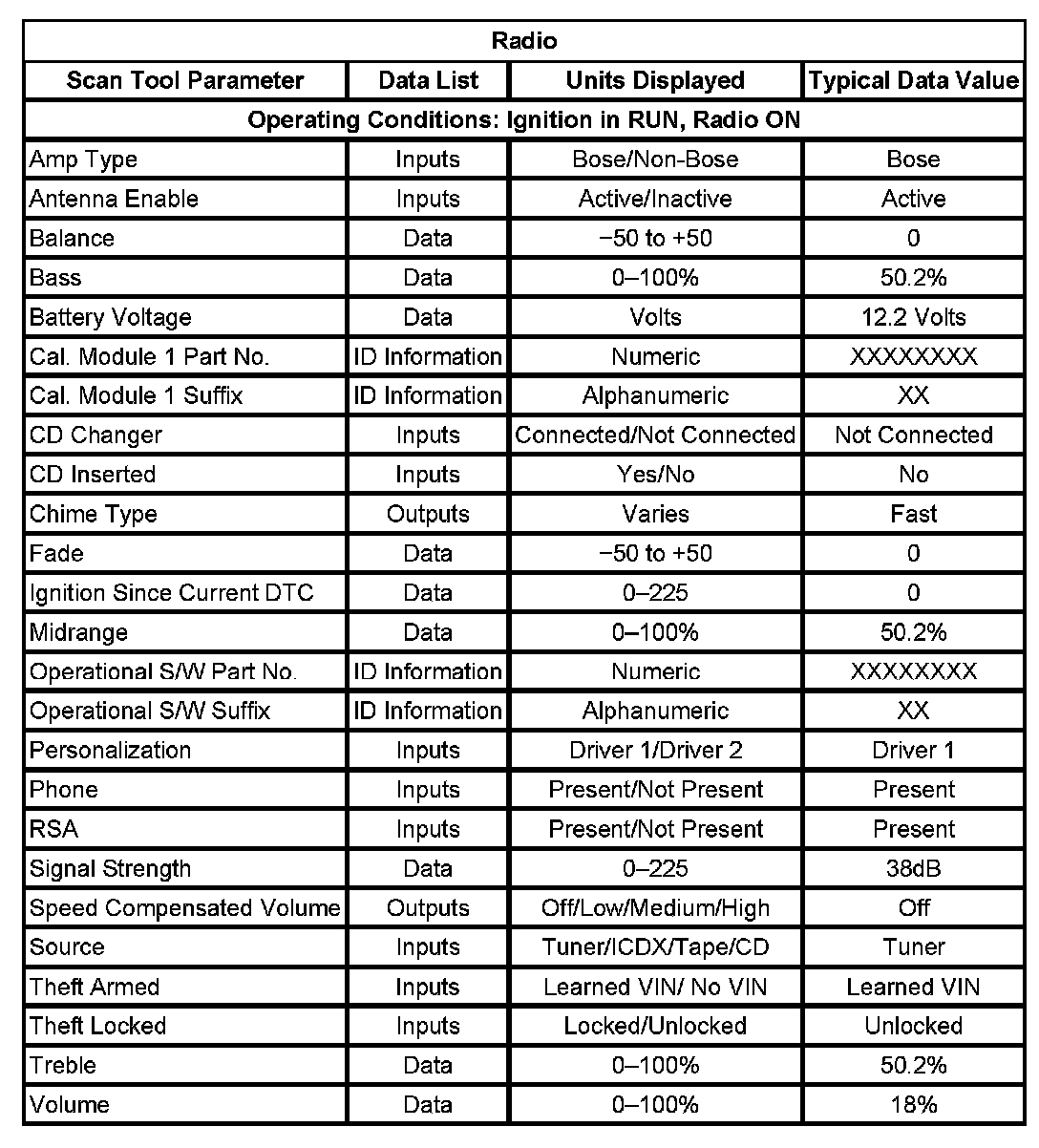

Radio:

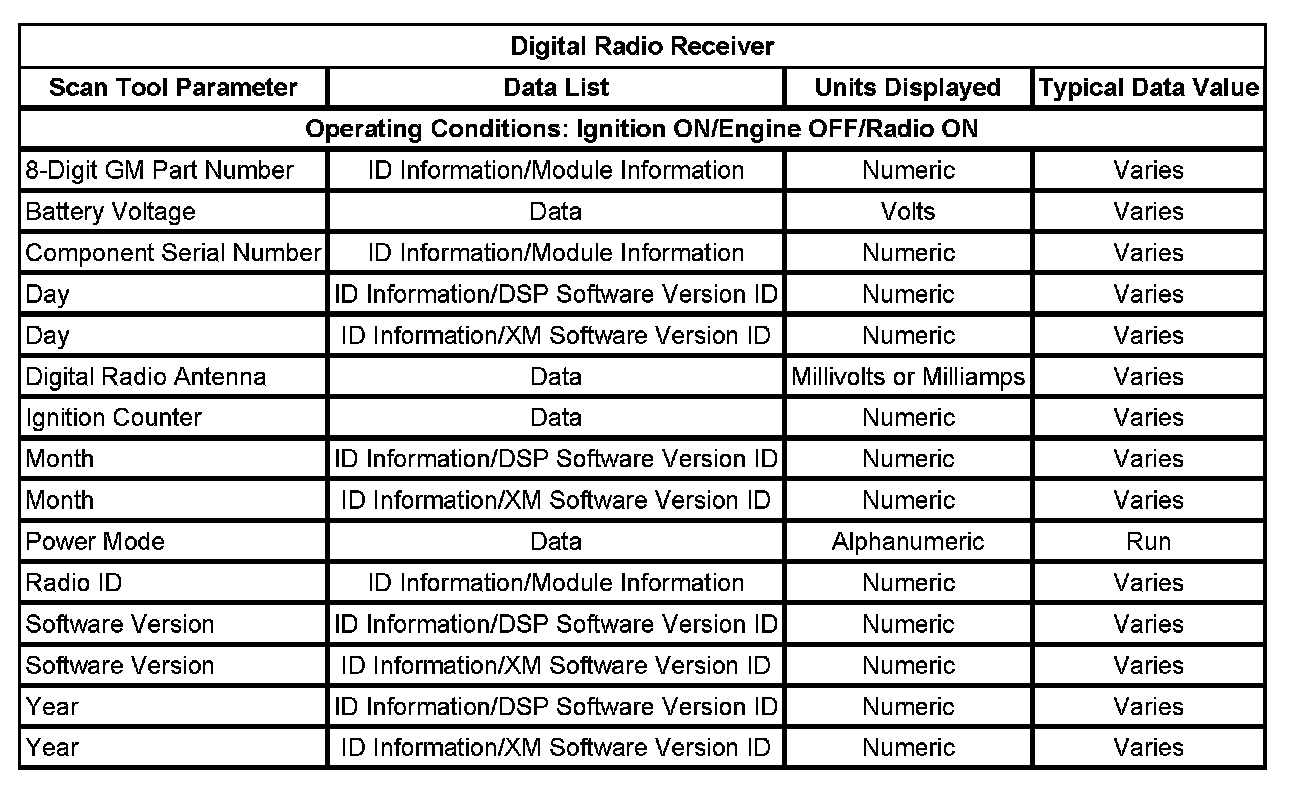

Digital Radio Receiver:

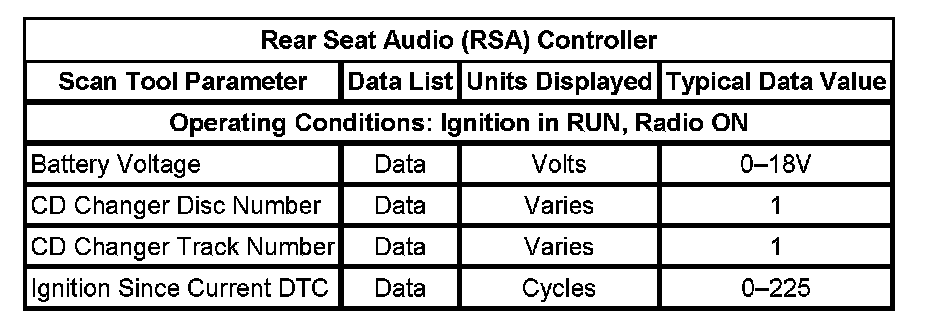

Rear Seat Audio (RSA) Controller:
