Air Temperature Sensor ( Ambient / Intake )
Air Temperature Sensor ( Ambient / Intake )

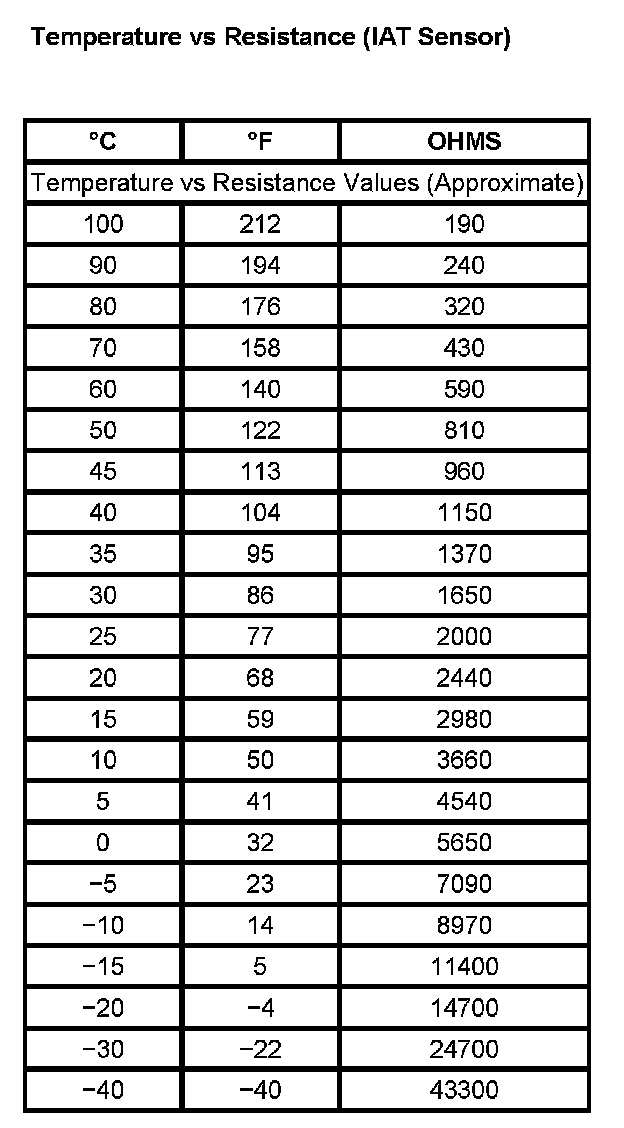

Temperature Vs Resistance (IAT Sensor):

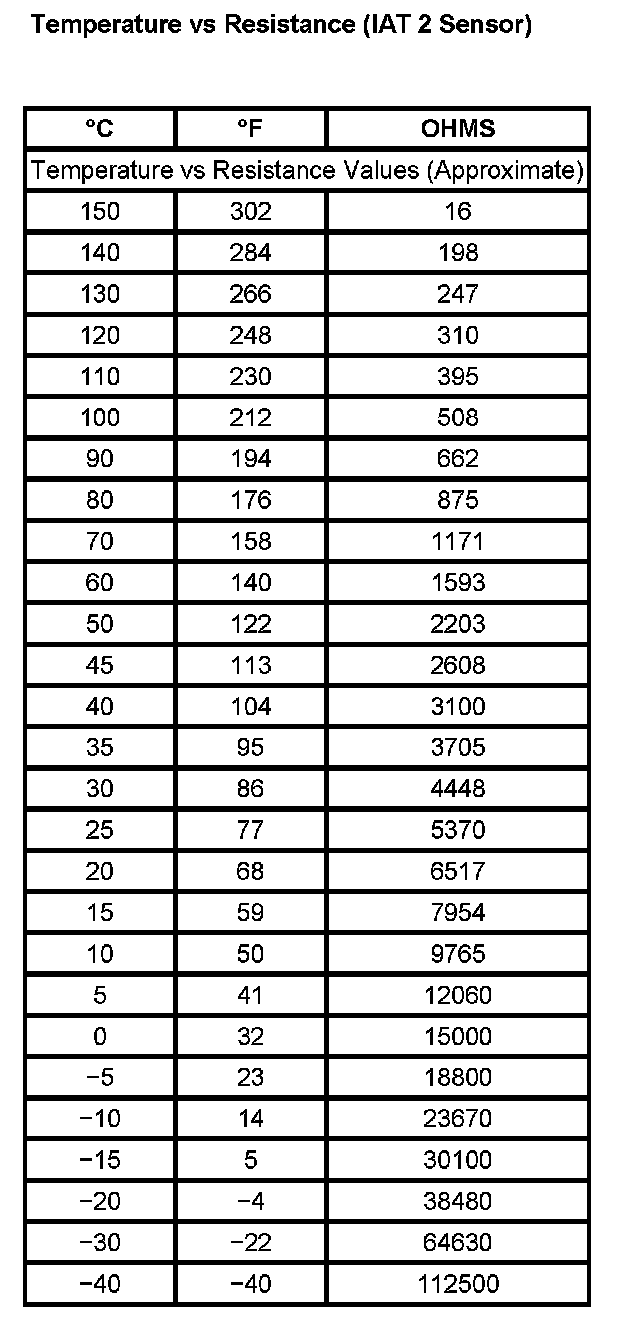

Temperature Vs Resistance (IAT 2 Sensor):
