Turbocharger: Diagrams

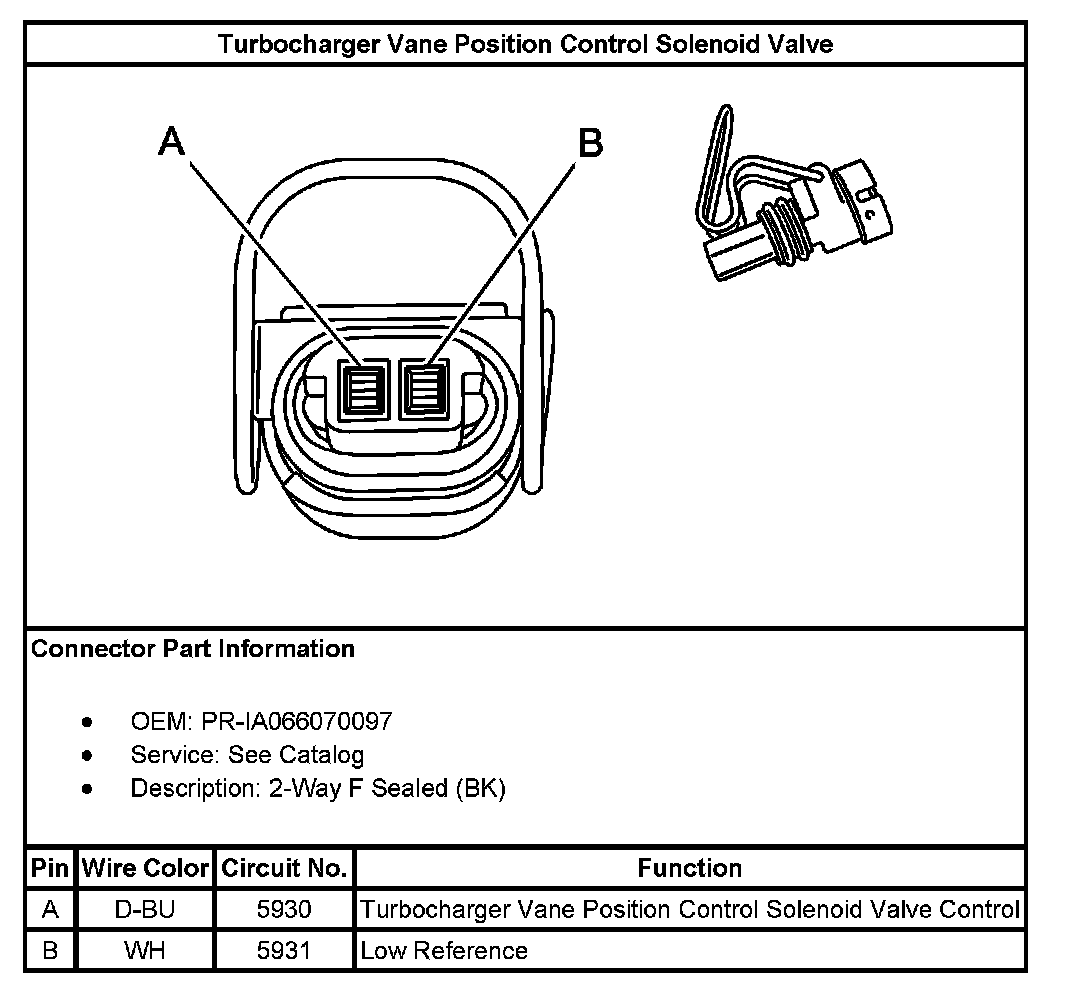

Turbocharger Vane Position Control Solenoid Valve:

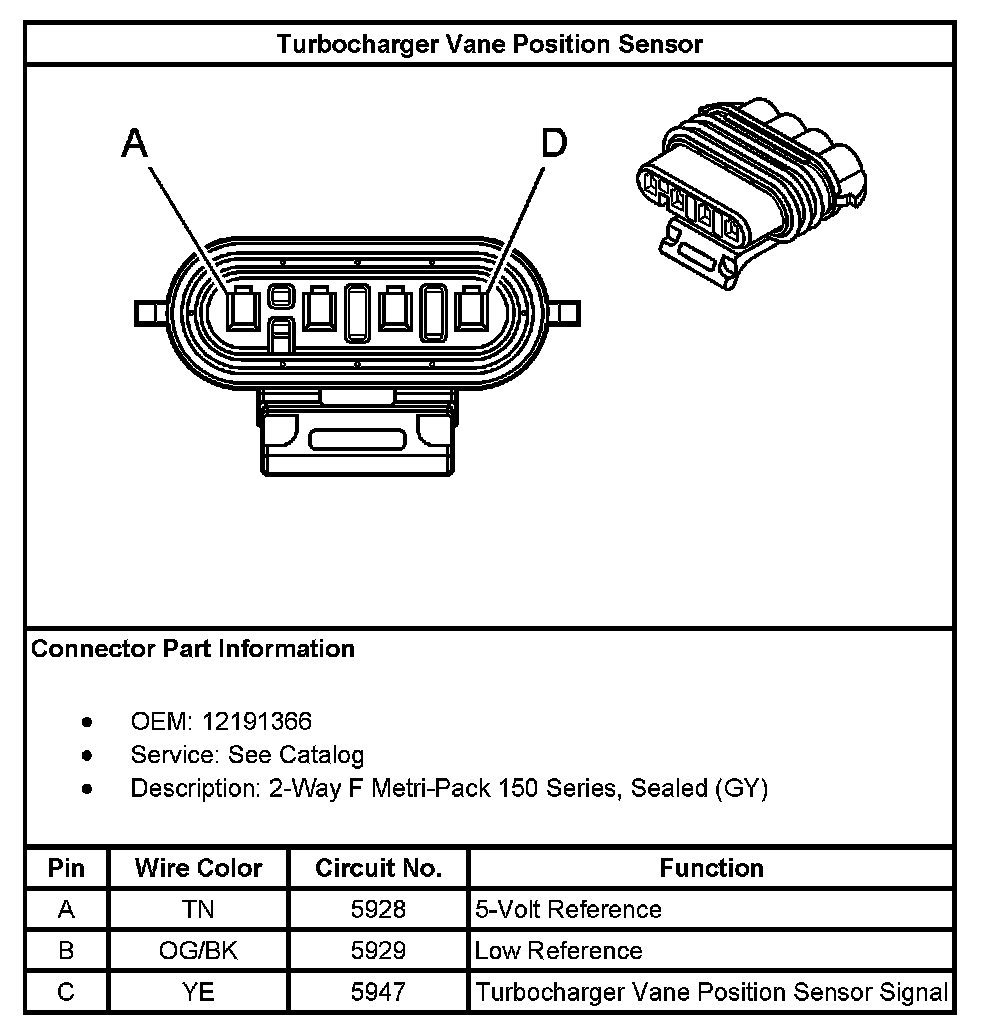

Turbocharger Vane Position Sensor:
