Hummer
>>
2006
>>
H1 V8-6.6L DSL Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Specifications
>>
Electrical Specifications
Electrical Specifications

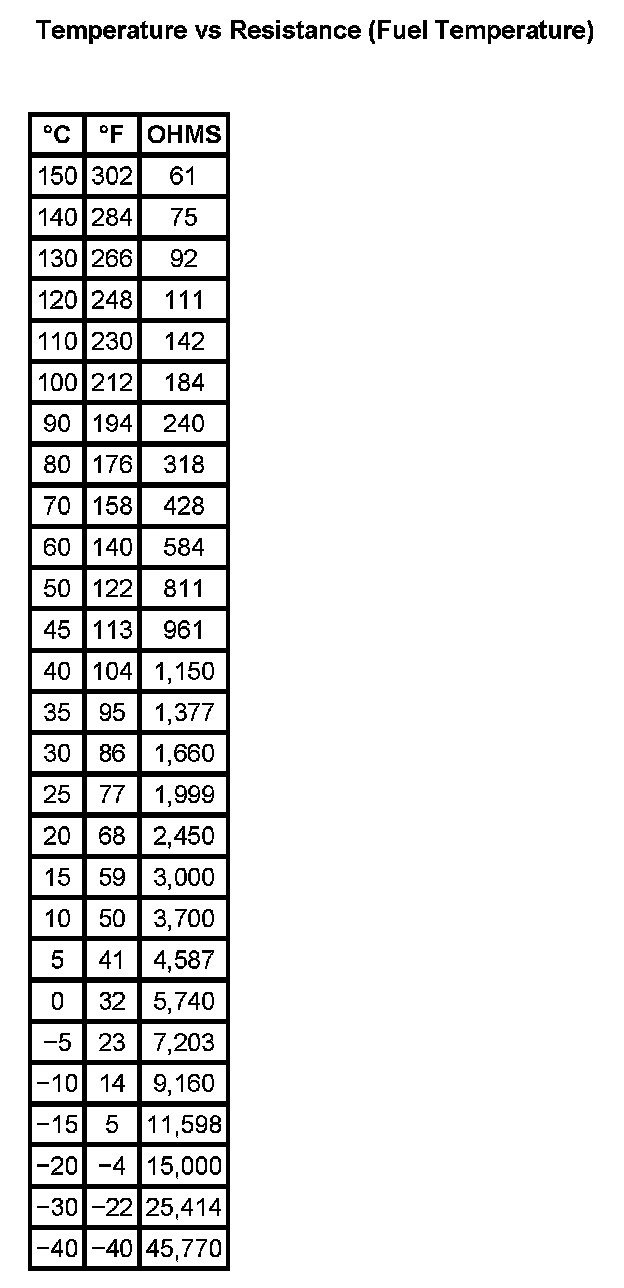

Temperature Vs Resistance (Fuel Temperature):
