FUEL RAIL ASSEMBLY REPLACEMENT - BANK 2

REMOVAL PROCEDURE




1. Disconnect the negative battery cables.
2. Remove the air cleaner outlet duct.
3. Remove the wiring harness retainer from the bracket.
4. Remove the oil level indicator tube bolt.
5. Remove the oil level indicator tube bracket bolts.
6. Remove the bracket.




7. Remove the fuel filter.
8. Remove the exhaust gas recirculation (EGR) cooler tube.
9. Remove the positive crankcase ventilation (PCV) hose/pipe.

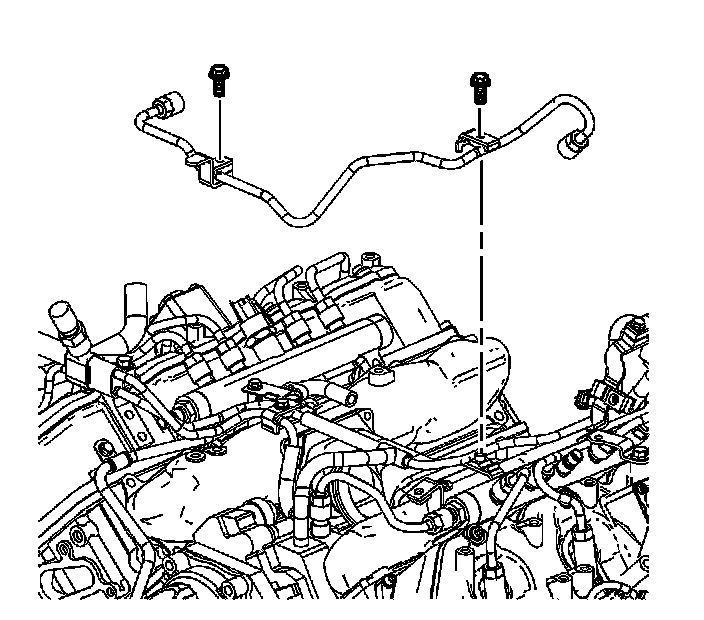

10. Disconnect the fuel rail balance pipe from the fuel rails.
11. Remove the fuel rail balance pipe bolts.
12. Remove the fuel rail balance pipe.




13. Remove the wiring harness retainer from the bracket.
14. Remove the oil level indicator tube bolt.
15. Remove the oil level indicator tube bracket bolts.
16. Remove the bracket.




17. Prior to removing the fuel injector pipes, use compressed air to blow any debris from between the injector line and fittings. Wipe the fittings clean of debris.
18. Spray lithium grease, GM P/N 12346293 or equivalent, between the fuel injector line and fittings to assist in containing any debris during removal.

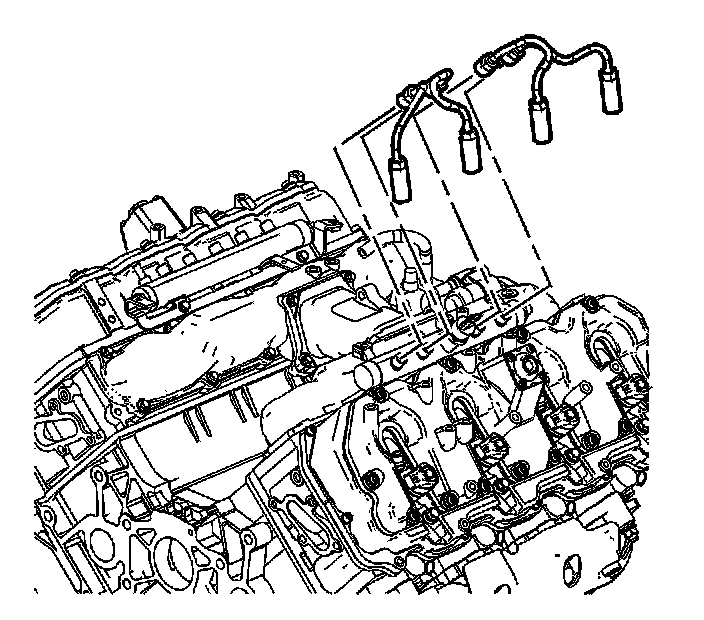

19. Remove the fuel injector pipes.

NOTE: DO NOT use compressed air to clean debris from the fuel injector inlet after the fuel line is removed. Using compressed air can allow debris to enter the fuel injector inlet and damage the fuel injector.




20. Remove the fuel rail bolts.

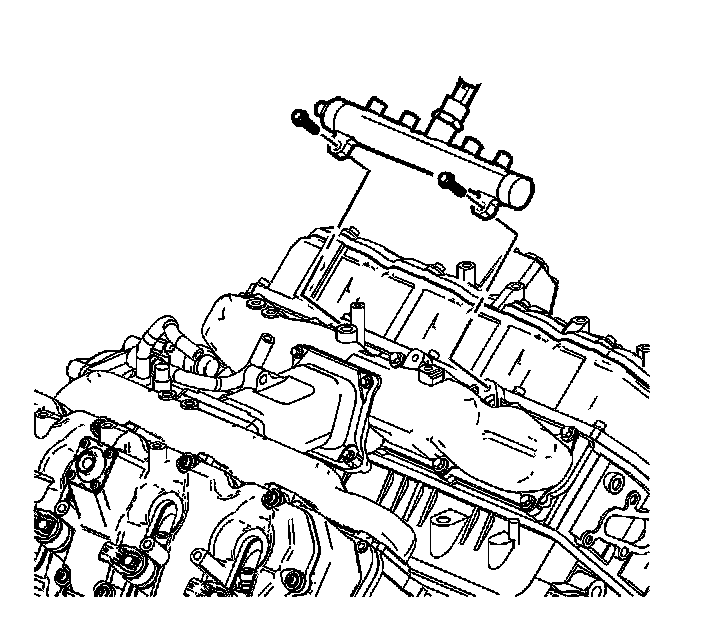

21. Remove the fuel rail.

INSTALLATION PROCEDURE




1. Install the fuel rail.

NOTE: Refer to Fastener Notice.

2. Install the fuel rail bolts.

Tighten the bolts to 25 N.m (18 lb ft).




3. Install the fuel injector pipes.

NOTE: Ensure proper torquing of the fuel injector line. An under-torqued fuel injector line will not seal properly and an over-torqued fuel injector line may damage the fuel injector fitting. An improperly sealed or damaged fuel injector line or fuel injector fitting will cause a fuel leak.

Tighten the fittings to 41 N.m (30 lb ft).

4. After installing the fuel injector pipes, clean the injector pipes and apply sealant GM P/N 97720043, at the fittings to prevent moisture and debris from collecting between the line and fitting.




5. Install the fuel rail balance pipe.
6. Connect the fuel rail balance pipe to the fuel rails.

Tighten the fittings to 41 N.m (30 lb ft).

7. Install the fuel rail balance pipe bolts.

Tighten the bolts 25 N.m (18 lb ft).

8. Install the PCV hose/pipe.
9. Install the EGR cooler tube.
10. Install the fuel filter.




11. Install the bracket.
12. Install the oil level indicator tube bracket bolts.

Tighten the bolts to 21 N.m (15 lb ft).

13. Install the oil level indicator tube bolt.

Tighten the bolt to 21 N.m (15 lb ft).

14. Install the wiring harness retainer to the bracket.
15. Install the air cleaner outlet duct.
16. Connect the negative battery cables.
17. Prime the fuel system. Refer to Fuel System Priming.
18. Start the engine. If the engine stalls, repeat the above step.
19. Once the engine starts, inspect for fuel leaks.
