Fuel Filter: Description and Operation



FUEL FILTER

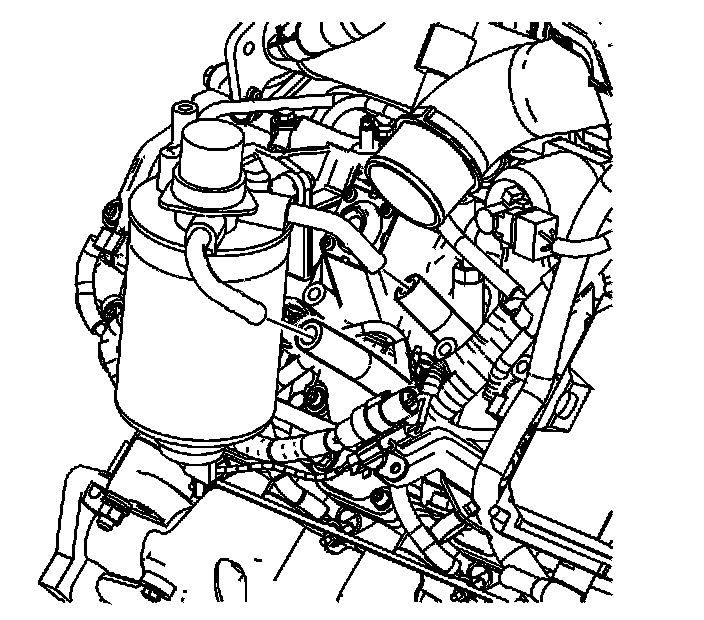

The fuel filter is located on the rocker cover. The paper filter element traps particles in the fuel that may damage the fuel injection system.
