Positive Crankcase Ventilation (PCV) Valve Replacement (Right)

Positive Crankcase Ventilation (PCV) Valve Replacement (Right)
Removal Procedure





1. Remove the air cleaner outlet duct.
2. Using a pick or a small flat-bladed screw driver, remove and discard the quick connect fitting clip from the charged air cooler outlet duct.
3. Remove the charged air cooler outlet duct from the intake.





4. Remove the fuel filter bracket bolts.
5. Position the fuel filter assembly out of the way.

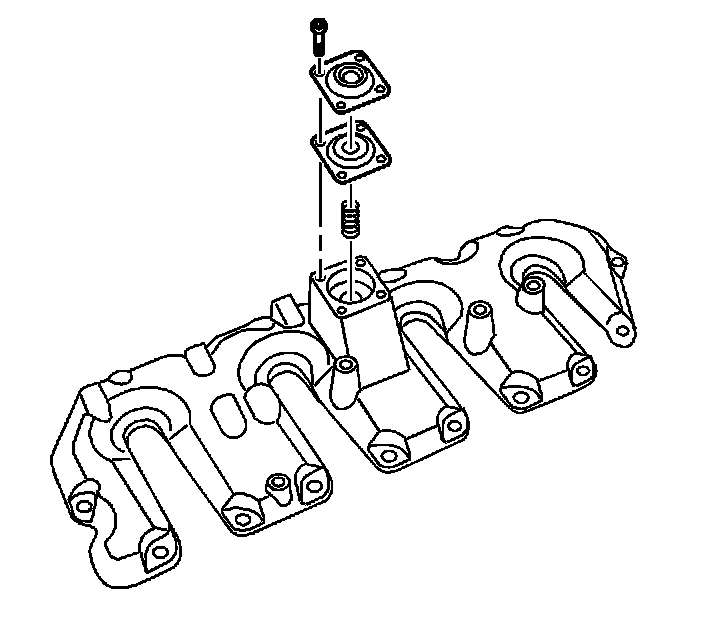

6. Remove the positive crankcase ventilation (PCV) cover screws.
7. Remove the PCV cover, diaphragm, and spring.
8. Clean and inspect the cover, diaphragm and spring.
9. Discard the diaphragm if damage is found.

Installation Procedure





1. Install the spring, diaphragm and cover.

Notice: Refer to Fastener Notice .

2. Install the PCV cover screws.
^ Tighten the screws to 4 Nm (35 inch lbs.).





3. Position the fuel filter assembly to the engine.
4. Install the fuel filter bracket bolts.
^ Tighten the bolts to 21 Nm (15 ft. lbs.).





5. Install a NEW quick connect fitting clip to the charged air cooler duct.
6. Install the charged air cooler outlet duct to the intake.
7. Install the air cleaner outlet duct.
