Hummer
>>
2006
>>
H1 V8-6.6L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Intake Air Heater
Intake Air Heater

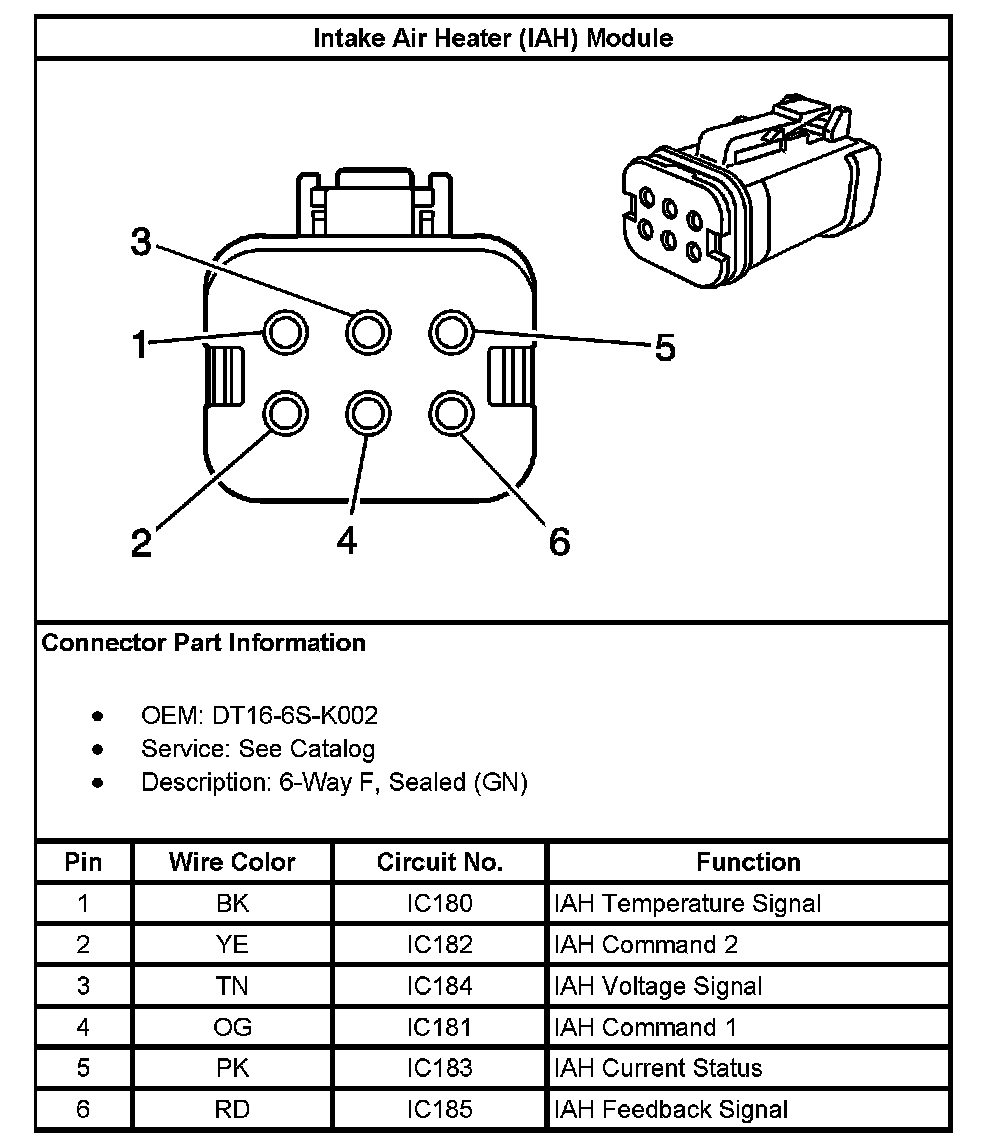

Intake Air Heater (IAH) Module:
