Home >> Hummer >> 2006 >> H1 V8-6.6L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Temperature Sensor ( Ambient / Intake )

Air Temperature Sensor ( Ambient / Intake )

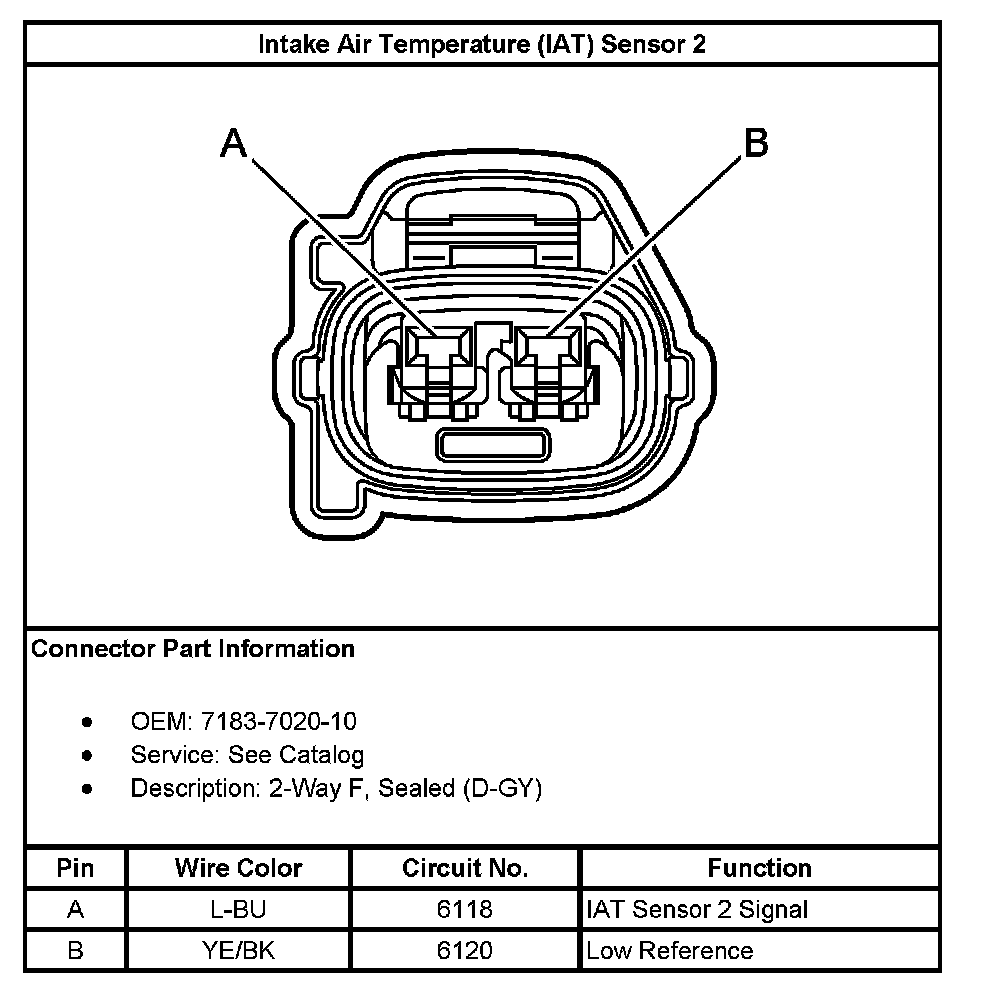

Intake Air Temperature (IAT) Sensor 2:



Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor:
