P0698

DTC P0698

DTC DESCRIPTORS

DTC P0698
5-Volt Reference 3 Circuit Low Voltage

DTC P0699
5-Volt Reference 3 Circuit High Voltage

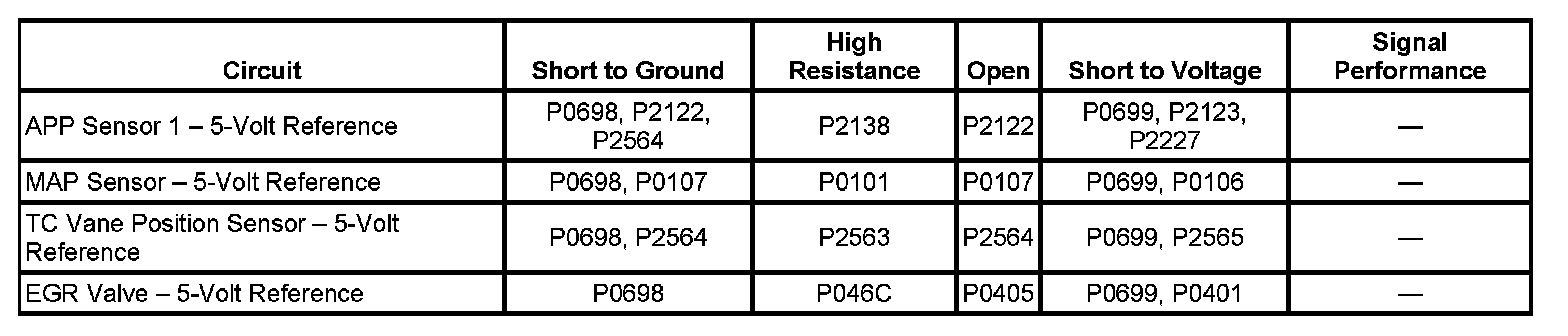

DIAGNOSTIC FAULT INFORMATION






IMPORTANT: Always perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

CIRCUIT/SYSTEM DESCRIPTION
These 5-volt reference circuits are independent of each other outside the engine control module (ECM), but are bussed together inside the ECM. Therefore, a circuit condition on one sensor 5-volt reference circuit may affect the other sensor 5-volt reference circuits. The ECM monitors the voltage on the 5-volt reference circuit.

CONDITIONS FOR RUNNING THE DTC
- The ignition is ON.
- Diagnostics run continuously.

CONDITIONS FOR SETTING THE DTC

P0698
- The ECM detects the 5-volt reference 3 circuit voltage is less than 4.7 volts.
- The above condition is present for 2 seconds.

P0699
- The ECM detects the 5-volt reference 3 circuit voltage is more than 5.2 volts.
- The above condition is present for 2 seconds.

ACTION TAKEN WHEN THE DTC SETS
- The control module illuminates the malfunction indicator lamp (MIL) when the diagnostic runs and fails.
- The control module records the operating conditions at the time the diagnostic fails. The control module stores this information in the Freeze Frame/Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
- The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
- A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
- A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
- Clear the MIL and the DTC with a scan tool.

CIRCUIT/SYSTEM VERIFICATION
Engine Starts and runs.

CIRCUIT/SYSTEM TESTING
1. Turn OFF the ignition for 30 seconds or until the ECM powers down.
2. Disconnect the accelerator pedal position (APP) sensor.
3. Turn ON the ignition, with engine OFF and measure the voltage from the 5-volt reference circuit of the APP sensor 1 to a good ground with a DMM.
- If the voltage measures 4.7-5.2 volts, replace the APP sensor.
4. With the DMM still connected to the 5-volt reference circuit, disconnect all other components connected to the 5-volt reference 3, one at a time.
- If voltage changes when one of the above components are disconnected, replace the component.
5. Test the 5-volt reference 3 circuits for a short to ground or a short to voltage.
- If no problem was found in the 5-volt reference 3 circuit , replace the ECM.

REPAIR INSTRUCTIONS

IMPORTANT: Always perform the Diagnostic Repair Verification after completing the diagnostic procedure.
- Accelerator Pedal with Position Sensor Replacement
- Manifold Absolute Pressure (MAP) Sensor Replacement
- Turbocharger Vane Position Sensor Replacement
- Exhaust Gas Recirculation (EGR) Valve Replacement
- Control Module References for ECM replacement, setup, and programming
