Fuel Tank Vent: Service and Repair

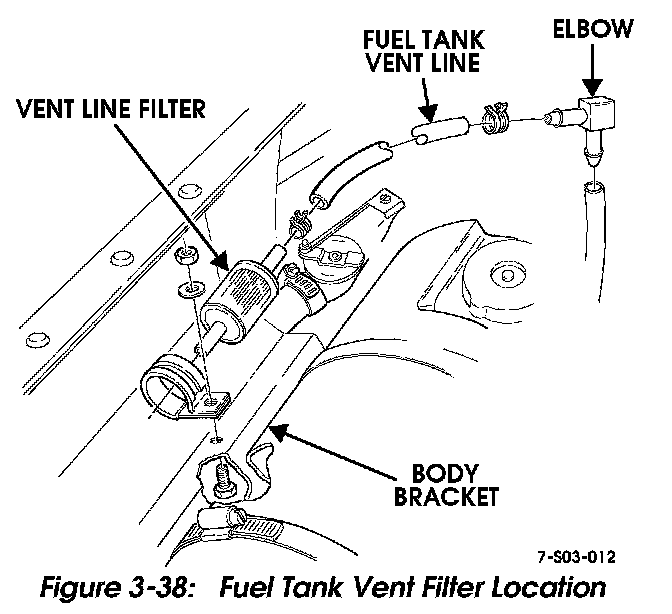

Figure 3-38: Fuel Tank Vent Filter Location:

FUEL TANK VENT FILTER REPLACEMENT

The fuel tank vent filter is located just above the surge tank at the passenger side of the engine compartment (Figure 3-37).

The filter is serviced as an assembly and should be replaced if restricted or damaged.

To replace the filter, remove the filter retaining clamp bolt, pull the filter out of the clamp, and disconnect it from the vent line. Be sure the replacement filter is properly secured in the clamp afterward. Also, use a new vent line clamp if the original is worn, or distorted.
