Fuse: Locations




Fuse Locations

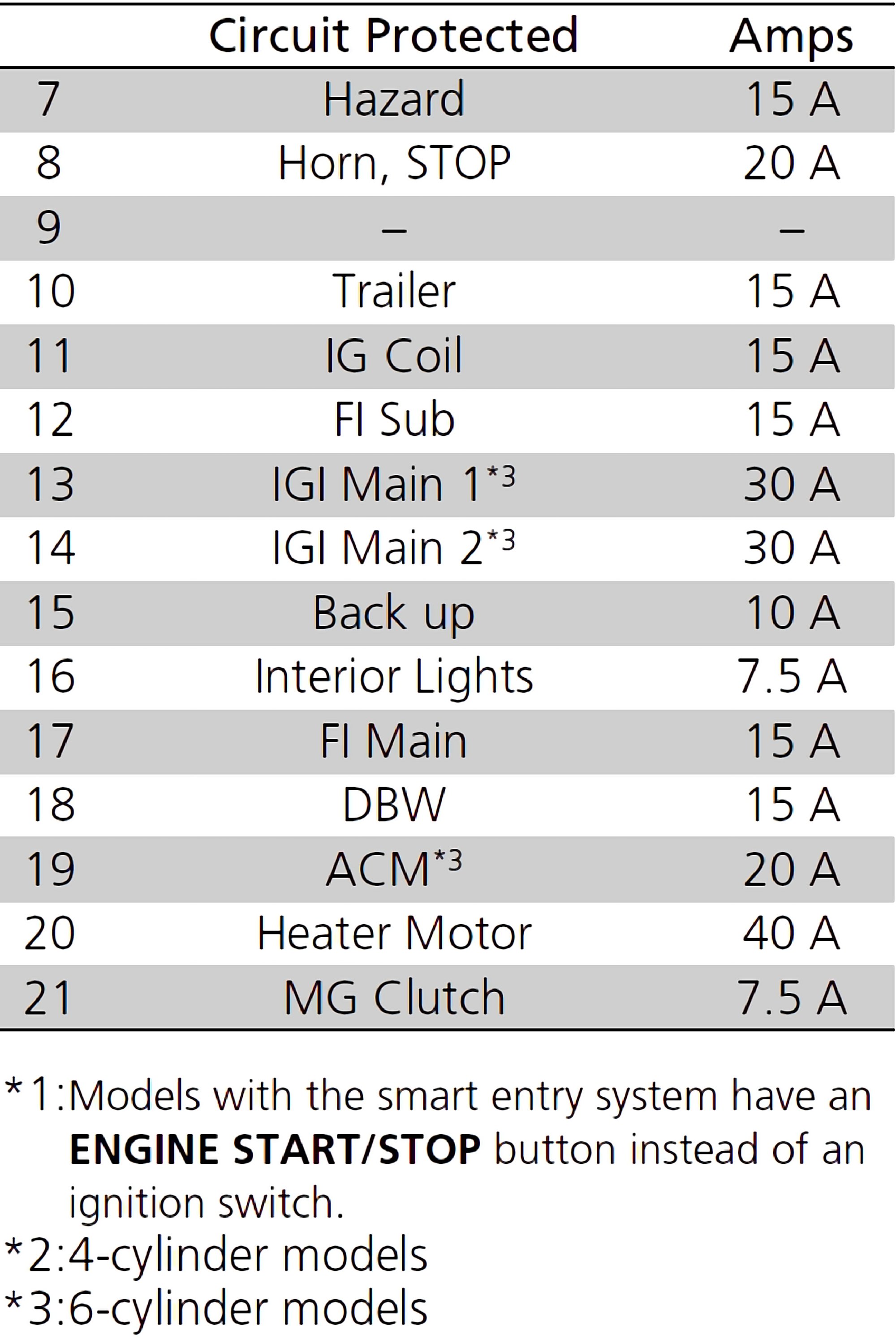

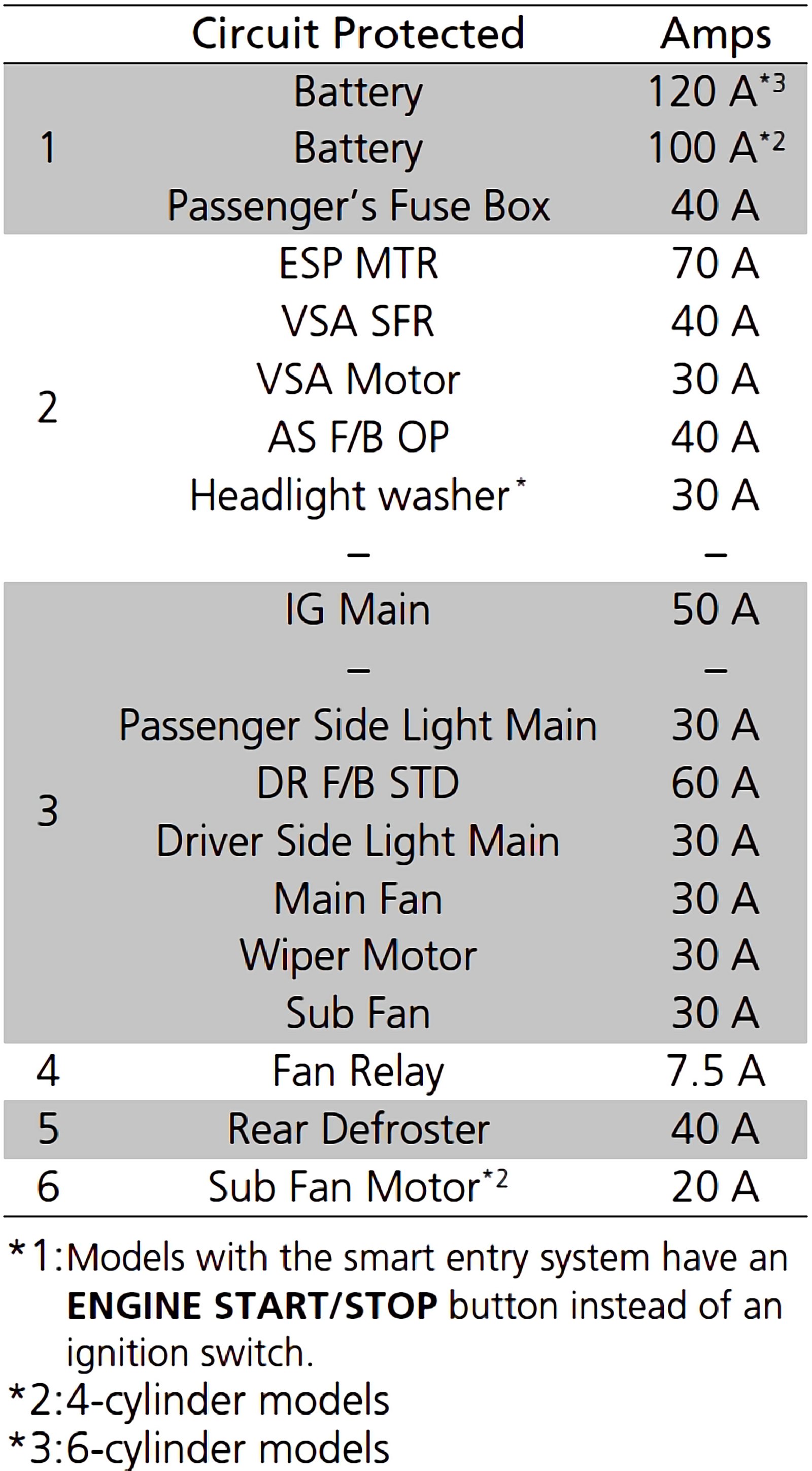

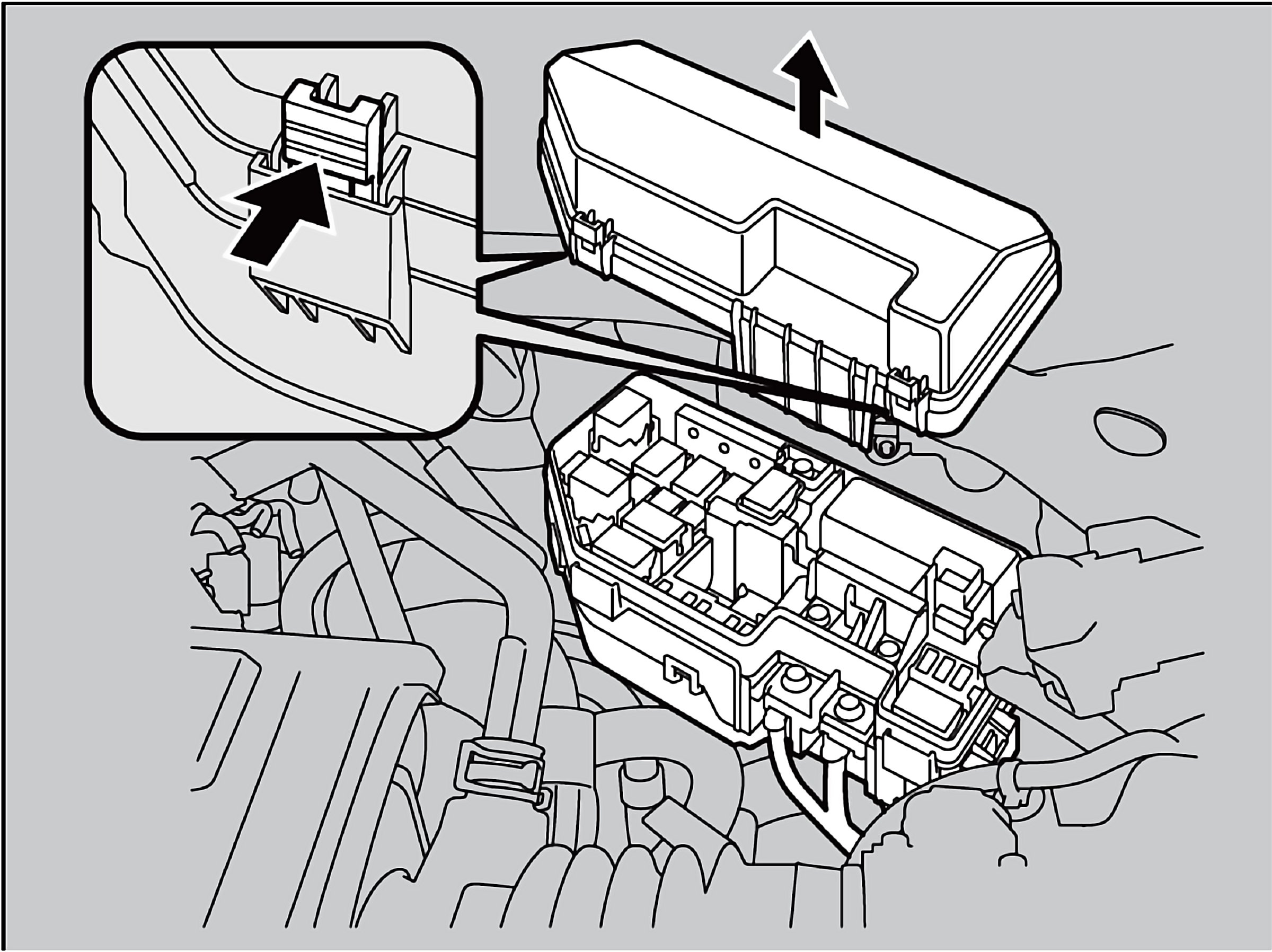

Engine Compartment Fuse Box

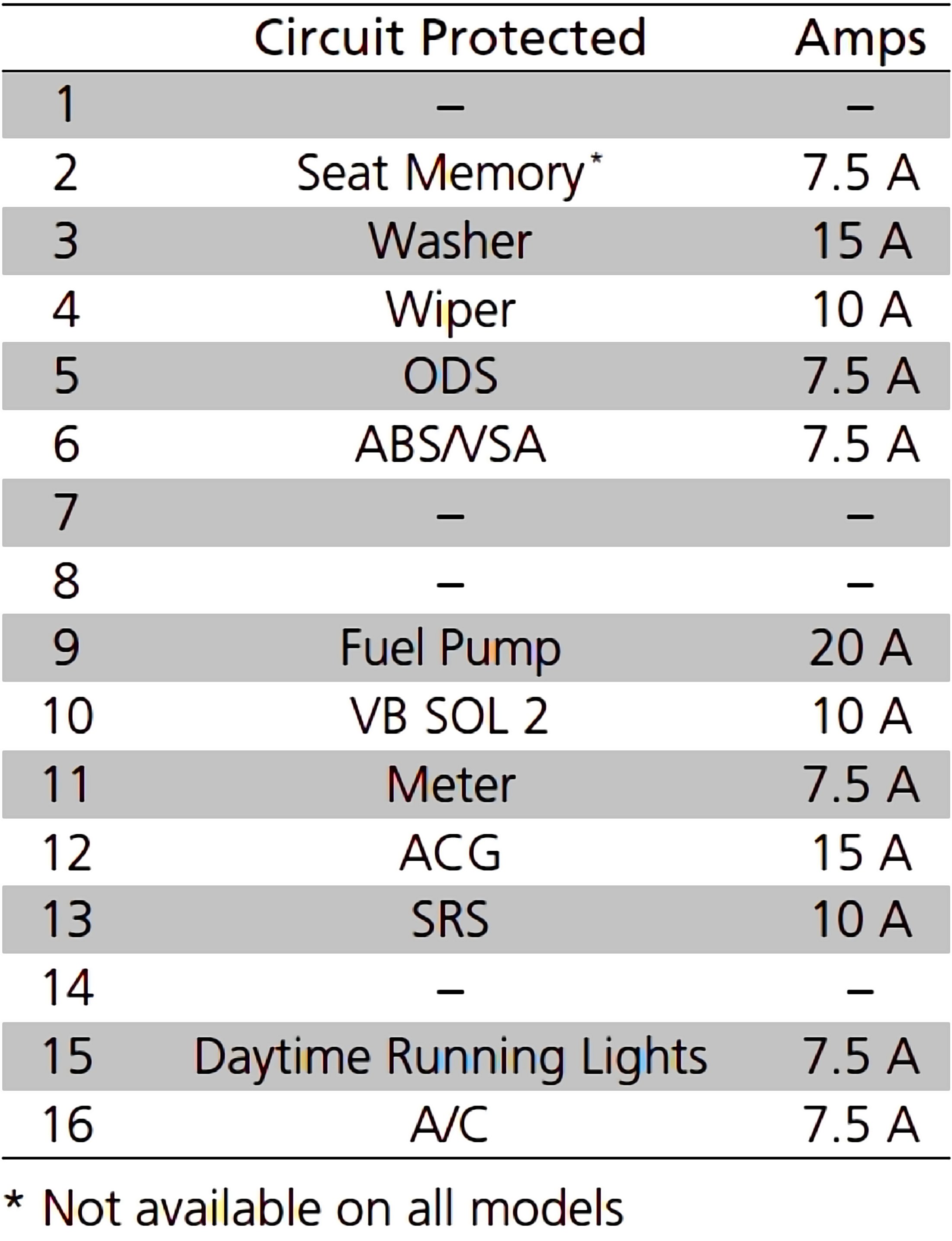

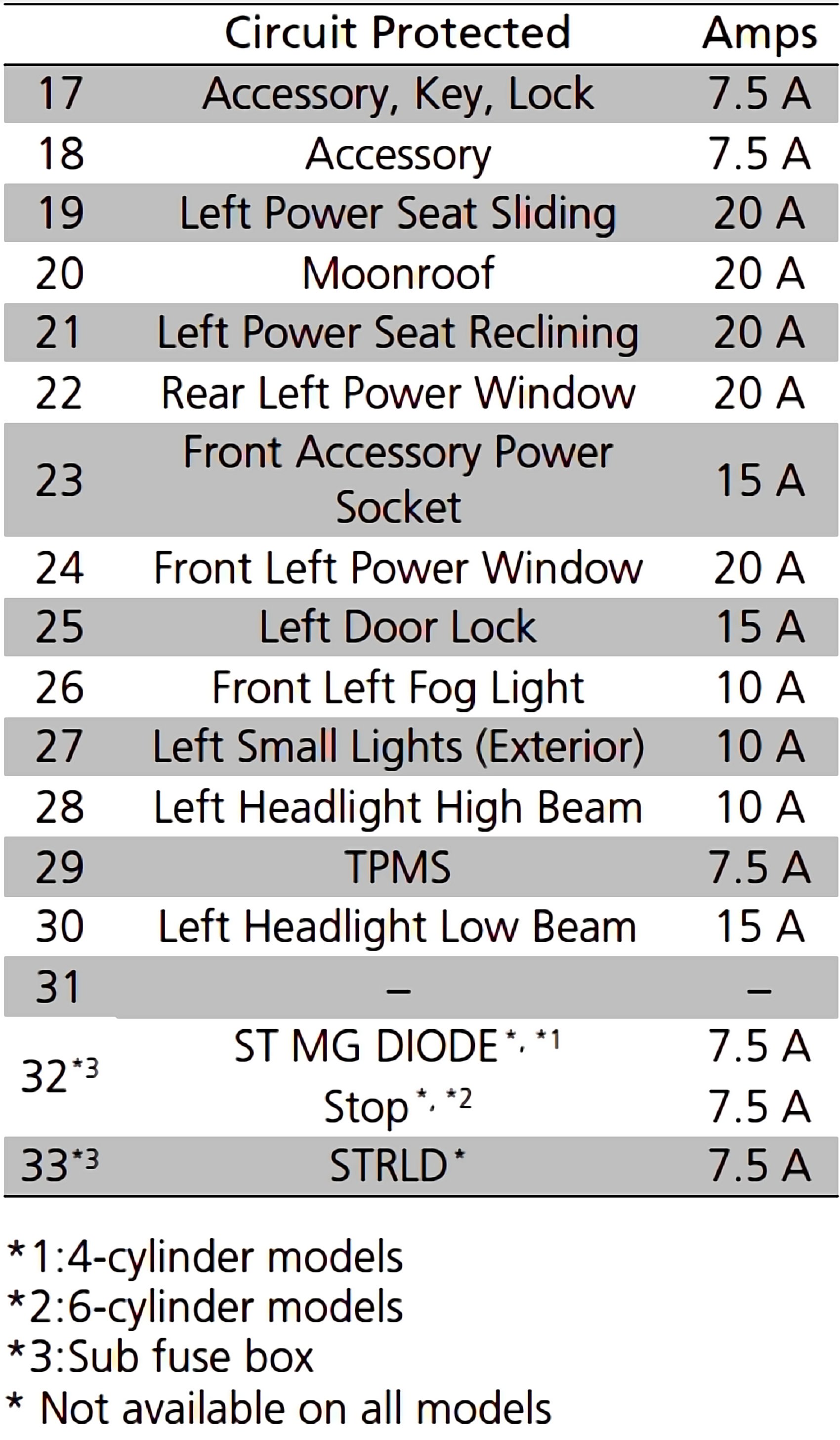

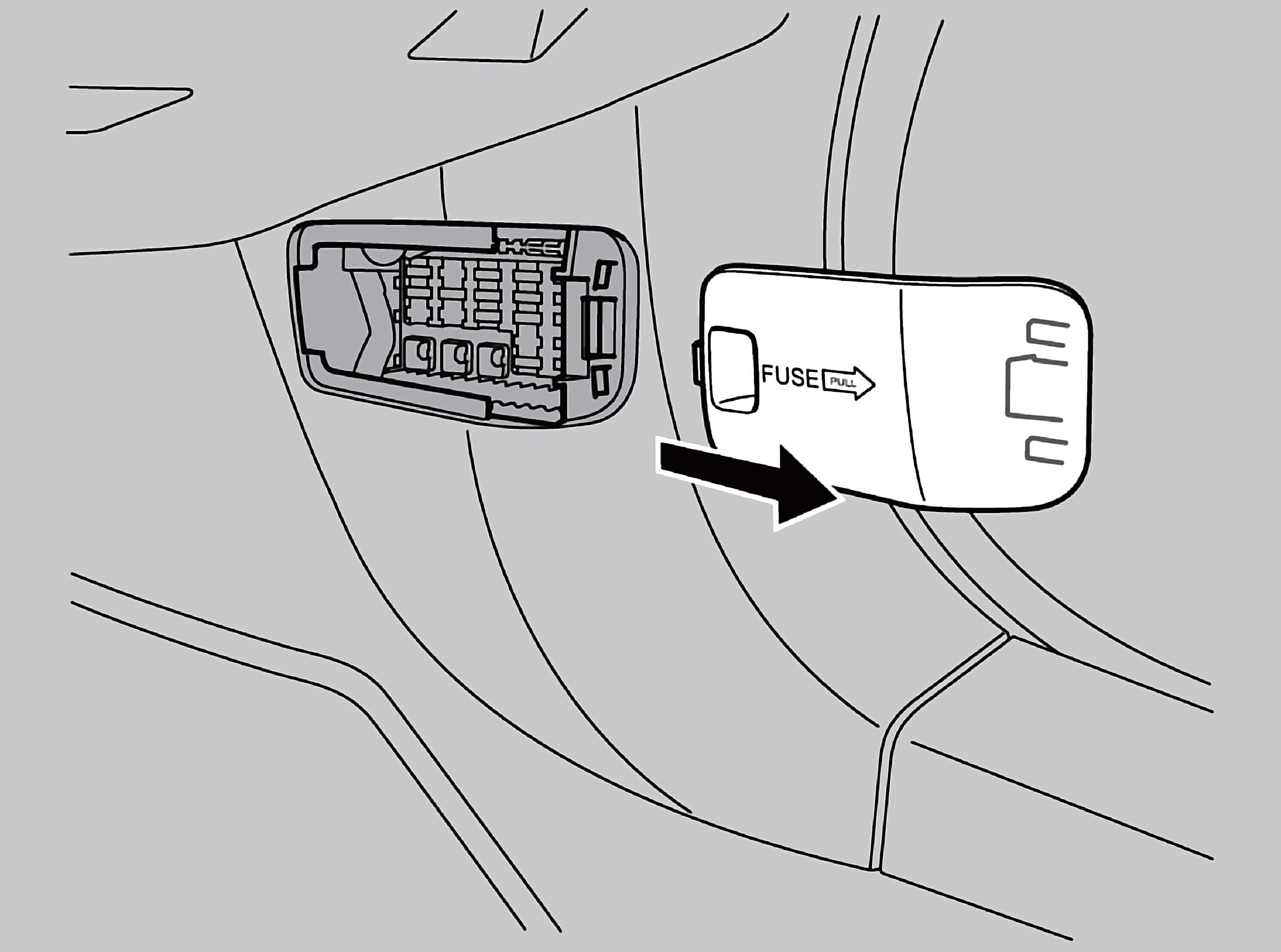

Interior Fuse Box - Driver Side

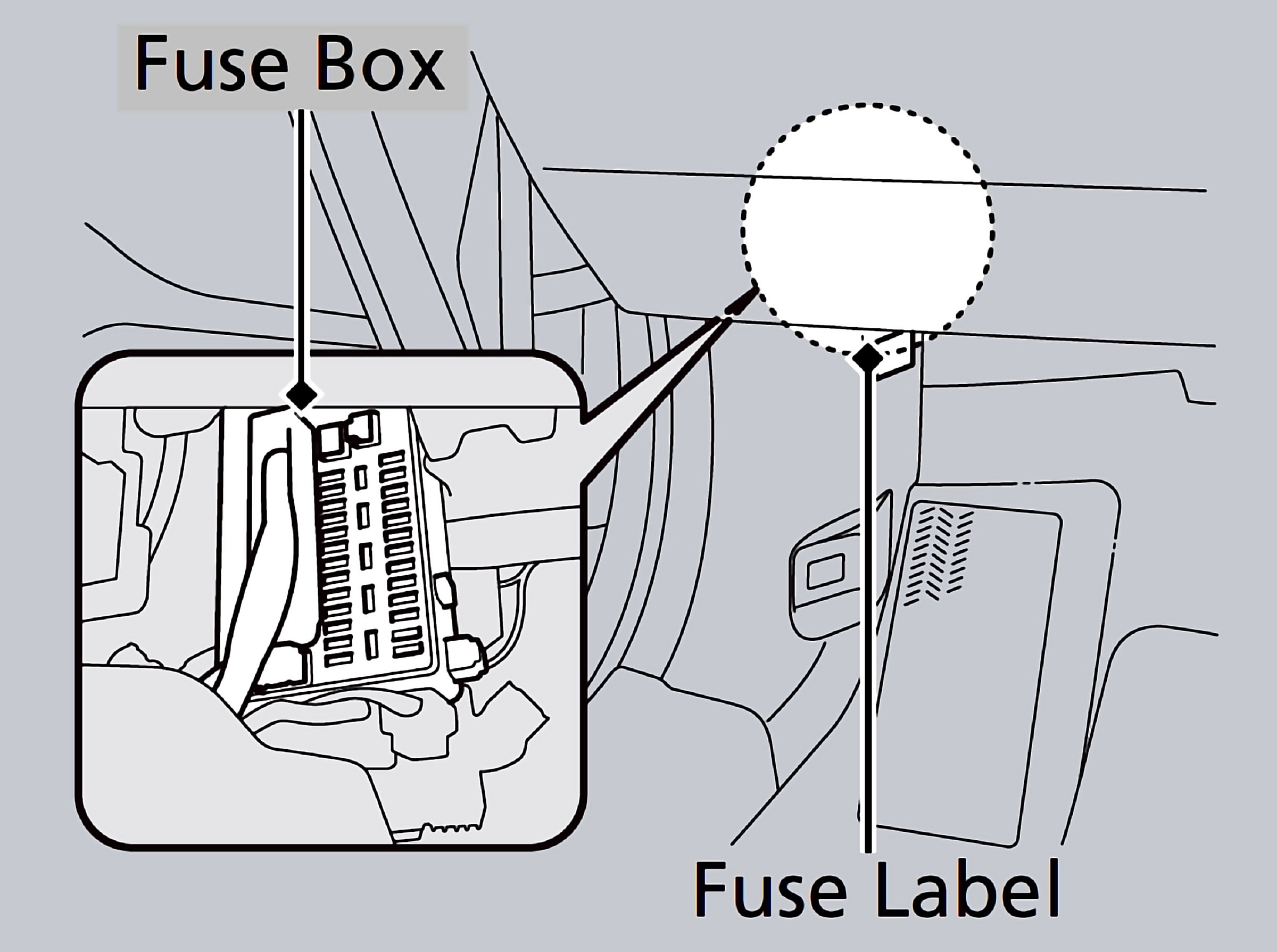

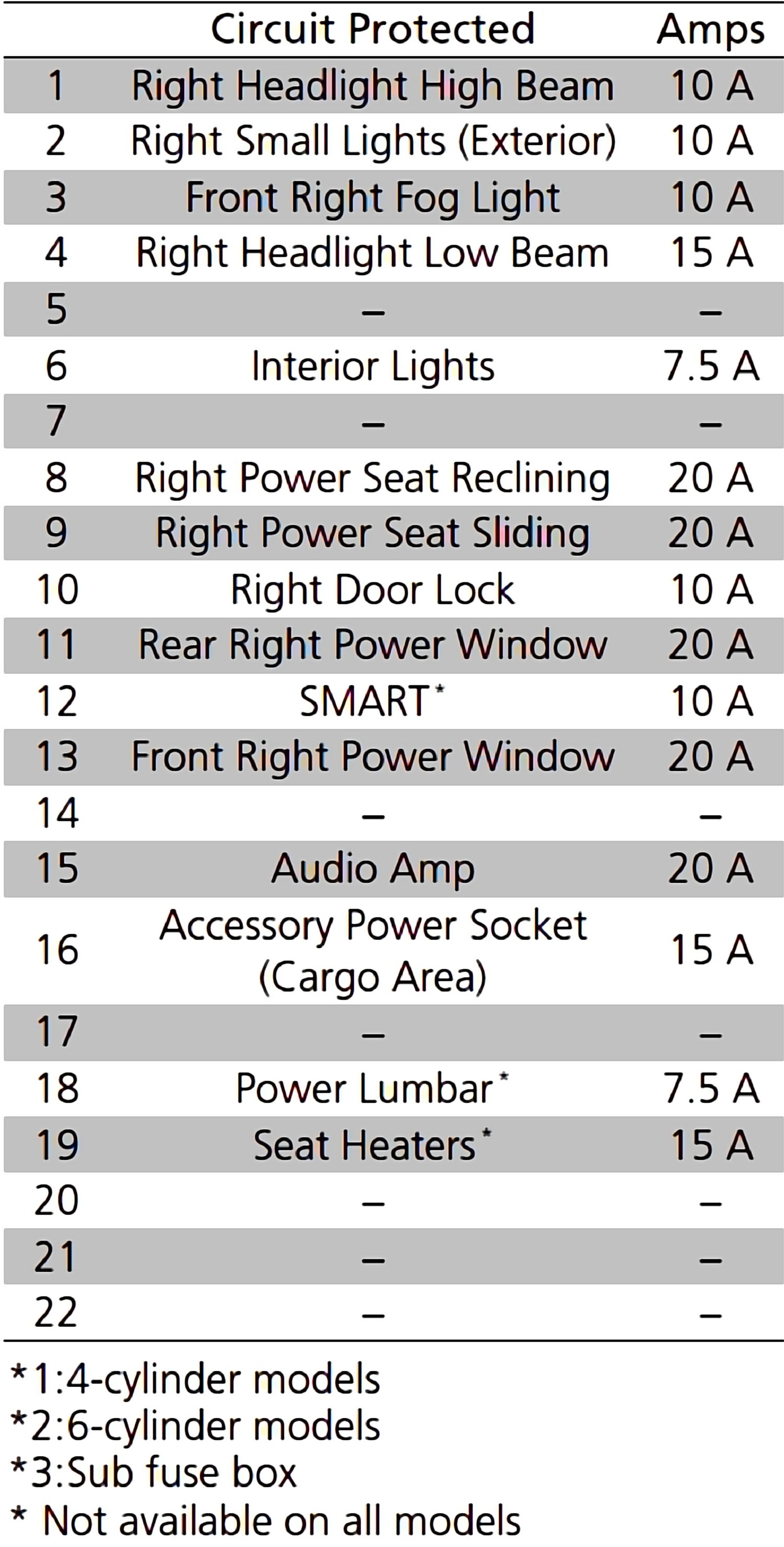

Interior Fuse Box - Passenger Side
