Paint: Application and ID

Color Chart Paint Specifications

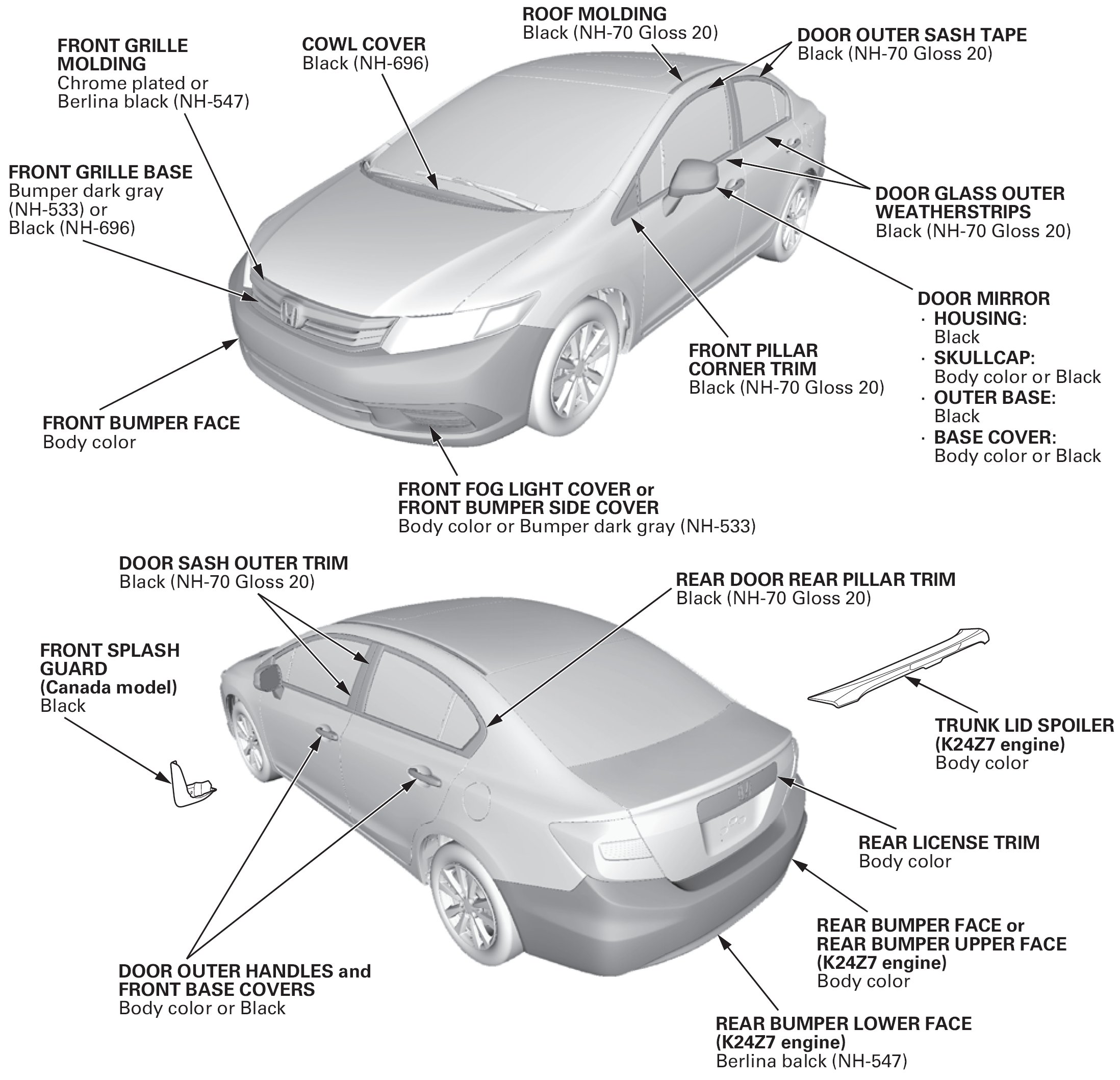

4-door

NOTE:
- For model year paint code information, refer to the appropriate Procedures.
- Apply black paint to the visible surface of the front wheelhouse and the rear wheelhouse after repairing and painting (vehicles painted with white or silver color).
- Apply black paint to the visible surface of the rear jack-up bracket and the rod after repairing and painting (except vehicles painted with black color).

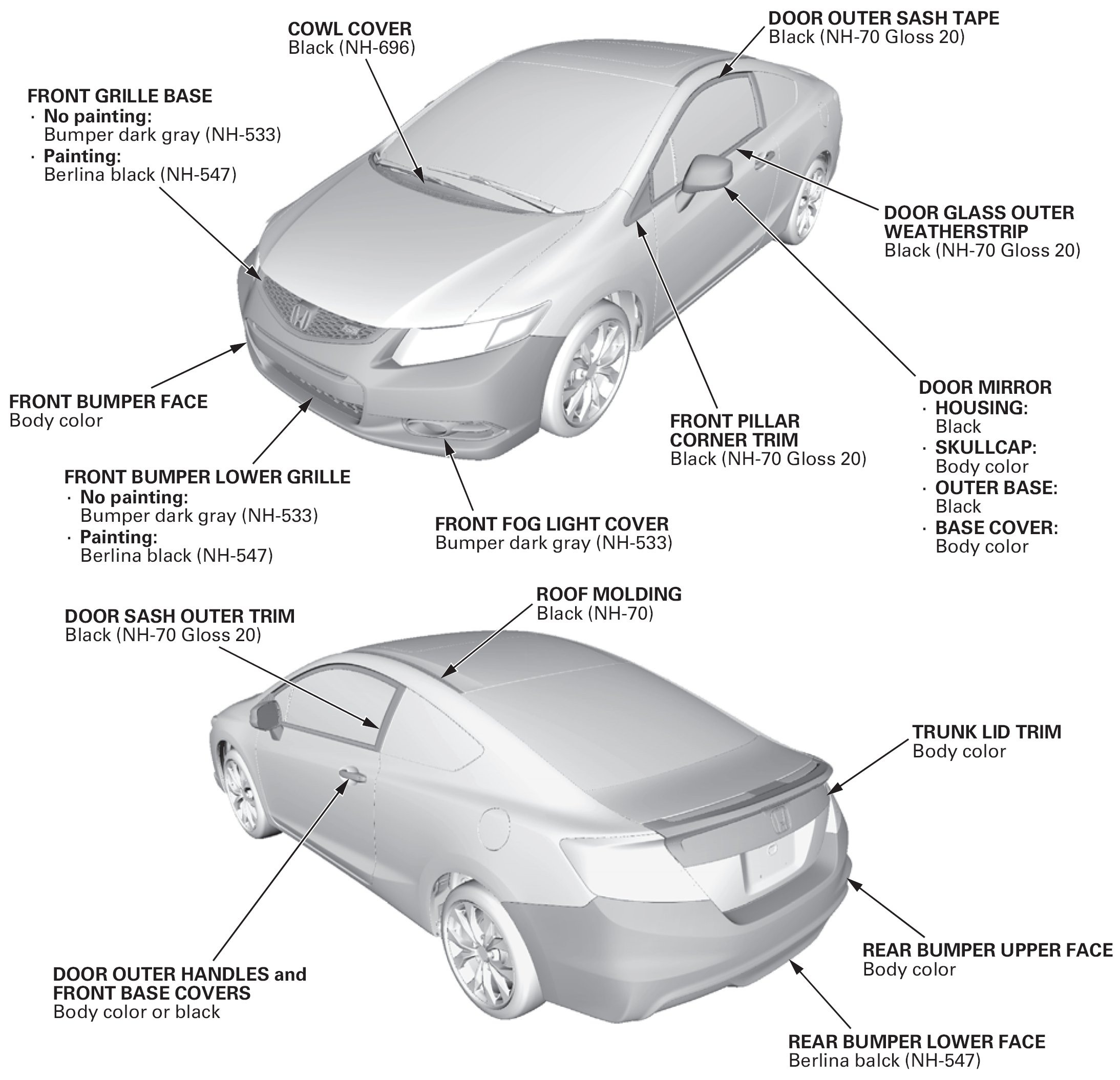

2-door

NOTE:
- For model year paint code information, refer to the appropriate Procedures.
- Apply black paint to the visible surface of the front wheelhouse and the rear wheelhouse after repairing and painting (vehicles painted with white or silver color).
- K24Z7 engine: Apply black paint to the visible surface of the rear jack-up bracket and the rod after repairing and painting (except vehicles painted with black color).
