Home >> Honda >> 2013 >> Accord Sedan L4-2.4L (K24W1) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment

Alignment





Wheel Alignment Specifications

Caster:





Camber:

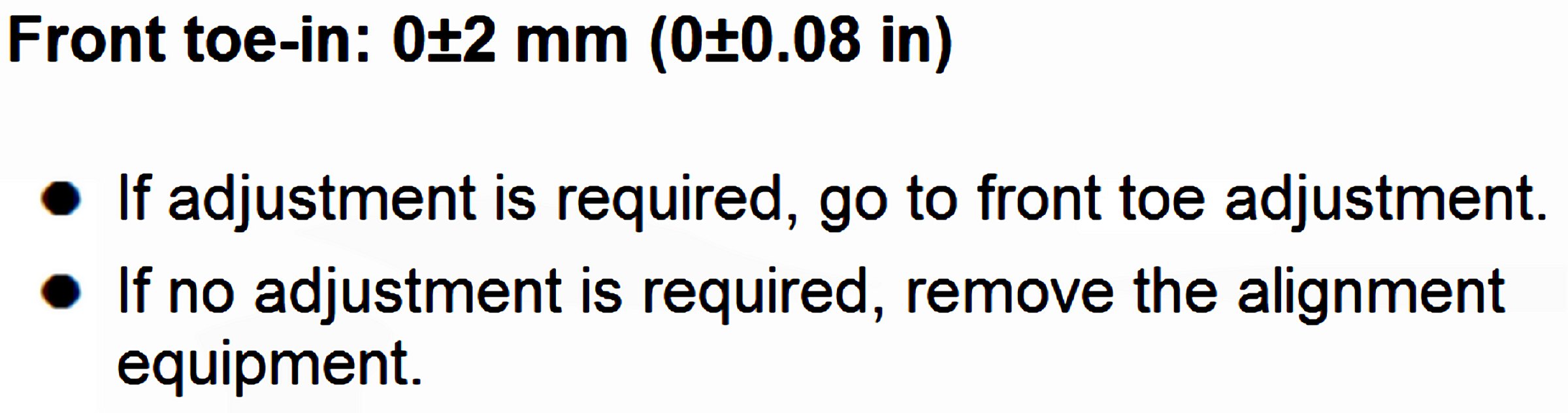

Front Toe-in:

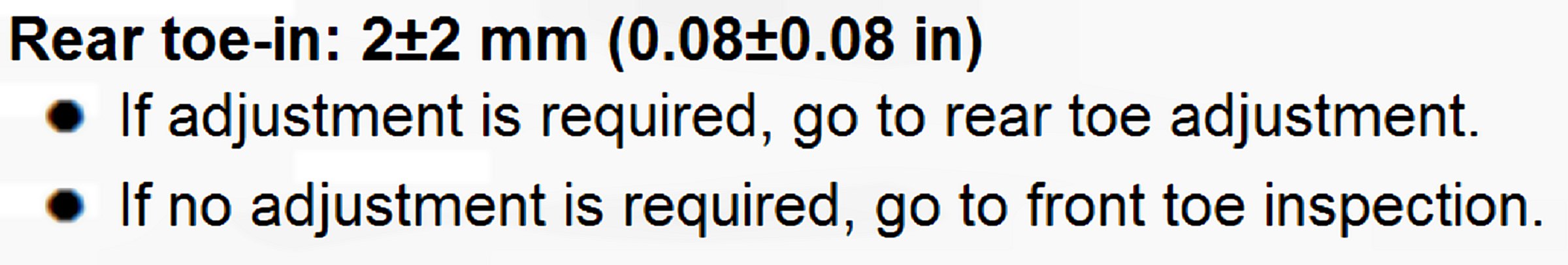

Rear Toe-in:





Turning Angle:
