Wiper/Washer Switch Test

Wiper/Washer Switch Test

1. Remove the windshield wiper/washer switch Service and Repair.

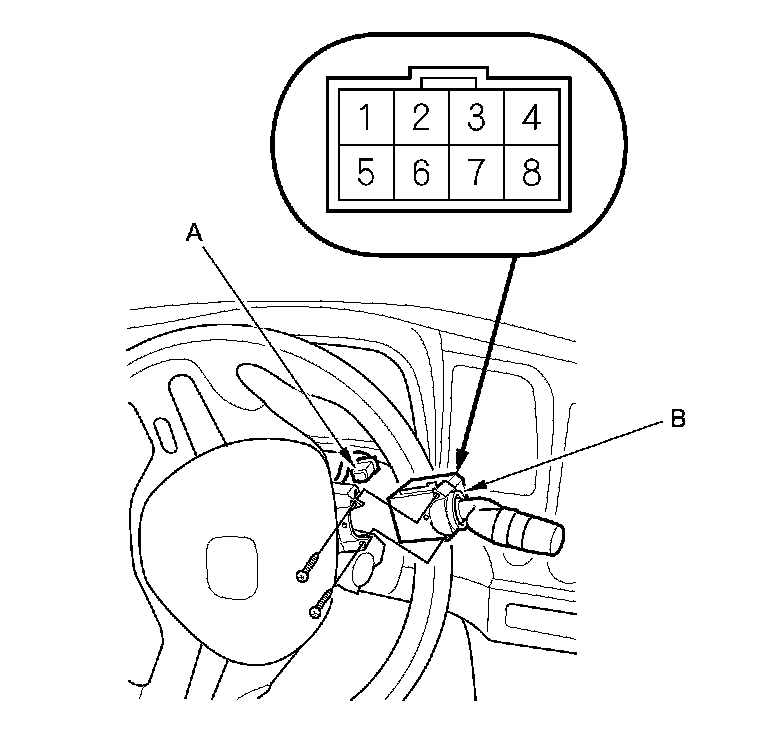

2. Disconnect the dashboard wire harness 8P connector (A) from the wiper/washer switch (B).

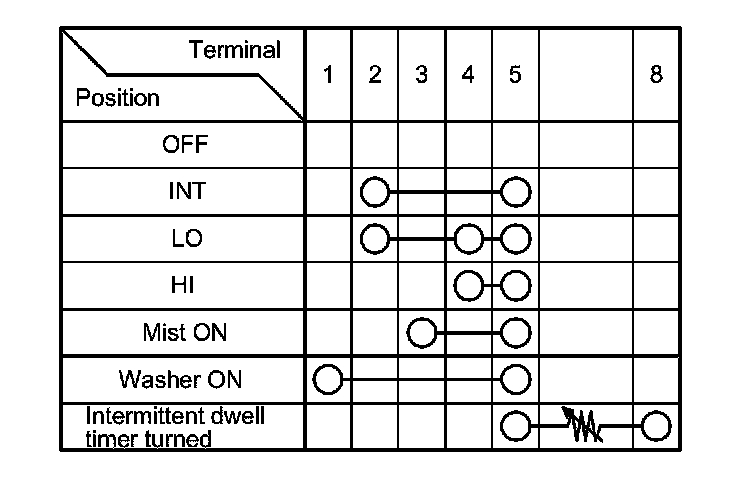

3. Check for continuity between the terminals in each switch position according to the table.





4. If the continuity is not as specified, replace the switch Service and Repair.
