Passenger's Power Window Switch Test/Replacement

Passenger's Power Window Switch Test/Replacement

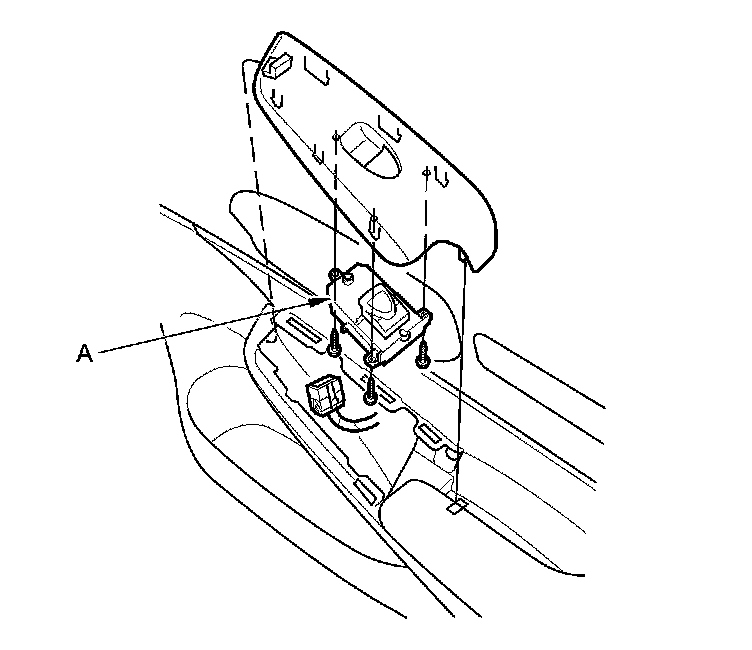

1. 4-door: Remove the passenger's power window switch (A).

2-door: Remove the passenger's power window switch Door Panel Removal/Installation (2-Door).

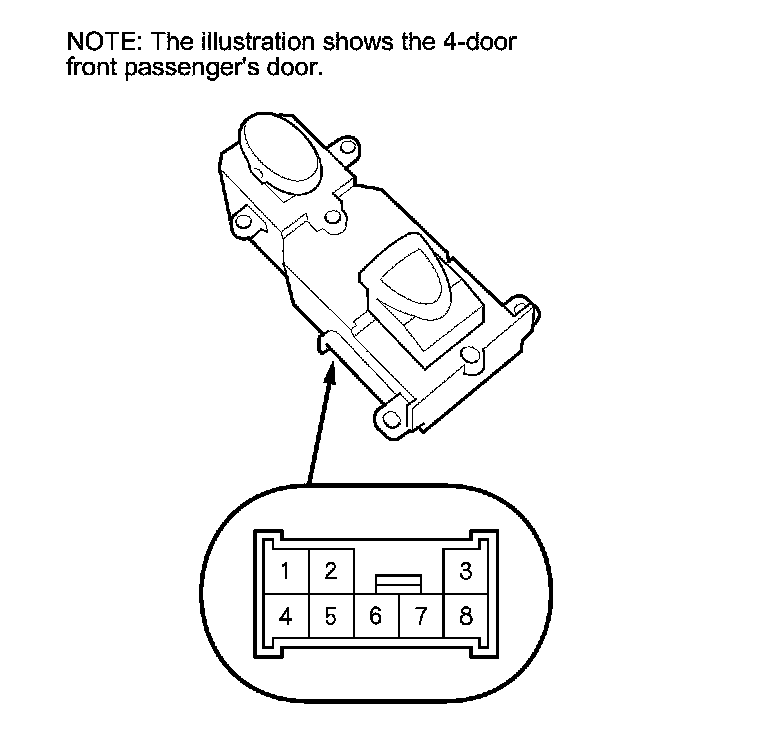

Front passenger's





Rear

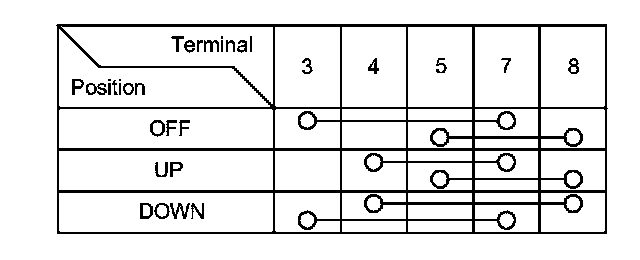

2. Check for continuity between the terminals in each switch position according to the table.





3. Connect battery power to terminal No. 4 and ground terminal No. 7 (or No. 8). The switch light should come on.

4. If the continuity or switch light tests is not as specified, remove the screws and replace the switch.

5. Install the switch in the reverse order of removal.
