Passenger's Power Window Motor Test

Passenger's Power Window Motor Test

1. Remove the door panel.

- 4-door Front Door Panel Removal/Installation (4-Door)
- 2-door Door Panel Removal/Installation (2-Door)

2. Disconnect the 6P connector (A) from the power window motor.

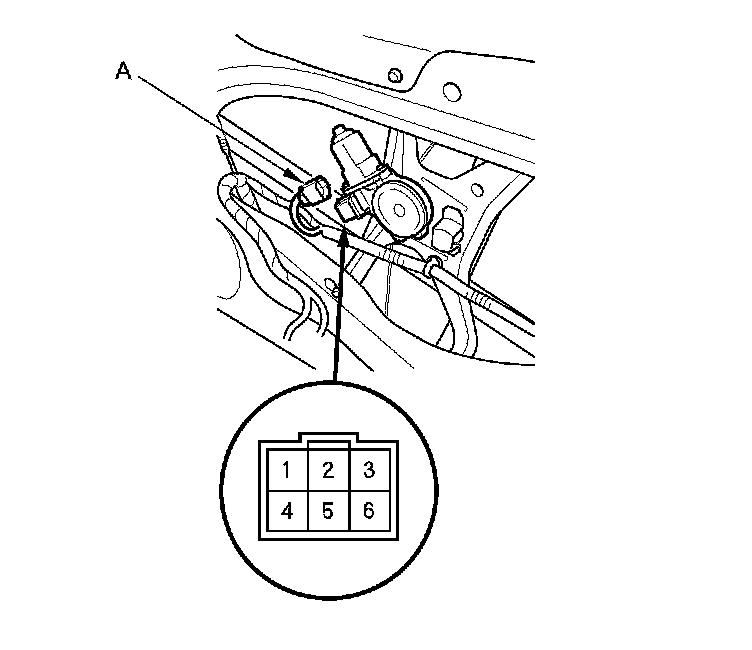

Front passenger's

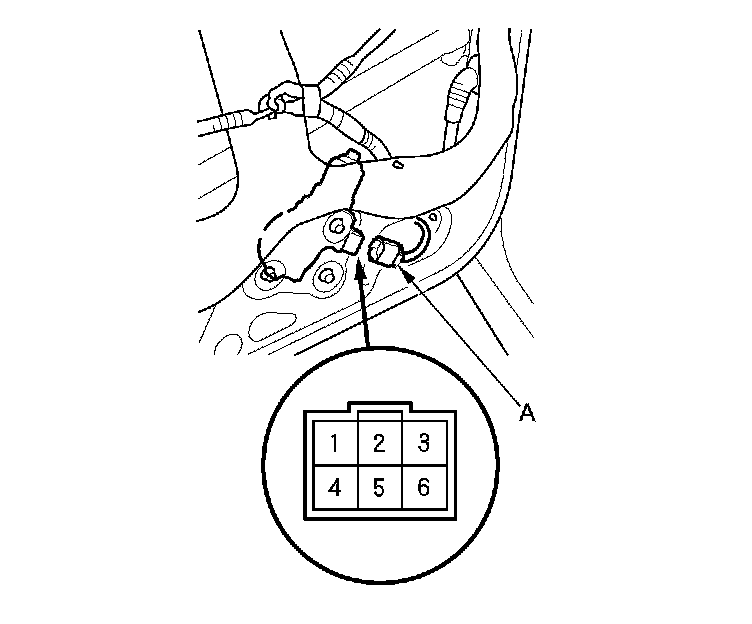

Rear (4-door)

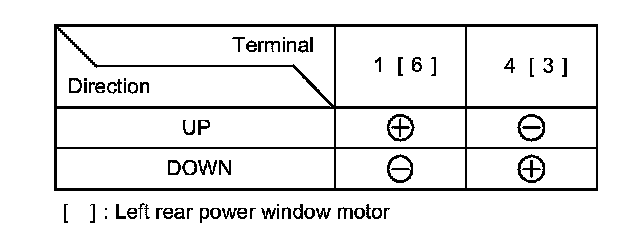

3. Test the motor by connecting battery power and ground according to the table. When the motor stops running, disconnect one lead immediately.





4. If the motor does not run or fails to run smoothly, the passenger's power window motor is faulty. Replace the passenger's door regulator Front Door Glass And Regulator Replacement.
