Power Window Master Switch Test/Replacement (4-Door)

Power Window Master Switch Test/Replacement

4-door

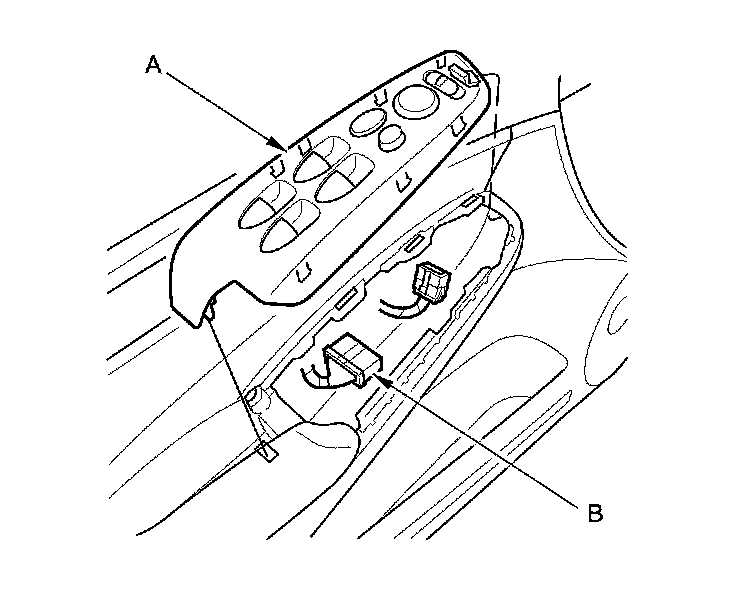

1. Remove the power window master switch panel (A).

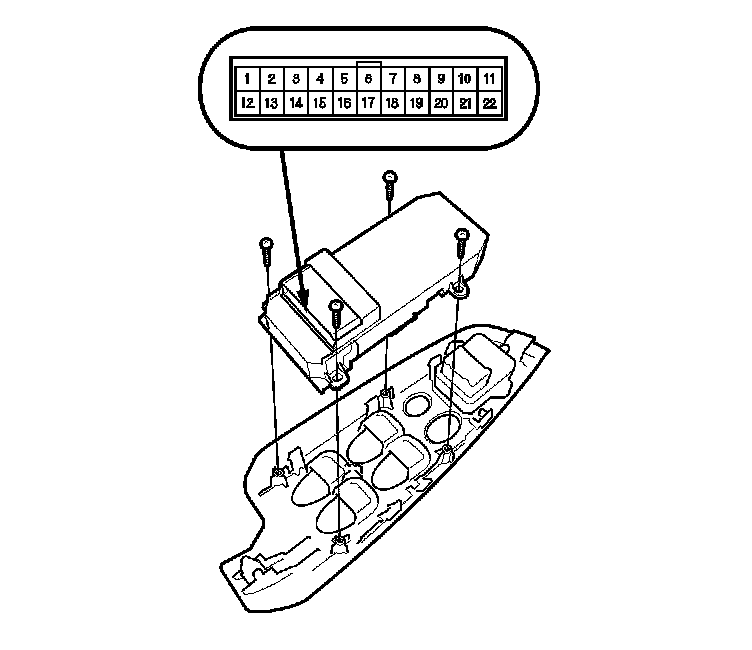

2. Disconnect the 22P connector (B) from the power window master switch.

3. Check for continuity between the terminals in each switch position according to the tables.

Driver's Switch (With AUTO UP/AUTO DOWN Function)

The driver's switch is combined with the control unit, so you cannot isolate the switch to test it. Instead, run the power window master switch input test procedures Power Window Master Switch Input Test (4-door). If the tests are normal, the driver's switch must be faulty. Replace the power window master switch.

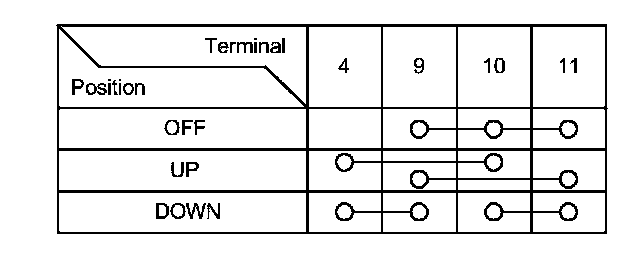

Driver's Switch (Without AUTO UP/AUTO DOWN Function)

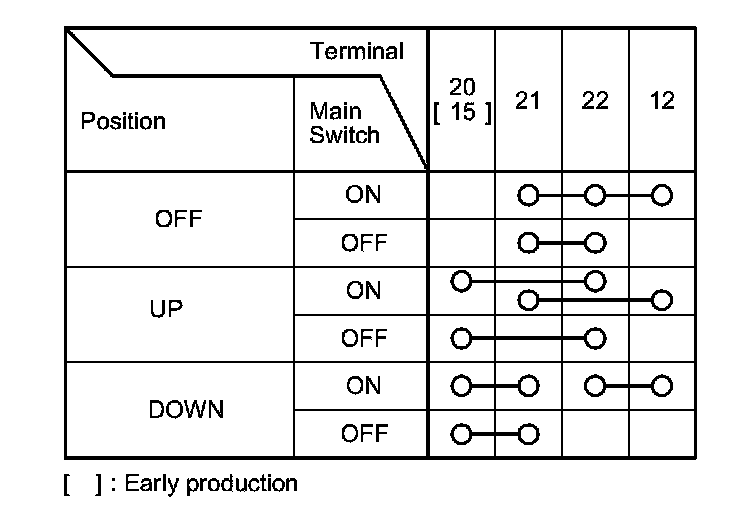

Front Passenger's Switch

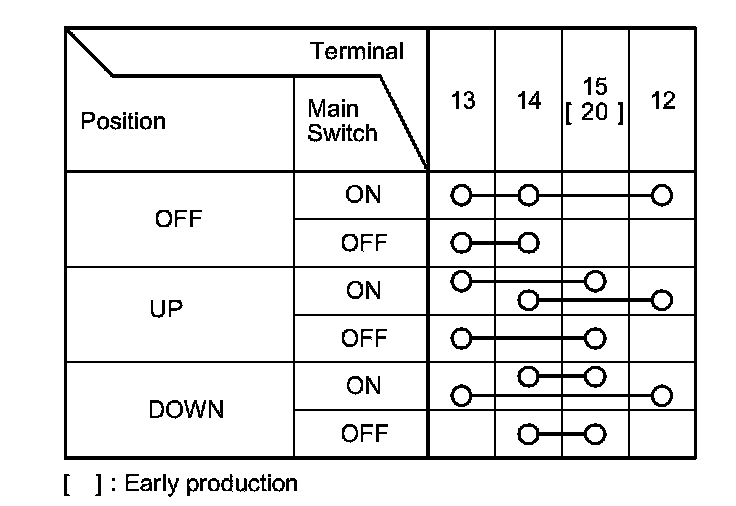

Left Rear Switch

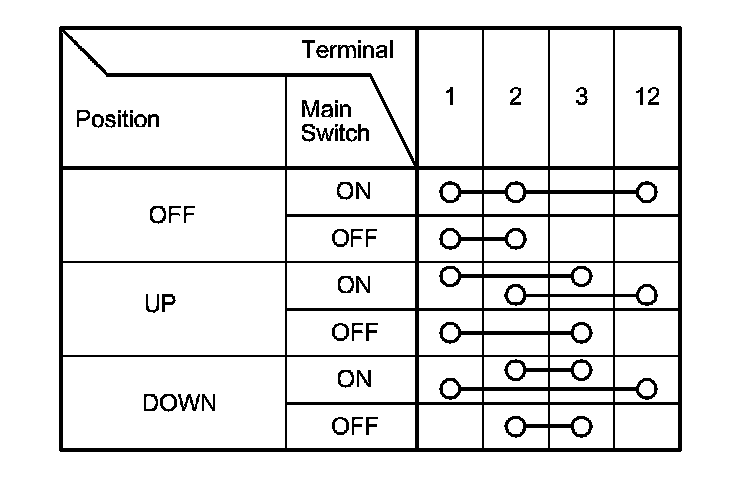

Right Rear Switch





4. If the continuity is not as specified, remove the screws and replace the switch.

5. Install the switch in the reverse order of removal.
