M/T Reverse Lockout Solenoid Disassembly/Reassembly (6MT)

M/T Reverse Lockout Solenoid Disassembly/Reassembly

1. Do the battery removal procedure Removal and Replacement.

2. Remove the air cleaner housing Service and Repair.

3. Remove the battery base.

4. Disconnect the output shaft (countershaft) speed sensor connector, the back-up light switch connector, and the reverse lockout solenoid connector.

5. Carefully remove the shift cables and the cable bracket together to avoid bending the shift cables.

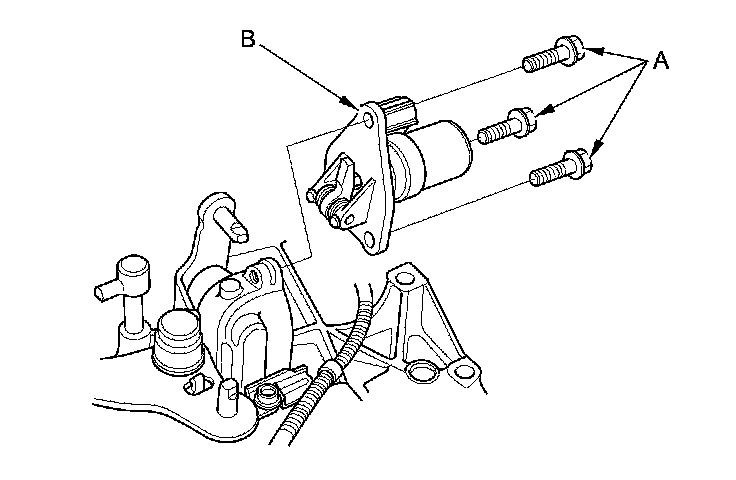

6. Remove the three bolts (A) and the reverse lockout solenoid (B).

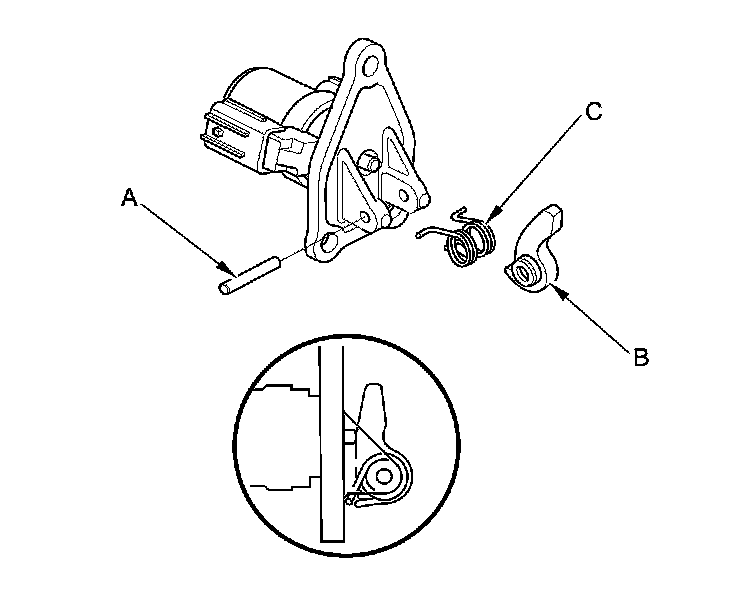

7. Remove the roller (A), the select lock return spring (C), and select lock cam B.





8. Install the components in the reverse order of removal.

9. Clean any dirt and oil from the sealing surface of the reverse lockout solenoid and the shift arm cover.

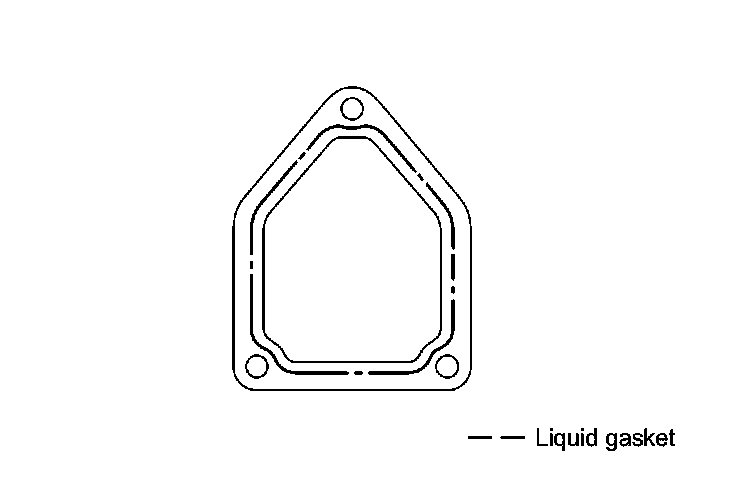

10. Apply liquid gasket, P/N 08717-0004, 08718-0001, 08718-0003, or 08718-0009 evenly to the shift arm cover mating surface of the reverse lockout solenoid. Install the component within 5 minutes of applying the liquid gasket.

NOTE:

- If apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.

- If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

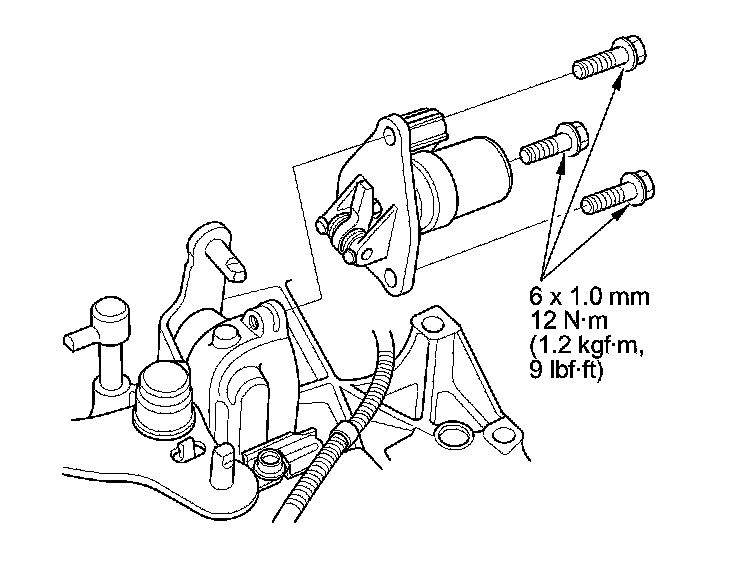

11. Install the reverse lockout solenoid.





12. Install the cable bracket and the shift cables.

13. Connect the reverse lockout solenoid connector, the back-up light switch connector, and the output shaft (countershaft) speed sensor connector.

14. Install the battery base.

15. Install the air cleaner housing Service and Repair.

16. Do the battery installation procedure Removal and Replacement.
