M/T Mainshaft Bearing And Oil Seal Replacement (6MT)

M/T Mainshaft Bearing and Oil Seal Replacement

Special Tools Required

- Adjustable Bearing Puller, 25-40 mm 07736-A01000B
- Bearing Driver Attachment, 42 x 47 mm 07746-0010300
- Driver Handle, 15 x 135L 07749-0010000
- Oil Seal Driver, 65 mm 07JAD-PL90100
- Slide Hammer 3/8''-16 UNF, commercially available

1. Remove the ball bearing (A) from the clutch housing (B) using the 25-40 mm adjustable bearing puller (C) and a commercially available 3/8''-16 UNF slide hammer (D).






2. Remove the oil seal (A) from the clutch housing.

NOTE: Be careful not to damage the clutch housing while removing the oil seal.






3. Drive in a new oil seal (A) about 0.6-1.0 mm (0.024- 0.039 in) below the surface of the clutch housing (B) using the 15 x 135L driver handle (C) and the 42 x 47 mm bearing driver attachment (D).

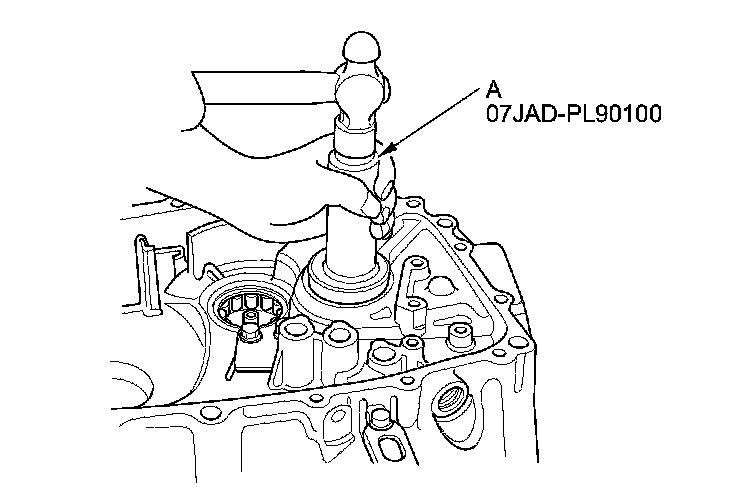

4. Drive in a new ball bearing from the transmission side using the 65 mm oil seal driver (A).
