Torque Specifications

Torque Specifications

NOTE:
Refer to the service data for the precautions and complete procedures.
Refer to the service data for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the service data procedures closely for torque, sequence, and special steps.

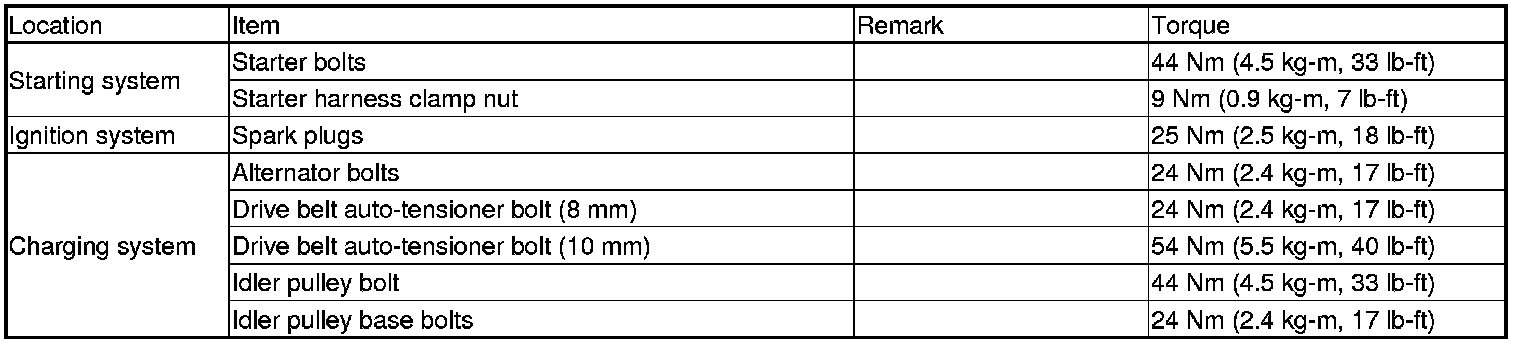

Engine Electrical (R18A1)

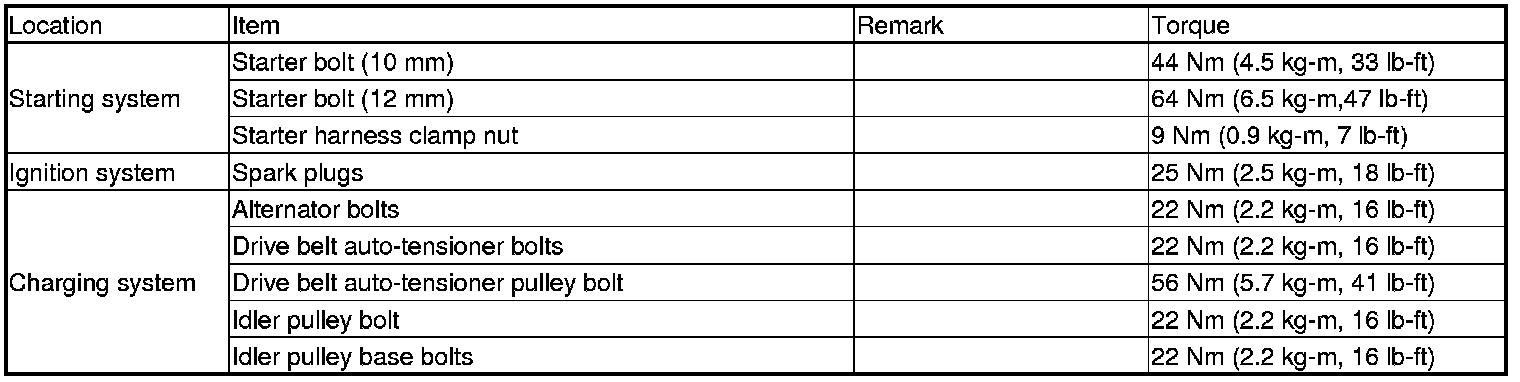

Engine Electrical (K20Z3)





Engine Mechanical (R18A1)





Torque Specifications

NOTE:
Refer to the service data for the precautions and complete procedures.
Refer to the service data for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the service data procedures closely for torque, sequence, and special steps.

Engine Mechanical (K20Z3)





Engine Cooling (R18A1)





Engine Cooling (K20Z3)





Fuel and Emissions





Clutch





Manual Transmission





Torque Specifications

NOTE:
Refer to the service data for the precautions and complete procedures.
Refer to the service data for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the service data procedures closely for torque, sequence, and special steps.


Automatic Transmission





Driveline/Axle





Steering





Suspension





Brakes





Torque Specifications

NOTE:
Refer to the service data for the precautions and complete procedures.
Refer to the service data for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the service data procedures closely for torque, sequence, and special steps.


Body





Heating, Ventilation, and Air Conditioning





Body Electrical
