Torque Specifications

Torque Specifications

Torque Specifications

NOTE:
Refer to the service data for the precautions and complete procedures.
Refer to the service data for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the service data procedures closely for torque, sequence, and special steps.

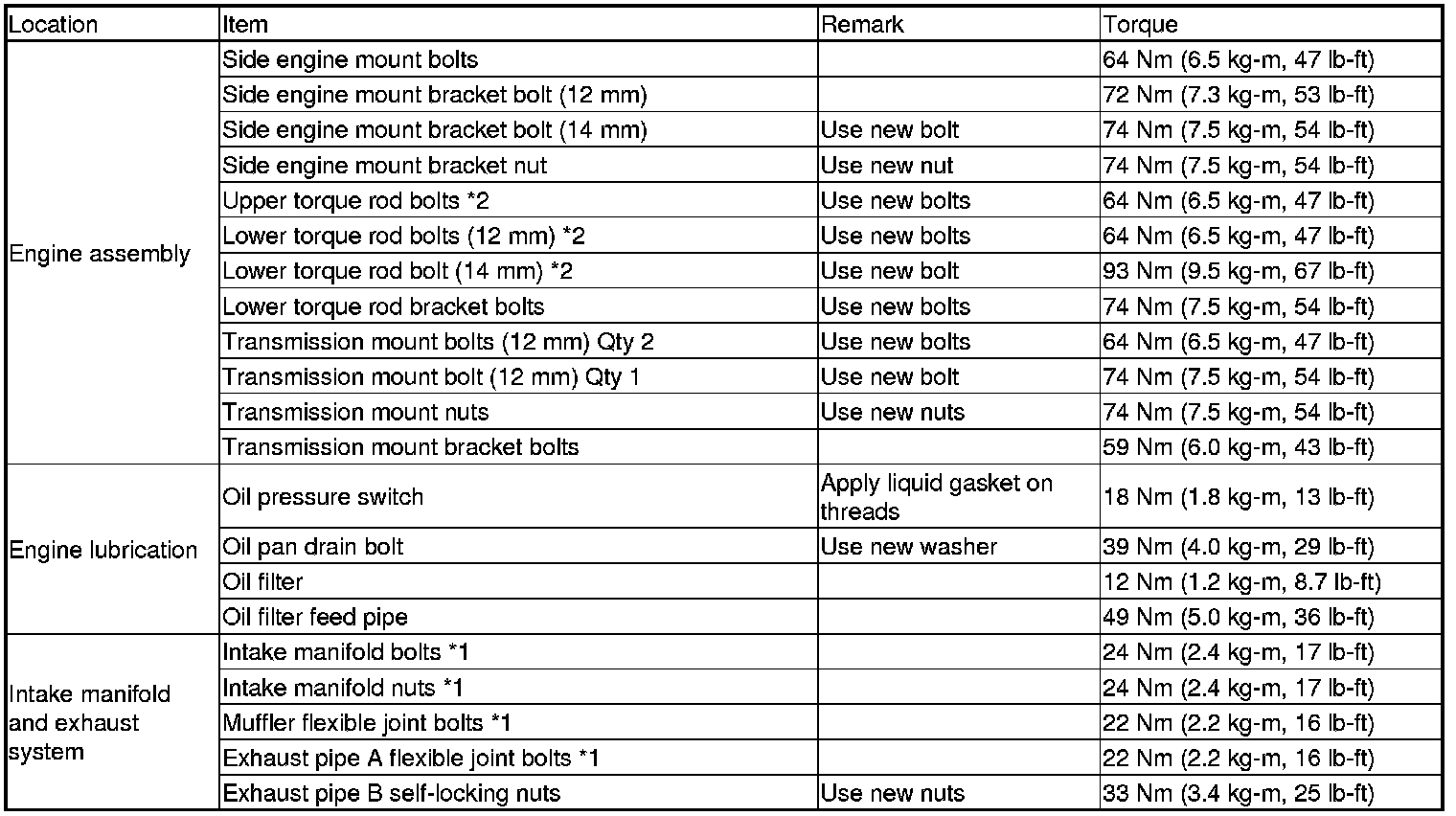

Engine Mechanical (R18A1)





Torque Specifications

NOTE:
Refer to the service data for the precautions and complete procedures.
Refer to the service data for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the service data procedures closely for torque, sequence, and special steps.

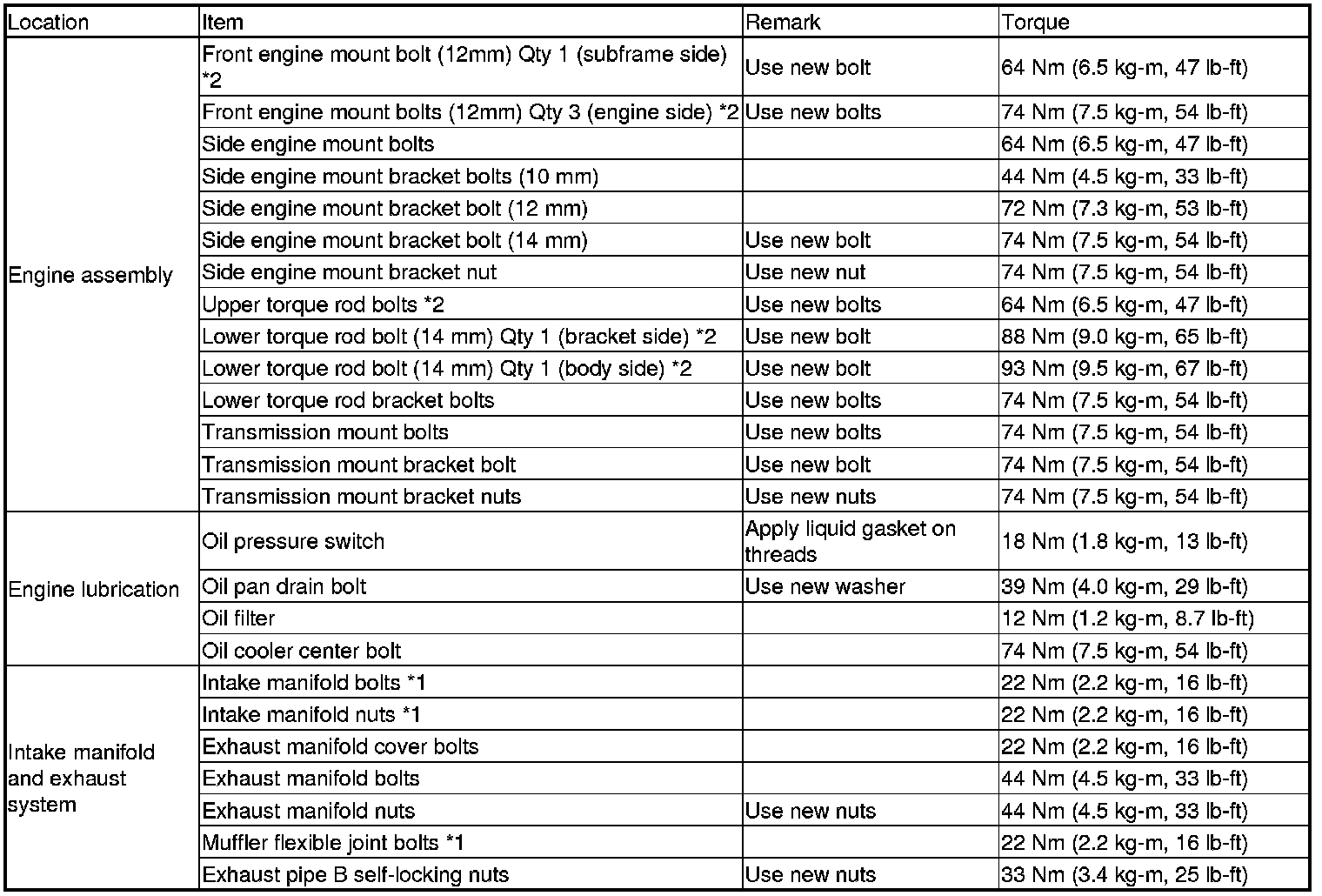

Engine Mechanical (K20Z3)
