Home >> Honda >> 2011 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> Connecting Rod, Engine >> Tightening Torque And Sequence

Tightening Torque And Sequence

Torque the connecting rod bolts to 29 Nm (3.0 kg-m, 22 lb-ft)

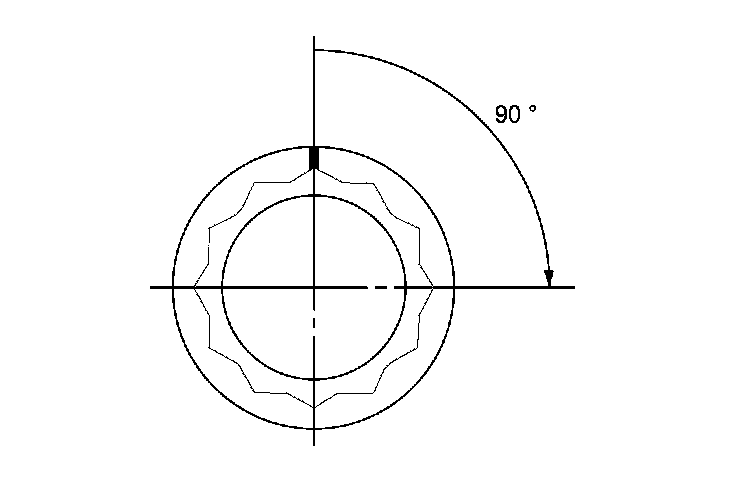

Tighten the connecting rod bolts an additional 90 °
