Clutch Pedal Position Switch Test

Clutch Pedal Position Switch Test

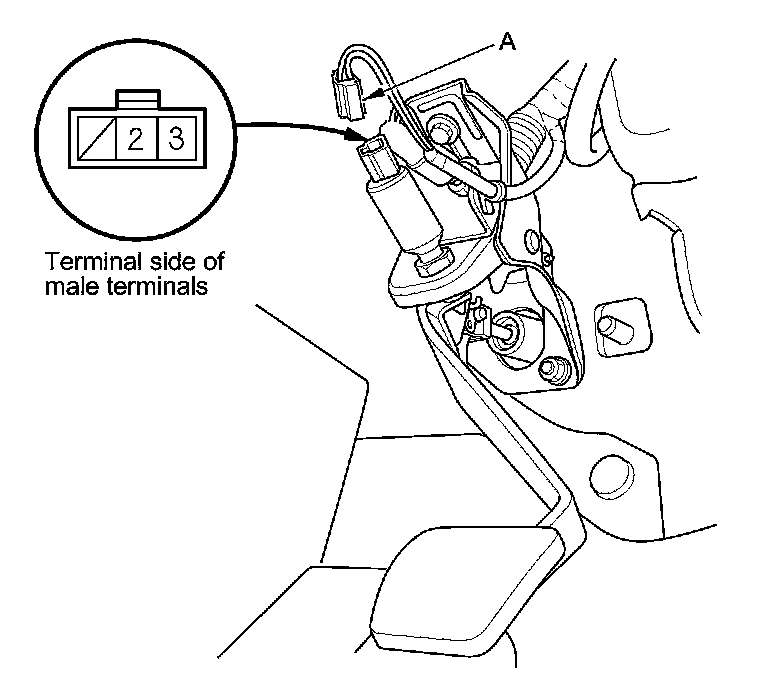

1. Disconnect the clutch pedal position switch 3P connector (A).

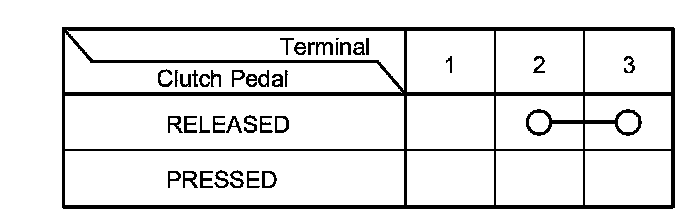

2. Check for continuity between the terminals according to the table.

- If the continuity is not as specified, replace the clutch pedal position switch Clutch Pedal Position Switch Replacement, and adjust the pedal height Adjustments.
- If OK, connect the clutch pedal position switch 3P connector.
