Side Impact Sensor (Second) Replacement

Side Impact Sensor (Second) Replacement

Removal

1. Do the battery terminal disconnection procedure Procedures, then wait at least 3 minutes before starting work.

2. 4-door: Remove the rear seat cushion and seat side bolster.

3. 2-door: Remove the rear side trim panel Interior Trim Removal/Installation - Rear Side Area (2-Door).

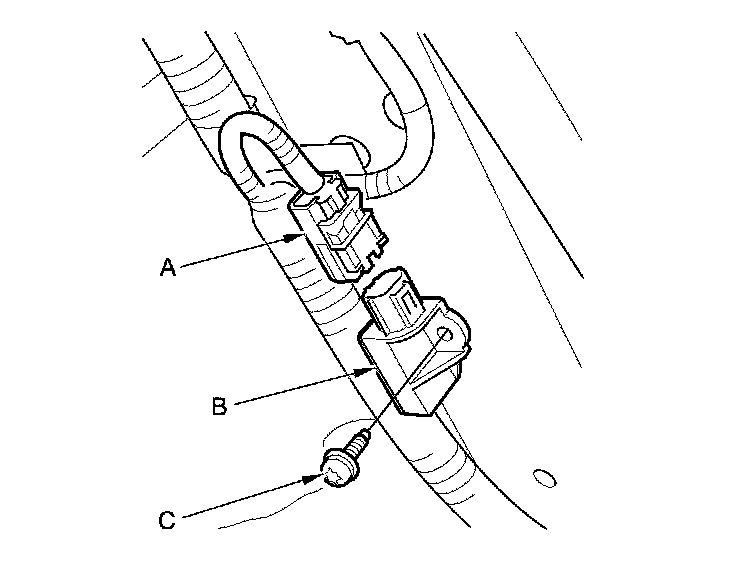

4. Disconnect the floor wire harness 2P connector (A) from the side impact sensor (second) (B).





5. Remove the TORX bolt (C) using a TORX T30 bit, then remove the side impact sensor (second).

Installation

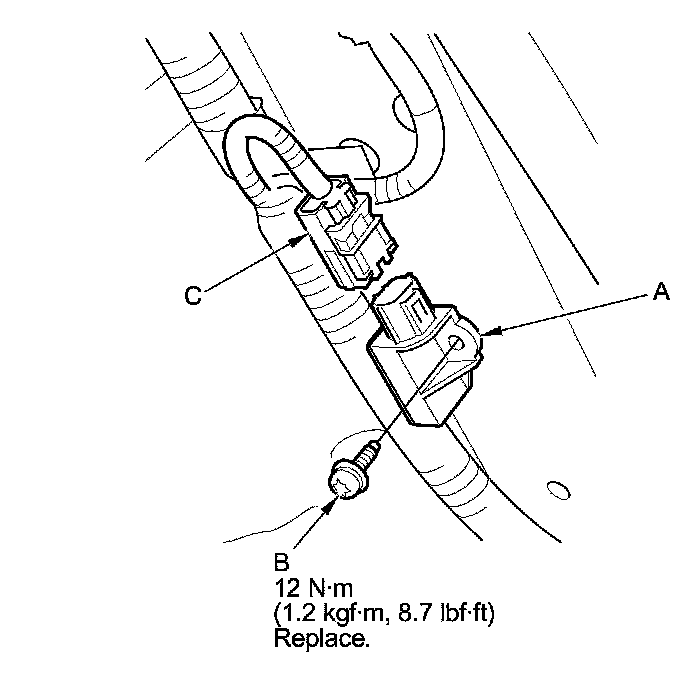

1. Install the side impact sensor (second) (A) with the new TORX bolt (B), using a TORX T30 bit.





2. Connect the floor wire harness 2P connector (C) to the side impact sensor (second).

3. Do the battery terminal reconnection procedure Procedures.

4. Clear any DTCs.

5. Confirm proper SRS operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.

6. Reinstall all removed parts.
